Specifications
Wet Bill Mill:1. Established in 1958
2. ISO9001:2008
3. National Torch Project
4. Export to 20 countries
Wet Bill Mill:

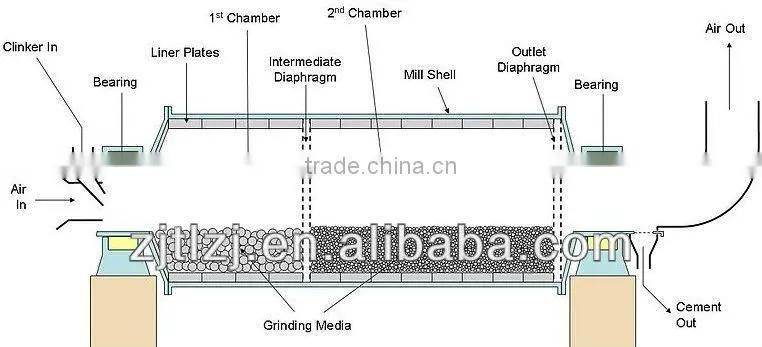

Ball mills are used extensively in the mechanical alloying process in which they are not only used for grinding but for cold welding as well, with the purpose of producing alloys from powders.The ball mill is a key piece of equipment for grinding crushed materials.It can grind various ores and other materials either wet or dry.
Wet Bill Mill main features and advantages:
1) Friction reducing
2) With excellent processing capacity
3) To improve working efficiently
Main technical parameters of Wet Bill Mill:
| Model | Speed of mill (r/min) | Weight of ball (t) | Size of feed opening (mm) | size of outputting feed (mm) | Production (t/h) | Power (kW) | Weight (t) |
| Φ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Φ900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
| Φ1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
| Φ1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
| Φ1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
| Φ1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
| Φ2200×7500 | 21 | 33 | ≤25 | 0.075-0.4 | 16-29 | 380 | 56 |
| Φ2200×9500 | 21 | 38 | ≤25 | 0.074-0.4 | 18-35 | 475 | 62 |
Since year 1958,company is equipped with more than 100 sets of heavy machinery manufacturing equipments,such as Φ5.3×18m(The lifting capacity is 200t)digital control horizontal lathe, large heat treatment of cylinder, Φ8.0m heavy hobbing machine, etc.
Our Heavy Equipment:
Qualification and Honors:
Office Buliding:
Established in year 1958, Why so Professional it is !
1). A member of China Building Material Machinery Industry Association
2). A member of equipments service network of China Phosphate Fertilizer and Sulphuric Acid Industry
3). Till now we have 52-year history, both for domestic and overseas
4). Our City of Tongxiang's popular:
---Land of Fish and Rice, Home of Silk, Land of Flowers and Land of Culture
---An Ancient Town of Rivers-Wuzhen
---The Late Maodun's Residence
---The Late Feng Zikai's Residence
5). The factory located between hangzhou and shanghai
Friendly Exchanges:
