2015 new dryer for fertilizer on promotion
dryer for fertilizer brief introduction
dryer for fertilizer is one of traditional dryer machines. dryer for fertilizer has such advantages as reliable working condition,
elastic operation, strong adaptability and high processing capacity, so that it is widely used in
many fields such as metallurgy, building material, chemistry, coal washing, fertilizer, sand, ore, clay, kaolin
and sugar. The diameter of drum drier is 1000-4000mm, and the length can be determined according to
the specific drying requirement. The moist materials that go inside the cylinder of the dryer for fertilizer machine

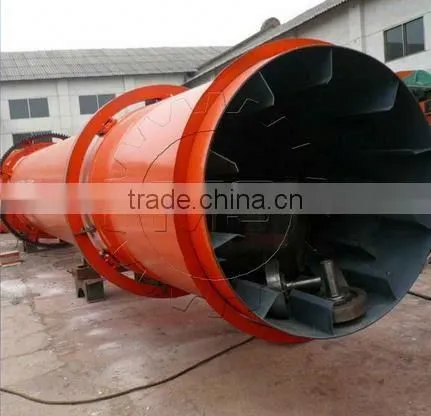

will be repeatedly lifted and scattered by the lifting board on the rotating wall, and in the falling process, the
materials will be crushed by the scattering device into fine particles whose specific area is greatly
increased, and the fine materials will sufficiently contact the hot air and will be dried.
Production Details of dryer for fertilizer
Features of dryer for fertilizer
1. dryer for fertilizer is widely used in such industries as fodder, chemistry, medicine and mine.
2.The working process of dryer for fertilizer goes like this: the moist materials whose water has been drained go into the dryer machine, under the rotation of the lifting board evenly installed inside the roller
drum, the materials will be evenly scattered inside the drying machine and carry out sufficient contact with
the hot air, thus accelerating the heat transfer and mass transfer.
3.In the drying process, under the lifting board with a certain inclination and the heat media, the materials
will move to the lower end of dryer for fertilizer and be discharged.
4. dryer for fertilizer for sale is suitable for drying residue materials whose water content is below 85% such
as brewer’s grain, bean dregs, guniting corn bran, slurry and pomace, so that it has excellent effect for opening up fodder resources, reducing the feeding cost and reduce environment pollution.
Technical Parameter of dryer for fertilizer
| Length and Diameter | Volume | Reducer | Thickness (mm) | Weight (T) | Power(kw) | Fan power (kw) | Yield(t) |
| Φ 0.8 × 8 | 4 | JZQ350 | 8 | 3.2 | 4 | 4 | 0.5-2 |
| Φ 0.8 × 10 | 5 | JZQ350 | 8 | 3.7 | 4 | 4 | 0.5-2.5 |
| Φ 1 × 8 | 6.3 | JZQ350 | 8 | 4.5 | 5.5 | 4 | 1-2.5 |
| Φ 1 × 10 | 7.9 | JZQ350 | 8 | 5.2 | 5.5 | 5.5 | 1-3 |
| Φ 1 × 12 | 9.4 | JZQ350 | 8 | 5.7 | 7.5 | 5.5 | 1-4 |
| Φ 1.2 × 10 | 11.3 | JZQ400 | 10 | 9 | 11 | 7.5 | 1-4.5 |
| Φ 1.2 × 12 | 13.6 | JZQ400 | 10 | 10 | 11 | 7.5 | 1-4.8 |
| Φ 1.2 × 14 | 15.8 | JZQ400 | 10 | 11 | 11 | 7.5 | 1-5 |
| Φ 1.2 × 16 | 18 | JZQ400 | 10 | 12 | 11 | 7.5 | 2-6 |
| Φ 1.5 × 12 | 21.2 | JZQ500 | 12 | 14.4 | 11 | 7.5 | 2-9 |
| Φ 1.5 × 14 | 24.7 | JZQ500 | 12 | 15.6 | 15 | 11 | 2-9.5 |
| Φ 1.5 × 16 | 28.3 | JZQ500 | 12 | 16.8 | 15 | 11 | 2-10 |
| Φ 1.8 × 14 | 35.6 | JZQ500 | 16 | 23 | 18.5 | 15 | 5-11 |
| Φ 1.8 × 16 | 40.7 | JZQ500 | 16 | 24.5 | 18.5 | 15 | 5-12 |
| Φ 1.8 × 18 | 45.8 | JZQ500 | 16 | 26 | 18.5 | 15 | 5-13 |
| Φ 2 × 18 | 56.5 | JZQ650 | 18 | 31 | 22 | 18.5 | 5-15 |
| Φ 2 × 20 | 62.8 | JZQ650 | 18 | 33 | 30 | 22 | 5-16 |
| Φ 2 × 22 | 69 | JZQ650 | 18 | 35 | 30 | 22 | 5-17 |
| Φ 2.2 × 18 | 68.3 | JZQ650 | 20 | 38 | 30 | 22 | 8-18 |
| Φ 2.2 × 20 | 75.9 | JZQ650 | 20 | 42 | 30 | 22 | 8-19 |
| Φ 2.2 × 22 | 83.5 | JZQ650 | 20 | 46 | 30 | 22 | 8-20 |
| Φ 2.2 × 24 | 91.1 | JZQ650 | 20 | 50 | 30 | 22 | 8-21 |
| Φ 2.4 × 16 | 72.3 | JZQ650 | 22 | 45 | 37 | 30 | 10-20 |
| Φ 2.4 × 20 | 90.4 | JZQ750 | 22 | 51 | 45 | 37 | 10-22 |
| Φ 2.4 × 24 | 108.2 | JZQ750 | 22 | 60 | 55 | 37 | 10-25 |
| Φ 2.4 × 28 | 126.6 | JZQ750 | 24 | 67 | 75 | 55 | 10-30 |
| Φ 2.7 × 18 | 1.03 | JZQ750 | 24 | 55 | 75 | 55 | 15-25 |
| Φ 2.7 × 24 | 137.3 | JZQ750 | 24 | 68 | 75 | 55 | 15-30 |
| Φ 3 × 20 | 141.3 | JZQ900 | 25 | 81 | 75 | 55 | 25-30 |
| Φ 3.2 × 20 | 160 | JZQ900 | 25 | 95 | 90 | 55 | 25-35 |
| Φ 3.2 × 28 | 225 | JZQ900 | 25 | 101 | 90 | 75 | 25-40 |
| Φ 3.5 × 24 | 230 | JZQ900 | 25 | 120 | 110 | 75 | 30-50 |
Note: No further notice if the technical parameters change.
Componets of dryer for fertilizer
dryer for fertilizer is mainly consisted of :
1) Furnace
2) Connection pipes between dryer for fertilizer and furnace
3) Feeding Device
4) dryer for fertilizer roller ring
5) Big gear(45# steel)
6) Transmission parts ( Motor, Reducer, Bearing, Small gear)
7) Carrier Roller of dryer for fertilizer
8) Discharing Device
9) Cyclone
10) Dust Remover
11) Air induced fan
Working Principle of dryer for fertilizer
dryer for fertilizer is consist of heating device, feeding device, transport device, discharge device, dust extraction device and other connecting parts. For the installation process, the dryer for fertilizer should slopes slightly so that the discharge end of dryer for fertilizer is lower than the material feed end in order to convey the material through the dryer for fertilizer under gravity. Material to be dried enters the dryer for fertilizer, and as the dryer for fertilizer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer for fertilizer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of dryer for fertilizer, passing through the hot gas stream as it falls.
Customer Site
Packaging Detail: Our dryer for fertilizer are packed as follows:
1. Processed to be rustproof and moisture proof before delivery.
2. Large mainframes are in nude, while small spare parts and motors are in wooden boxes.
Pre-sales Service
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
Service on Sale
1.Providing initiative and enthusiastic service;
2.Introducing & Demonstrating products and its application to clients;
3.Helping clients to choose equipments.
After-sales Service
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
Q 1: To which country your dryer for fertilizer are being exported?
A: Our dryer for fertilizer are being exported to Peru, USA, Chile, Brazil, Egypt, South Afrcia, Ethiopia, Sudan, Zambia,
Kenya, Turkey, Indonesia, Malaysia, Philipines, Australia, Iran, India and so on.
Q 2: How will your factory help customers to install the dryer for fertilizer?
A: Our senior engineers will guide the installation and commissioning as well as the initial production at
your working shop until machine works smoothly;
Q 3: How about the wear parts supply?
A: Our factory offer wear parts to every customer with our most favorable price. If there are problems you
could not handle, we will send our technicians to your place at our early time;
Q 4: How about the quality of your dryer for fertilizer?
A: Our dryer for fertilizer are manufactured strictly according to national and international standard. We check every
part of machine carefully before delivery.
Q 5: Why Choose your factory?
A: We have the best quality and price for our dryer for fertilizer; we have a professional installation and after-sales staffs; we have the largest factories and production capacity; we have a professional sales and service
team.
