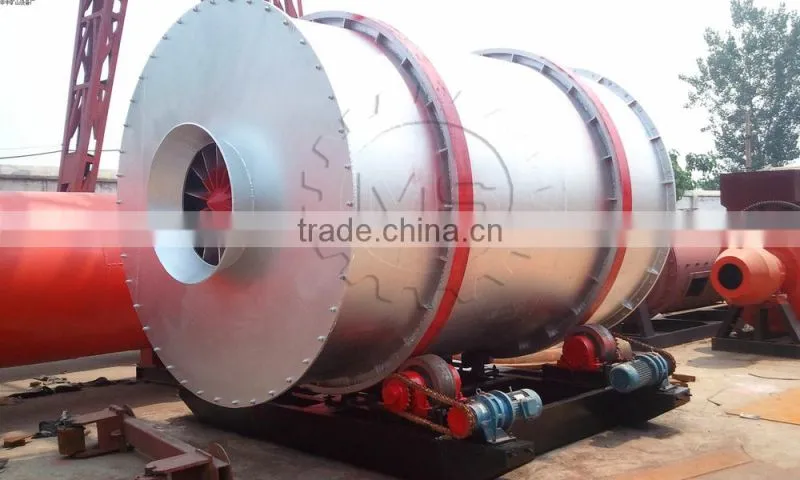

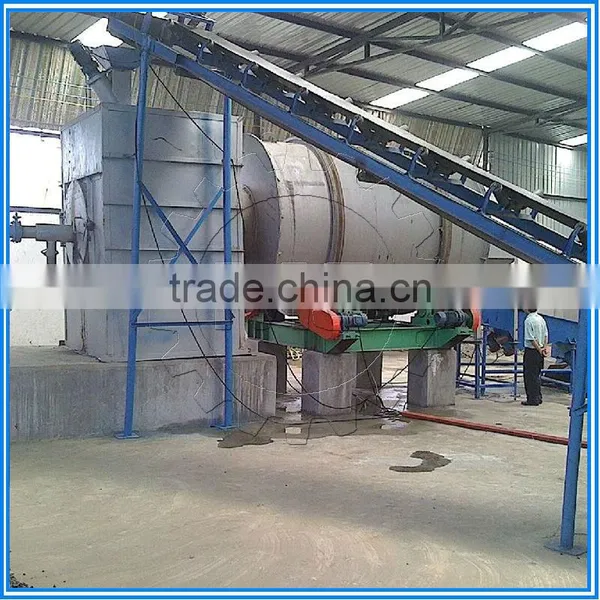

Tripple Pass Dryer


Brief introduction of tripple pass dryer:


The tripple pass dryer has three layers of insulation and realize heat circulation and self reservation. Our tripple pass dryers are made of the inner cylinder, cone and cylinder to form a since the insulation structure, using the latest energy saving technology, embedded type structure, inner cylinder, mid cylinder and outer cylinder to form a self-preservation insulation structure. At the same time the tripple pass dryer outside drum is covered by insulation materials and stainless steel plate, further reducing heat loss, improving the thermal efficiency.

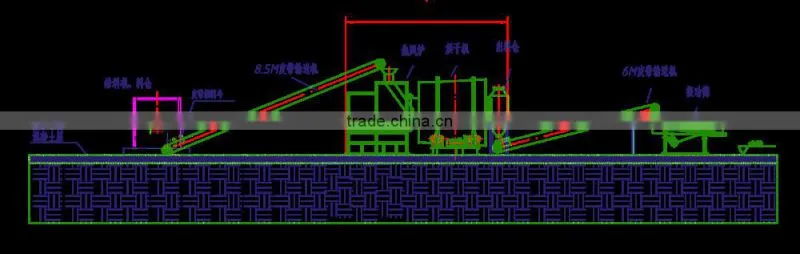

 Tree cylinder Dryer, Three Drum Dryer, tripple pass dryer

Features of tripple pass dryer:


1. It can do heat preservation by itself, and its heat efficiency can be as high as 80%, while the heat efficiency of single-cylinder dryer is only 35%. Besides, it can save as much as 68% coal and its productivity is 100% higher.
2. Its length is 60% shorter than that of single-cylinder dryer, which makes it easy to arrange. It only takes up about 20m2.
3. Its alloy steel plate is heat and wear resistant, and its abrasive performance is 4 times of that of general steel plate. Besides, it has longer service life and is easy and convenient to maintain.
4. Its outer cylinder has a temperature lower than 60°C, while the temperature of the outer cylinder of single-cylinder dryer can be as high as 150°C. And the discharge temperature is lower than 60°C.
5. The temperature of its discharge hole is low, which helps to prolong the service life of environmental protection equipment, and it can also work together with air tank pulse bag filter.
6. Its air heating furnace can also work in conjunction with fluidized bed furnace, coal spray furnace, and gas furnace.

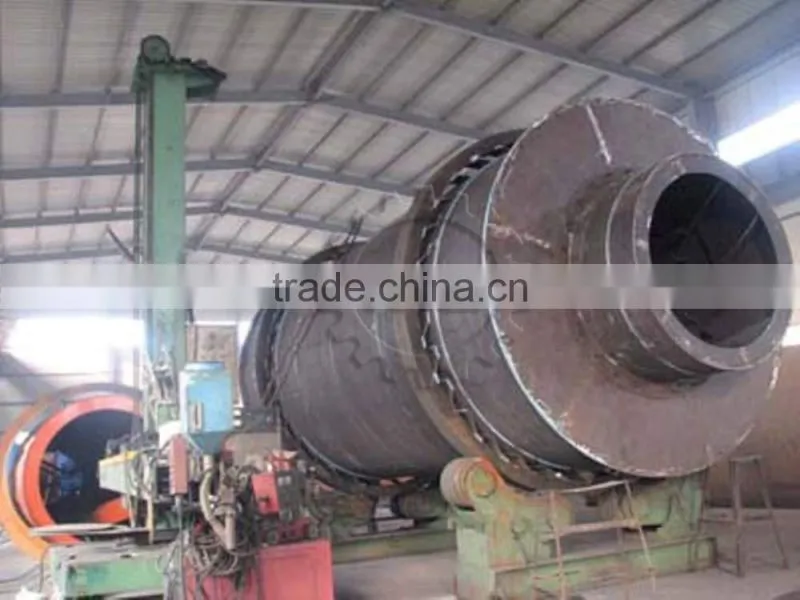

 Tree cylinder Dryer, Three Drum Dryer, tripple pass dryer

Working principle of tripple pass dryer:


The material to be dried is pushed back immindiately by spiral board when enters the shell from
feeding tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.

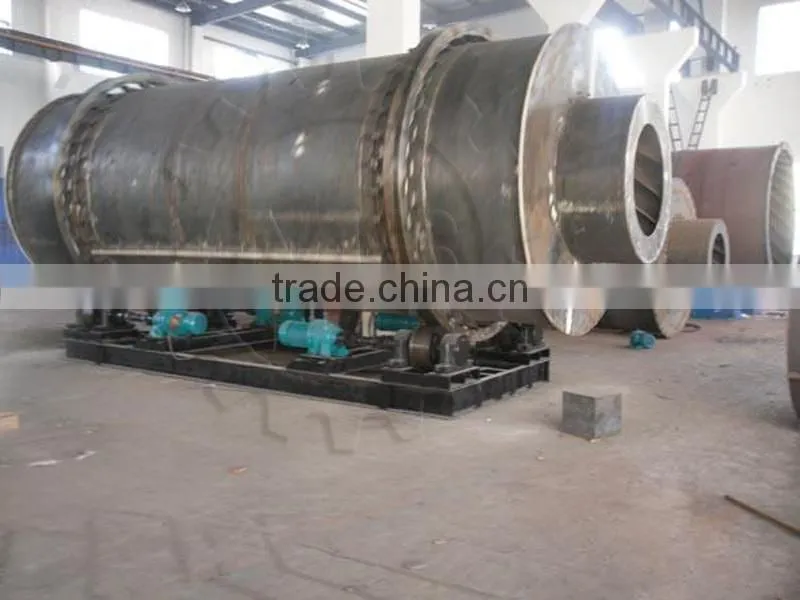

 Tree cylinder Dryer, Three Drum Dryer, tripple pass dryer

Technical specification of tripple pass dryer:

Model

φ2.0×6m

φ2.5×6.5m

φ2.7×7m

φ3×7m

φ3.2×7m

φ3.6×8m

φ4.2×8.5m

Diameter of outer cylinder (m)

2.0

2.5

2.7

3

3.2

3.6

4.2

Length of outer cylinder (m)

6

6.5

7

7

7

8

8.5

Cylinder volume (m3)

18.84

31.89

40.5

49.46

56.26

81.38

118

Rotate speed of cylinder (rpm)

3-10

3-10

3-10

3-10

3-10

3-10

3-10

Residence time of material (min)

12-30

12-30

12-30

12-30

12-30

12-30

12-30

Initial moisture of material (%)

6-25

6-25

6-25

6-25

6-25

6-25

6-25

Final moisture of material (%)

≤1

≤1

≤1

≤1

≤1

≤1

≤1

Max. air inlet temperature (°C)

750-900°C

750-900°C

750-900°C

750-900°C

750-900°C

750-900°C

750-900°C

Productivity (T/H)

Slag

20-25

25-30

30-35

35-10

40-45

50-65

70-85

Coal dust

10-17

17-21

20-25

23-27

25-30

30-45

45-63

Yellow sand

20-27

25-40

27-45

30-45

35-50

55-75

75-99

Motor model

Yr160m-4

Yr132m-4E

Yr160m-4

Yr160m-4

Yr132m-5E

Yr160m-4E

Yr160m-4E

Motor power (kw)

7.5×2

11×2

7.5×4

7.5×4

11×4

15×4

18.5×4

Model of speed reducer

XWD-6

XWD-6

XWD-6

XWD-6

XWD-6

XWD-8

XWD-8

Speed ratio of reducer (I)

17-29

17-29

17-29

17-29

17-29

17-29

17-29

Weight (T)

25

32

35

38

43

57

77



 Tree cylinder Dryer, Three Drum Dryer, tripple pass dryer



...
