2015new big modelof wool industrial washing machine line :washing machine ,dewatering machine ,drying machine
Brief instruction of 2015new big modelof wool industrial washing machine line :washing machine ,dewatering machine ,drying machine
All the machines are made of stainless steel,the material is wearable and easy to clean
Opean the door and put the dirty wool into it,add wool cleaner,shut the door,the water will into the machine automatically,select the washing time(usually 40 minutes),the machine will wash the wool very efficiency.Then we have the other machines to do the next work ,such as dewater and dryer .

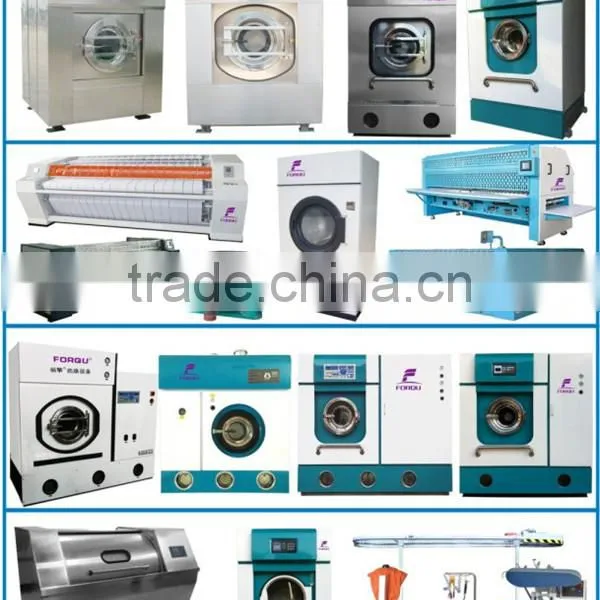

Whole line for 2015new big modelof wool industrial washing machine line :washing machine ,dewatering machine ,drying machine
parameters of 2015new big modelof wool industrial washing machine line :washing machine ,dewatering machine ,drying machine

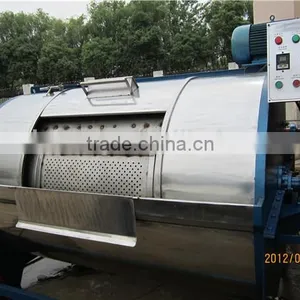

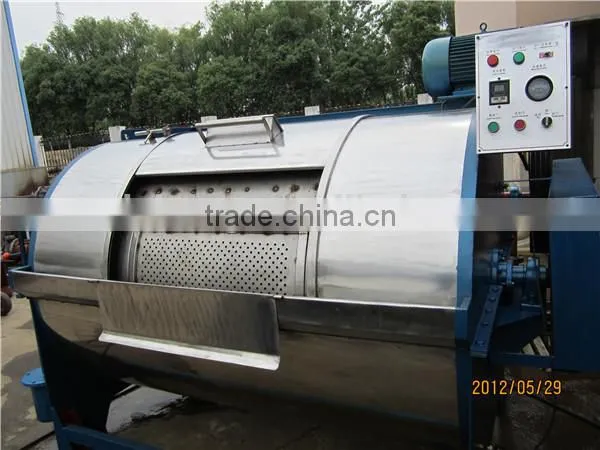

Industrial washing machine technical parameters
Model |
Max.capcity (Kg) |
drum size(mm) |
revolving speed(r/min) |
Power (kw) |
Steam pressure (mpa) |
dimensions(mm) |
Weight (kg) |
MSGP10 |
15 |
Φ500×600 |
35 |
0.75 |
0.3-0.6 |
1100*850*1200 |
260 |
MSGP20 |
20 |
Φ550×700 |
35 |
0.75 |
0.3-0.6 |
1250*940*1300 |
380 |
MSGP30 |
30 |
Φ700×800 |
33 |
1.1 |
0.3-0.6 |
1650*1100*1450 |
600 |
MSGP50 |
50 |
Φ800×1000 |
33 |
1.5 |
0.3-0.6 |
2000*1300*1500 |
800 |
MSGP80 |
80 |
Φ950×1220 |
33 |
2.2 |
0.3-0.6 |
2050*1400*1800 |
900 |
MSGP100 |
100 |
Φ950×1420 |
33 |
3 |
0.3-0.6 |
2350*1400*1900 |
1200 |
MSGP150 |
150 |
Φ1080×1600 |
31 |
4 |
0.3-0.6 |
2500*1400*2100 |
1500 |
MSGP200 |
200 |
Φ1080×2000 |
31 |
5.5 |
0.3-0.6 |
2940*1480*2100 |
1950 |
MSGP250 |
250 |
Φ1200×2260 |
31 |
7.5 |
0.3-0.6 |
3140*1500*2300 |
2300 |
MSGP300 |
300 |
Φ1300×2260 |
29 |
11 |
0.3-0.6 |
3514*1850*2300 |
2600 |
MSGP400 |
400 |
Φ1460×2440 |
29 |
15 |
0.3-0.6 |
4200*2050*2450 |
3400 |
|

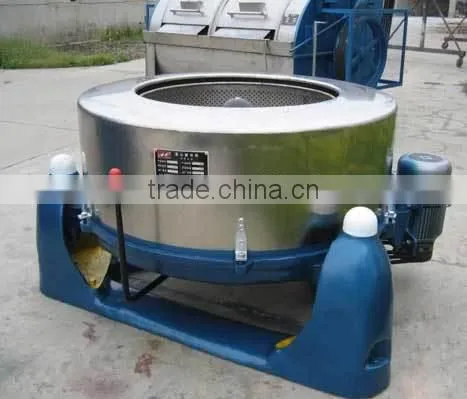

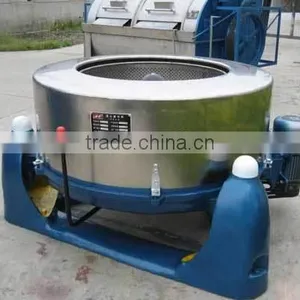

MS752-500 |
MS752-600 |
MS753-800 |
MS751-1000 |
MS754-1200 |
MSWE301-1500 |
Hub diameter(mm) |
500 |
600 |
800 |
1000 |
1200 |
1500 |
Hub height(mm) |
300 |
300 |
340 |
380 |
480 |
600 |
Hub speed(r/min) |
960 |
960 |
910 |
900 |
700 |
750 |
Power (Kw) |
1.5 |
2.2 |
4 |
5.5 |
7.5 |
11 |
Max capacity(Kg) |
25 |
45 |
80 |
130 |
220 |
500 |
Dimensions (mm) |
1000*1000*650 |
1250*1250*700 |
1500*1500*800 |
1800*1800*900 |
2000*2000*1020 |
2550*1950*1400 |
Weight (Kg) |
250 |
450 |
760 |
1100 |
1600 |
2400 |

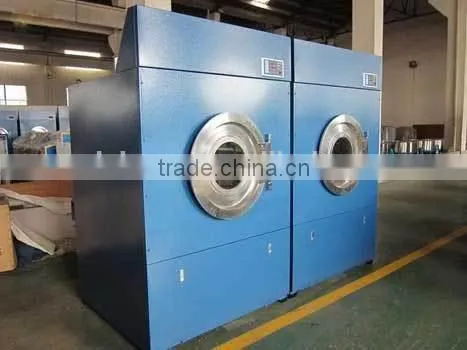

Industrial drying machine technical parameters
Model |
Max capacity(Kg) |
Inner cylinder size(mm) |
rotating speed(r/min) |
Power (kw) |
Steam pressure (mpa) |
Electric heat (kw) |
dimensions(mm) |
Weight (kg) |
MSWA801-15 |
15 |
Φ700×450 |
33 |
1.85 |
0.3-0.6 |
15 |
850*1100*1650 |
300 |
MSWA801-20 |
20 |
Φ800×450 |
33 |
1.85 |
0.3-0.6 |
18 |
1000*1100*1800 |
380 |
MSWA801-30 |
30 |
Φ1000×800 |
33 |
2.2 |
0.3-0.6 |
22 |
1120*1350*1850 |
560 |
MSWA801-50 |
50 |
Φ1140×1000 |
33 |
2.6 |
0.3-0.6 |
24 |
1280*1750*2100 |
700 |
MSWA801-100-A |
100 |
Φ1320×1150 |
31 |
3.7 |
0.3-0.6 |
36 |
1500*1930*2300 |
1000 |
MSWA801-100-B |
100 |
Φ1320×1150 |
31 |
4.4 |
0.3-0.6 |
42 |
1500*1930*2300 |
1000 |
MSWA801-120 |
120 |
Φ1450×1100 |
31 |
4.4 |
0.3-0.6 |
42 |
1600*1900*2430 |
1100 |
MSWA801-135 |
135 |
Φ1600×1100 |
30 |
5.2 |
0.3-0.6 |
50 |
1760*1850*2600 |
1200 |
MSWA801-150 |
150 |
Φ1700×1150 |
30 |
6.0 |
0.3-0.6 |
50 |
1880*2050*2750 |
1300 |
2.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack a
We can not only provide the wool wahing machine machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Our Principle: "Credibility Supremacy, and Customer First"
Our Promise: "High quality products, and Excellent Service"
Our Value: "Being Honesty, Doing the Best, and Long-lasting Development"
Our Aim: "Develop to be a leader in our industry in the world"
