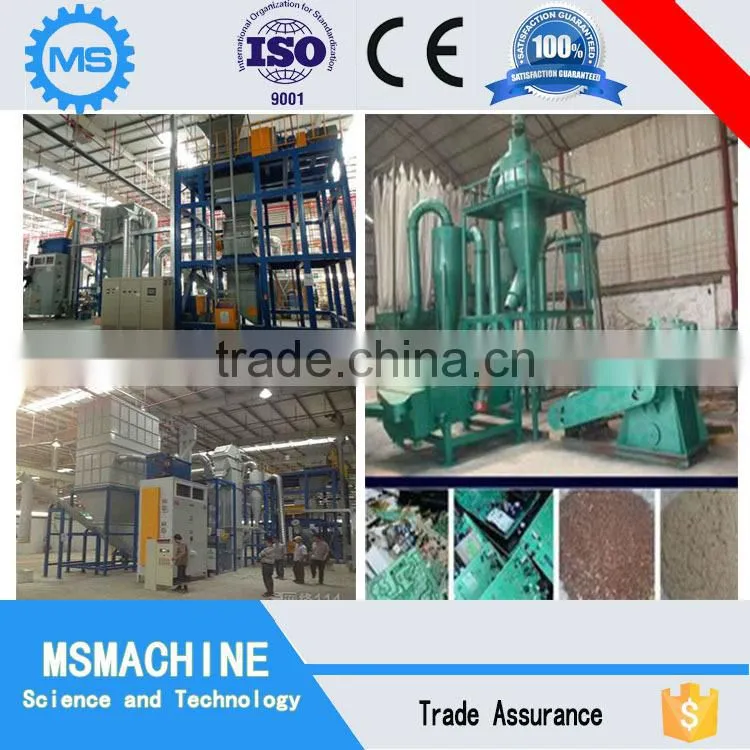

ISO & CE certification high quality tv mainboard recycling machine on promotion

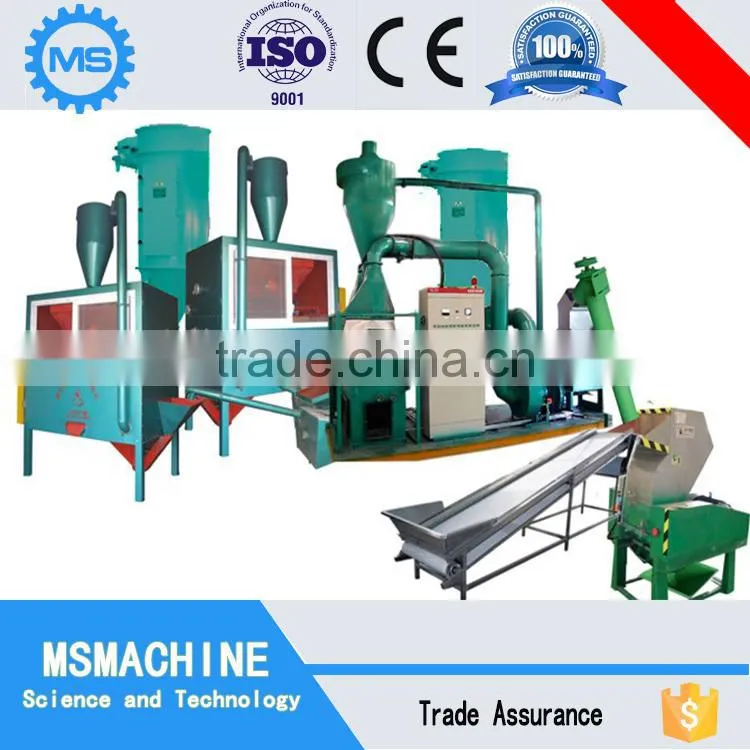

Description of tv mainboard recycling machine

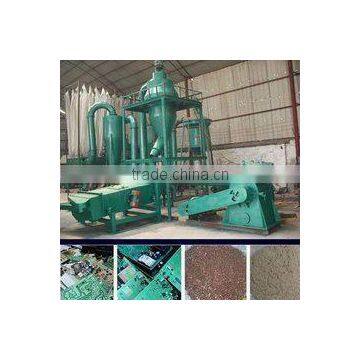

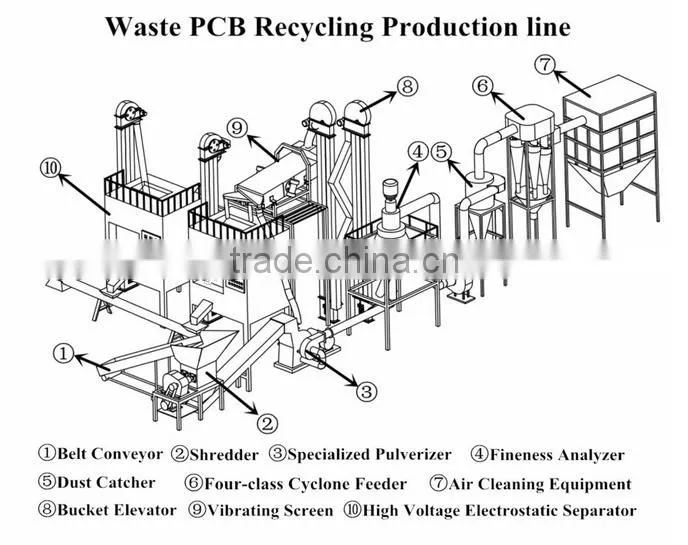

tv mainboard recycling machine adopts a process route that makes raw materials such as PCB waste (printed circuit boards) to be a mixture of metal and resin fiber powder by dry crushing and pulverization and then separates the metals from the non-metal materials such as resin by high voltage electrostatic separator.To avoid dust pollution in the process,we already add some air cleaning equipments for the solution of the problem of dust pollution with every index up to the national standard.

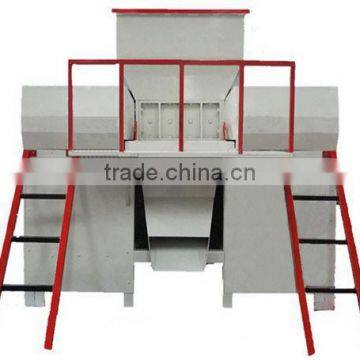

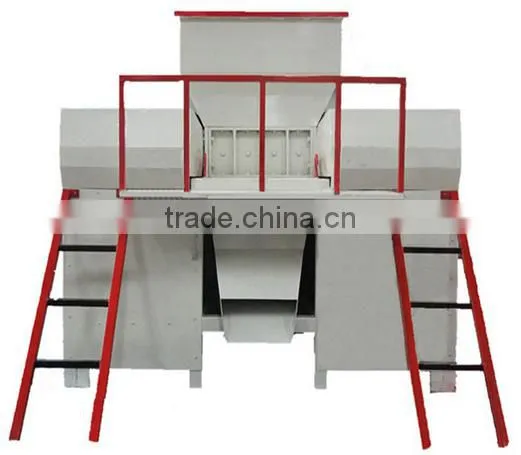

Shredder is used to reduce the dimension of the material through cutting, tearing and extruding.
It provides a good quality and reliable equipment for early broken of the waste recycling and volume reduction treatment.
Double shaft shredder is widely used in waste plastic, waste rubber, wood and other big block waste broken.
Technical parameter:
Diameter of blade |
Type |
Power (kw) |
Capacity (kg/h) |
Qty of blade(piece) |
Inlet Size (mm) |
|
200mm |
SG-500 |
7.5 |
200-400 |
16 |
700*760 |
SG-600 |
11 |
300-500 |
24 |
800*760 |
|
SG-800 |
22 |
400-700 |
32 |
1000*760 |
|
SG-800-2 |
15*2 |
500-900 |
32 |
1000*760 |
|
SG-1000 |
22*2 |
700-1000 |
40 |
1200*760 |
|
|
300mm |
SG-800 |
15*2 |
800-1000 |
16 |
1000*990 |
SG-1000 |
18.5*2 |
1000-1200 |
20 |
1200*990 |
|
SG-1200 |
22*2 |
1200-1500 |
26 |
1400*990 |
|
SG-1500 |
30*2 |
1500-1800 |
38 |
1700*990 |
|
400mm |
SG-800 |
18.5*2 |
1000-1200 |
16 |
1000*990 |
SG-1000 |
18.5*2 |
1200-1500 |
20 |
1200*990 |
|
SG-1200 |
22*2 |
1500-1800 |
26 |
1400*990 |
|
SG-1500 |
30*2 |
1800-2000 |
38 |
1700*990 |
|
SG-1680 |
37*2 |
2000-2500 |
42 |
1880*1090
|
High voltage electrostatic separator for pcb,circuit board,computer/cellphone/TV circuit board recycling machine adopt physical high voltage separating tech to separate metal-conductor and nometal-conductor.No air and water pollution ,
the metal and nometal(resin or other plastic) can be separate effectively with 98-99% purity.
Technical parameter:
| Type | Power | Rotary speed | Vibration motor | Static electricity |
| (r/min) | ||||
| 1001 | 1.5KW | 20-300 | 0.75KW | 50000-150000 |
| Volt adjustable | ||||
| 1002 | 1.5KW | 20-300 | 0.75KW | 50000-150000 |
| Volt adjustable | ||||
| 1003 | 1.5KW | 20-300 | 1.1KW | 50000-150000 |
| Volt adjustable | ||||
| 1501 | 2.2KW | 20-300 | 1.1KW | 50000-150000 |
| Volt adjustable | ||||
| 1502 | 2.2KW | 20-300 | 1.1KW | 50000-150000 |
| Volt adjustable | ||||
| 1503 | 2.2KW | 20-300 | 1.5KW | 50000-150000 |
| Volt adjustable | ||||
| 2001 | 3KW | 20-300 | 1.5KW | 50000-150000 |
| Volt adjustable | ||||
| 2002 | 3KW | 20-300 | 2.2KW | 50000-150000 |
| Volt adjustable | ||||
| 2003 | 3KW | 20-300 | 2.2KW | 50000-150000 |
| Volt adjustable |

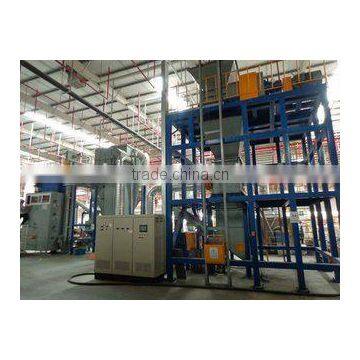

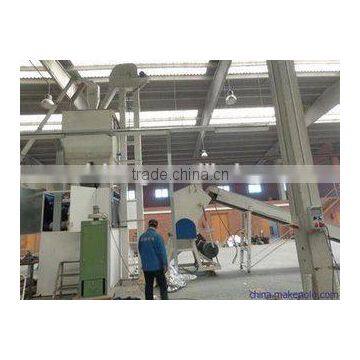

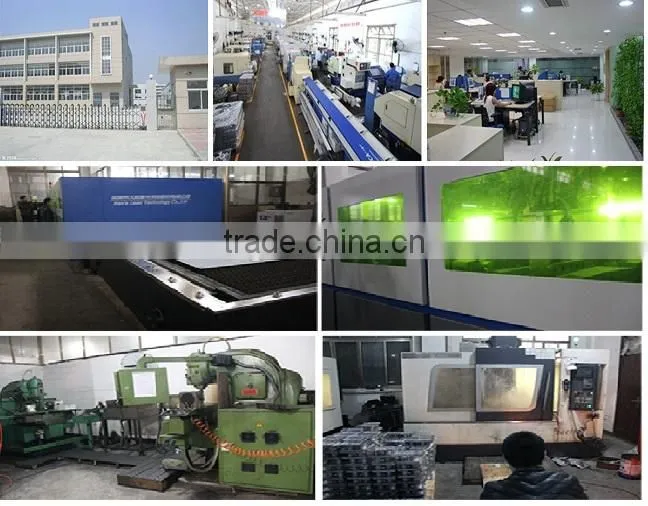

Production Work Site of tv mainboard recycling machine
Packing & Shipping of tv mainboard recycling machine
Pre-sales Service
1.Offering comprehensive technical and business consultation services;
2.Proposing the most suitable scheme and equipment for our clients;
3.Designing and fabricating targeted products according to the special requirements of clients;
Service on Sale
1.Providing initiative and enthusiastic service;
2.Introducing & Demonstrating products and its application to clients;
3.Helping clients to choose equipments.
After-sales Service
1.Highly inspecting equipments in every working procedure, quality comes first;
2.Fast & Safe Delivery;
3. Assisting our clients for foundation construction of equipments;
4.Dispatching engineers to install and debug equipments;
