The gas heating dryer structure
The gas heating rotary dryer is consist of rotary body, lifting blade, driving device, supporting device and sealing ring. It uses gas as fuel to heat the dryer shell.
The gas heating dryer features
1) simple and reasonable structure, it's easy to operate and maintain
2) high efficiency, it can reduce raw material moisture from 50-60% to 10-15%
3) various fuels can be used, such as coal, natural gas,
4) widely usages, different blades can be changed to meet different requirements and raw material.
gas heating dryer technical data
Model (mm) |
Slope (°) |
Inlet air temperature (°C) |
Speed (r/min) |
Power (kw) |
Capacity (t/h) |
Weight(T) |
600X6000 |
3-5 |
≤700 |
3-8 |
3 |
0.5-1.5 |
2.9 |
800X8000 |
3-5 |
≤700 |
3-8 |
4 |
0.8-2.0 |
3.5 |
800X10000 |
3-5 |
≤700 |
3-8 |
4 |
0.8-2.5 |
4.5 |
1000X10000 |
3-5 |
≤700 |
3-8 |
5.5 |
1.0-3.5 |
5.6 |
1200X10000 |
3-5 |
≤700 |
3-8 |
7.5 |
1.8-5 |
14.5 |
1200X12000 |
3-5 |
≤700 |
3-8 |
11 |
2-6 |
14.8 |
1500X12000 |
3-5 |
≤800 |
2-6 |
15 |
3.5-9 |
17.8 |
1800X12000 |
3-5 |
≤800 |
2-6 |
18 |
5-12 |
25 |
2200X12000 |
3-5 |
≤800 |
1.5-6 |
18.5 |
6-15 |
33 |

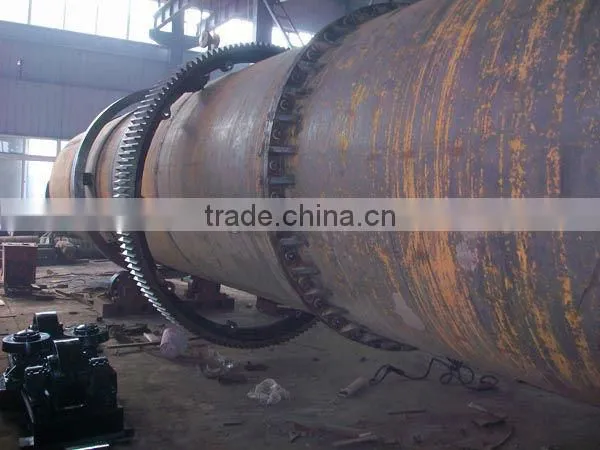

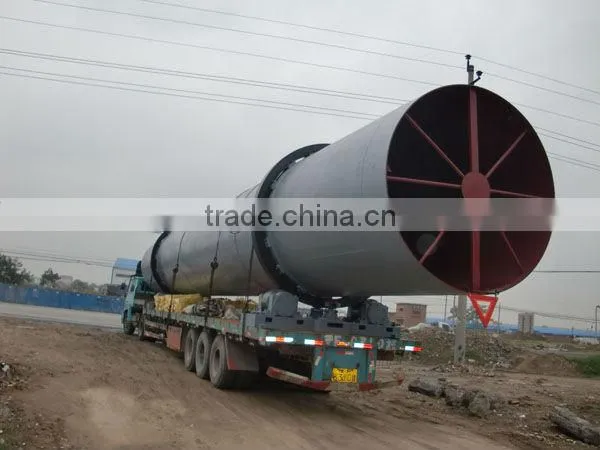

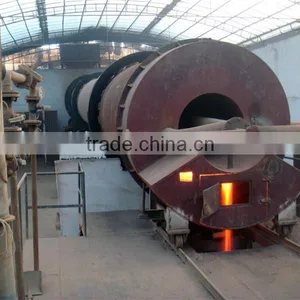

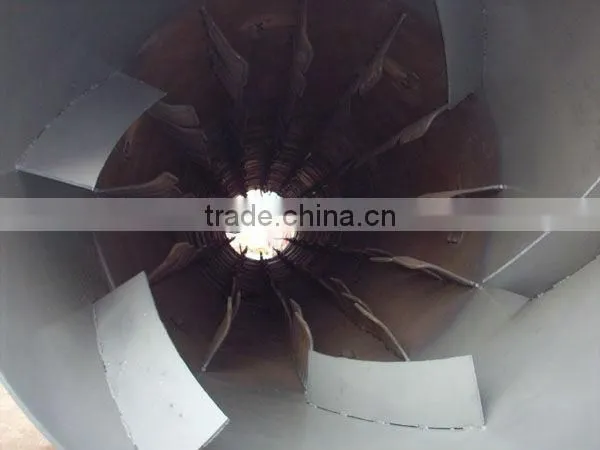

More pictures of the electricity heating dryer
...
