Home > Products > Drainage Trench Cover > U-type Trench Cover

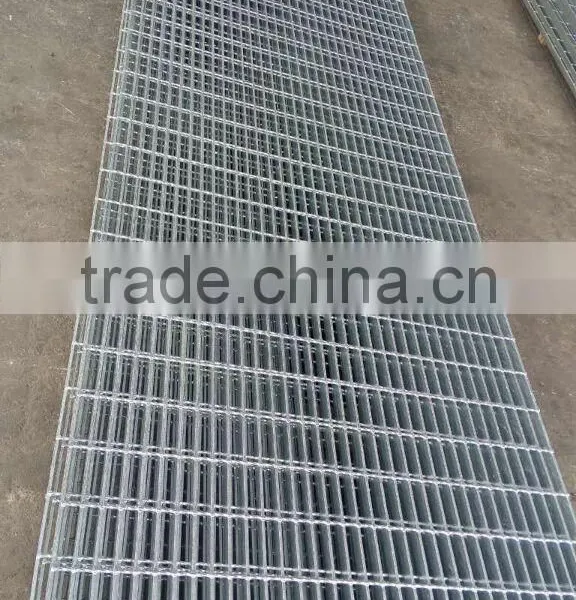

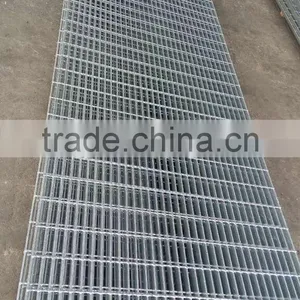

U-type Trench Cover
- Qingdao
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | WON | |
| Model Number | Q235 | Material | Galvanized Sheet |
Product Description
Drainage cover detailed specification:
drainage trench cover is widely used in the urban road, the square, the botanical garden, the wharf, the airport, the parking lot, the road, each kind of industry, the civil project, etc.
UGG-symbol of U-type:
Type II— allowable load is 14 tons
Type III--- allowable load is 6 tons
Type IV--- allowable load is 2 tons
Type V--- it is suitable for pedstrian
Drain cover size and weight table:
Trench widh(mm) | Type of U-type trench cover | Dimension(mm) | |||||
Steel grating | Frame | ||||||
a | b | h | Type | A | Angle steel size | ||
150 | UGGII1.5-255 | 130 | 995 | 25 | G255/30/100 | 210 | 40×40×5 |
200 | UGG II 2-325 | 180 | 995 | 25 | G325/30/100 | 260 | 40×40×5 |
300 | UGG II 3-455 | 275 | 995 | 45 | G455/30/100 | 375 | 50×50×5 |
450 | UGGII4.5-555 | 415 | 995 | 55 | G555/30/100 | 540 | 63×63×6 |
600 | UGG II6-405 | 580 | 995 | 40 | G405/30/100 | 660 | 40×40×5 |
pallet packaging and customers request
