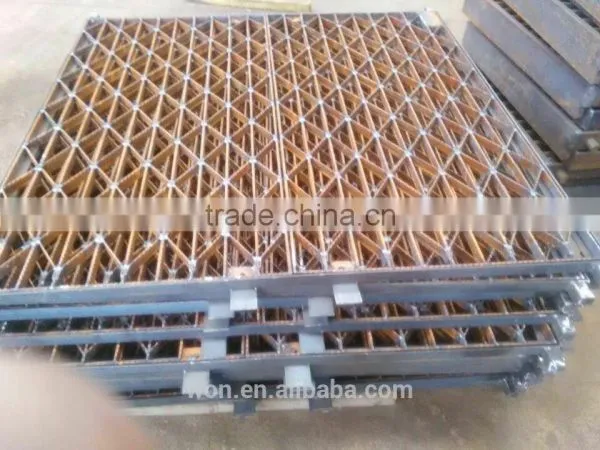

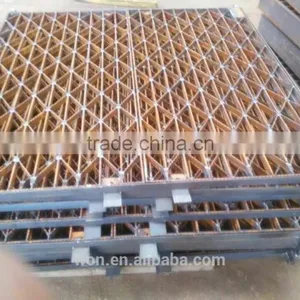

Drainage cover detailed specification:
drainage trench cover is widely used in the urban road, the square, the botanical garden, the wharf, the airport, the parking lot, the road, each kind of industry, the civil project, etc.
JG-symbol of drainage pit cover
symbol of load bearing type:
Type I--allowable load is 20 tons
Type II— allowable load is 14 tons
Type III--- allowable load is 2 tons
Drainage pit cover size and weight table:
Drainage pit dimension(mm)length*weight |
Type of Drainage pit cover |
Dimension(mm) |
|||||||
Steel grating |
Frame |
||||||||
a |
b |
h |
model |
A |
B |
H |
Angle iron size |
||
300x300 |
JG I 33-455 |
400 |
305 |
45 |
G455/30/100 |
430 |
325 |
50 |
50x50x5 |
300x400 |
JG I 34-455 |
400 |
395 |
45 |
G455/30/100 |
430 |
415 |
50 |
50x50x5 |
400x400 |
JG I 44-505 |
500 |
395 |
50 |
G505/30/100 |
532 |
417 |
56 |
56x56x6 |
500x500 |
JG I 55-555 |
600 |
515 |
55 |
G555/30/100 |
636 |
541 |
63 |
63x63x8 |
600x600 |
JG I 66-655 |
700 |
605 |
65 |
G655/30/100 |
730 |
625 |
70 |
70×70×5 |
pallet packaging and customers request
