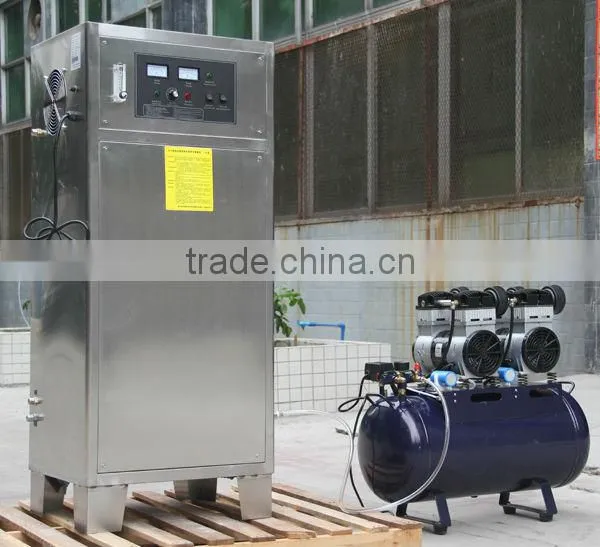

fish farming oxygen generator 60l.aquaculture oxyenator, 10l/20l/30l oxygen concentrator
Product description:
Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an
adsorbent material.
It operates at near-ambient temperatures and differs significantly from cryogenic distillation techniques of gas separation.
Specific absorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure.
The process then swings to low pressure to desorb the adsorbed material.
Technical Specification
| Item/Model | Unit | QJ-OX3L | QJ-OX5L | QJ-OX10L | QJ-OX15L | QJ-OX50L |
| Oxygen Output | L/Min | 3 | 5 | 10 | 15 | 50 |
| Size | cm | 40*30*71 | 40*30*76 | 55*40*113 | 55*40*124 | 82*40*175 |
| Power Supply | V/Hz | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 |
Concentration |
% | 90+-3 | 90+-3 | 90+-3 | 90+-3 | 90+-3 |
| Weight | Kg | 35 | 38 | 48 | 48 | 50 |
Outlet pressure |
Mpa | 0.2 | 0.2 | 0.3 | 0.3 | 0.6~0.7 |
| Requirement of Air Condition: |
| Temperature | -5~40°c |
| Humidity | 60-80% |
| Air with Dust Content | ≤20mg/m3 |
| Air with H2S,SO2 | ≤5PPM |
| Air with CO2 | ≤250PPM |
| Air with C2H2 | ≤0.5PPM |
| Air with CmHm | ≤20ppm |
| Air with Acidic Gas | No more Pungent Smell and Corrosive Smell |
| Vantilation | Draftiness |
| Item/Model | Unit | QJ-OX100L | QJ-OX120L | QJ-OX150L | QJ-OX200L | QJ-OX300L |
| Oxygen Output | L/Min | 100 | 120 | 150 | 200 | 300 |
| Power Supply | V/Hz | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 |
Concentration |
% | 93-95 | 93-95 | 93-95 | 93-95 | 93-95 |
| Weight | Kg | |||||
Outlet pressure |
Mpa | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 |
30LPM Industrial PSA Oxygen Generator Unit

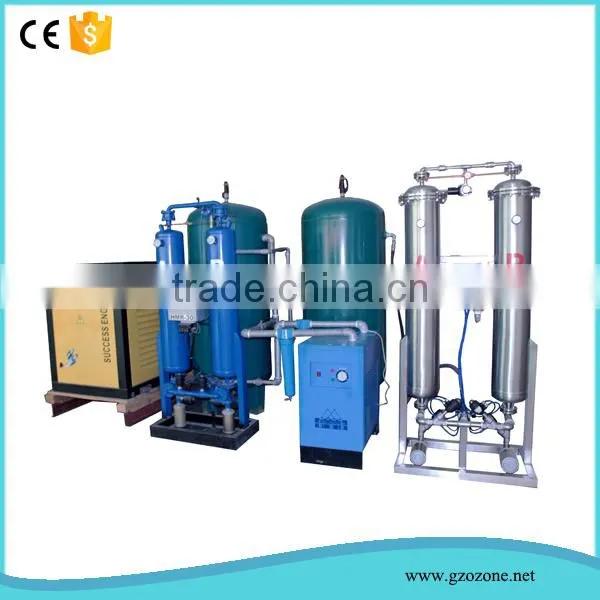

External air treatment equipment for the 30L psa oxygen generators system:screw air compressor,air storage tanks,adsorption air dryer,refrigerant air dryer,ultra filters etc
10/15LPM Industrial PSA Oxygen Generator Unit
20LPMM PSA oxygen generator
We can manufacture ozone genetator varied from 5grams to 2kg/hr ozone with oxygen feeding.also we can supply 500mg/hr to 2kg/hr ozone generator with air feeding, 3LPM to 300LPM PSA oxygen generator/concentrator,car air purifier with ozonizer and ionizer.
Guangzhou Quanju Ozone Tech Co. has been lined in small and medium size ozone generator manufacturer for over 10years,with high quality and resonable price for our dear customers.
Quanju ozone generators have been exported to many countries:
Chile,UAE,Korean,Malaysia,Hongkong,India, Indonesia, Australia, Brazil, Israel, Ghana, Italy, Turkey, Iran, England, Canada, Nigeria,USA, etc.
packing : factory original package wooden case
5-7 workingdays after payment.
