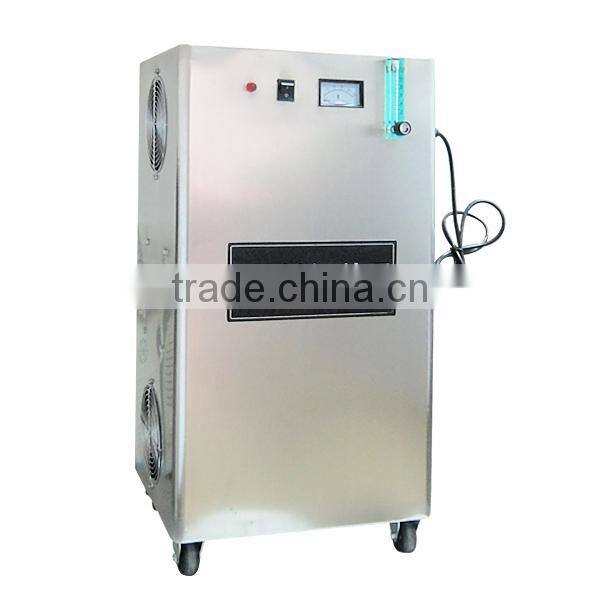

Oxygen Gas Plant / Industrial Oxygen Concentrator 20lpm
- Guangzhou/Shenzhen/HK
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
After-sales Service Provided and Oxygen Usage Generator
-
High Purity 30 Liters Fish Farming Oxygen Concentrator
-
Mini Air Compressors for 30L Oxygen Concentrator Machine
-
Industrial Electric Oxygen Generator Price for Fish Farming ,aquaculture Oxygen Concentrator
-
Professional PSA Oxygen Generators for Making Oxygen
-
Professional Medical Equipment PSA Oxygen Generating System
Product Details
| Place of Origin | Guangdong, China | Brand Name | Quanju | |
| Model Number | QJ-OX30L |
Product Description
oxygen gas plant / industrial oxygen concentrator 20lpm
Welcome to Guangzhou Quanju Ozone Technology Company
Oxygen gas plant FEATURES:
Industrial oxygen generator is used for aquaculture or feeding oxygen to ozone machine etc.
1.Used with import oxygen molecular sieve
2.With refrigerant dryer and PSA oxygen generation unit, ultra filters, inner oilless air compressor, etc.
3.Under humidity is above 85%-90%, Refrigerated dryer is necessary to dry the hot compressed air which pumps into oxygen bed, to protect oxygen life time.
4.Control: Ammeter, Working indicator, Power indicator, On/Off, Oxygen flow meter, Voltmeter, Oxygen outlet, Fuse, Power input
Technical Specification
| Item/Model | Unit | QJ-OX3L | QJ-OX5L | QJ-OX10L | QJ-OX15L | QJ-OX50L |
| Oxygen Output | L/Min | 3 | 5 | 10 | 15 | 50 |
| Size | cm | 40*30*71 | 40*30*76 | 55*40*113 | 55*40*124 | 82*40*175 |
| Power Supply | V/Hz | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 |
Concentration | % | 90+-3 | 90+-3 | 90+-3 | 90+-3 | 90+-3 |
| Weight | Kg | 35 | 38 | 48 | 48 | 50 |
Outlet pressure | Mpa | 0.2 | 0.2 | 0.3 | 0.3 | 0.6~0.7 |
| Requirement of Air Condition: |
| Temperature | -5~40°c |
| Humidity | 60-80% |
| Air with Dust Content | ≤20mg/m3 |
| Air with H2S,SO2 | ≤5PPM |
| Air with CO2 | ≤250PPM |
| Air with C2H2 | ≤0.5PPM |
| Air with CmHm | ≤20ppm |
| Air with Acidic Gas | No more Pungent Smell and Corrosive Smell |
| Vantilation | Draftiness |
| Item/Model | Unit | QJ-OX100L | QJ-OX120L | QJ-OX150L | QJ-OX200L | QJ-OX300L |
| Oxygen Output | L/Min | 100 | 120 | 150 | 200 | 300 |
| Power Supply | V/Hz | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 | 220/50,380/50 |
Concentration | % | 93-95 | 93-95 | 93-95 | 93-95 | 93-95 |
| Weight | Kg | |||||
Outlet pressure | Mpa | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 | 0.6-0.7 |
Oxygen gas plant characteristics:
1.High oxygen concentration and output pressure.
2.Apply PSA oxygen technology,using clean dry air as raw material,with low cost,low power consumption but high efficiency.
3.Simple reliable and easy maintenance.
4.Small and light weight,easy operation.
5.Cost-effective.
Industrial PSA Oxygen Generator Unit 5l
10/15 LPM Industrial PSA Oxygen Generator Unit
Technology:
Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs significantly from cryogenic distillation techniques of gas separation. Specific adsorptive materials (e.g., zeolites, activated carbon, molecular sieves, etc.) are used as a trap, preferentially adsorbing the target gas species at high pressure. The process then swings to low pressure to desorb the adsorbed material.
PSA generators provide a cost-efficient source of oxygen. They are safer,less expensive, and more convenient as an alternative to tanks of cryogenic oxygen or cylinders and can be used in various industries including agricultural, pharmaceutical production, water treatment and glass manufacture.
30 LPM Industrial PSA Oxygen Generator Unit
Guangzhou Quanju Ozone Technology Co., Ltd specializes in manufacturing ozone generators for water and air,PSA oxygen generators etc.
We has been in the industry for more than 12 years and engaged in ozone equipment mechanism,design and manufacturing, ozone application project design.
As the leading technology enterprise in Chinese ozone industry,we could provide installation,operation,debugging and other professional services.
Our company is a high tech company based on advanced ozone technology and core engaged in ozone equipment mechanism,ozone equipment design and manufacturing,ozone application project design.
There were 100 staff in our factory and the export business cover America,Canada,UK,Austrailia,Iran,Turkey etc.All of our product will be tested ,adjusted before senting out and offering 1 year warranty.The MOQ of our factory is 1 and 1-3 working days after payment for delivery with carton case or wooden case.The payment by Paypal,L/C, D/A, D/D, T/T,Western Union,MoneyGram was accepted.You could surf our website to know the product and The Trade Assurance of our company on Alibaba is $50000.
Q:What's Ozone?
A:Ozone is one of the most powerful oxidants available, destroying bacteria,viruses, mold,formaldehyde,and mildew in air, water and diverse applications almost instantly and more efficiently than any other technology. Ozone’s molecular structure is three oxygen atoms (O3).
Q:Why ozone is a green technology?
A:Ozone is a green technology with many environmental benefits. It reduces our dependence on traditionally used, harmful chemicals such as chlorine and eliminates their hazardous disinfectant by-products (DBPs). The only by-product created by ozone applications is oxygen which is reabsorbed into the atmosphere. Ozone’s ability to disinfect in cold water also saves energy.
Q:How about your company?
A:We are the manufacturer and our factory located in Guangzhou Baiyu district.Our product export to United State,Canada,United Kingdom,Australia,Brasil,Turkey etc.
- Ozone generator packing:factory original package by wooden case or carton case.
- Shipping:1-10 units,only 1-3 working days only after .payment
- Express/Air transport etc
*We manufacture Home ozone generator,Wall-mounted ozone generator,Movable ozone sterilizer,Air source ozone generator,Oxygen source ozone generator,The external air source ozone generator,High concentration water machine,PSA oxygen generator,Ozone disfinfection cabinet,Efficient air treatment machine,Car air purifier and sterilizer machine and Accessory.
*We depend on the situations of client to offer professional knowledge,solve the problem and choose the reasonable product.
*The product will be test and regulate before senting out.
*All of our product with a safety package by wooden case or carton case.
*while the machine get into trouble,professional knowledge and advice will be offer.
*We offer 12 months warranty for our product.
