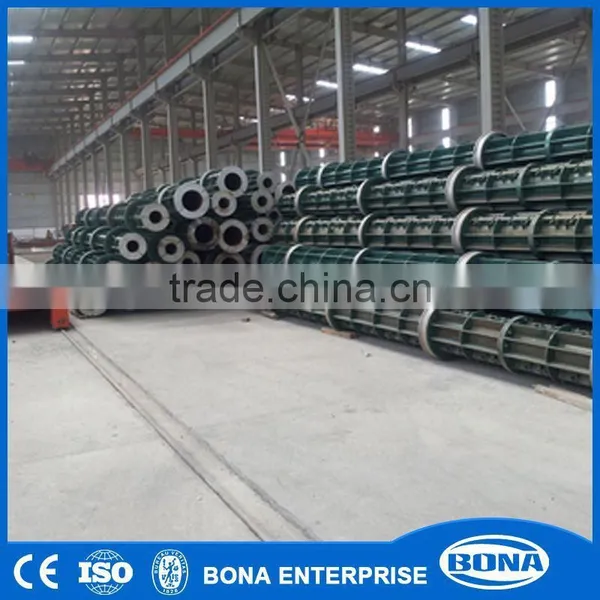

New Design Concrete Electrical Pole Mold
Telegraph pole mold is one of the important pole production equipment. It is not only the shape of the mold but also the pre-stressing device. It is original in structure. Its position fixing is made by radial tongue-and-groove and axial taper pin. Manufactured stage by stage and binded by bolts at last, concrete electrical pole mold is characteristic with the advantages of easy transportation, quick assembling, correct position fixing, good rigidity and smooth working.
The mould of prestressed and nonprestressed concrete poles has the advantages of high strength, good rigidity long service life and being easy in transportation, quick in assembling and simple in maintenance.
top end inner diameter (mm) |
Tread (mm) |
Running wheel diameter (mm) |
Length (m) |
150 |
2000 |
600 |
7-12 |
170 |
2000 |
600 |
7-12 |
190 |
2000 |
650 |
7-15 |
230 |
2000 |
650 |
6-9 |
300 equal diameter |
2000 |
600 |
6-9 |
350 equal diameter |
2000 |
650 |
6-12 |
310 |
2000 |
650-780 |
6-15 |
This concrete electrical pole mold features and advantages:
1. Saving a great deal of steel, about 30~70% (employing cold drawn steel wire can save 30%~60%; employing high stress steel wire can save 40%~69%).
2. Rigidity increases 1~3 times.
3. Crack resistance can increase about 3~5 times.
4. Reducing the cost (using cold drawn steel wire can reduce 25%~40%; using high stress steel wire can reduce 12%~21%).
5. Good durability, can delay the existence and expansion of cracks.
6.Protect the environment on which human beings depend on for existence, and reduce the deforestation.
Established in 2005,Zhengzhou Bona Enterprise Co.,Ltd is one of the largest construction and engineering machinery Manufacturers and Exporters in Henan China.As an CE and ISO 9001:2000 certificated company,we insist on "Innovating,Perfect,High quality and Best Services",and earned goof reputation i the worldwide,read more
1.How many poles or pile will be produced per day?
A:Also the working day per year, working shift . thanks
2.Will you set up a new concrete pole/pile plant? or just increase the production capacity?
A:We will give you different proposal and solution. also including the factory layout, technology introduction.
3.What kind of concrete electrical pole mold?
A:There are reinforced concrete poles, piles; pre-stressed concrete poles/piles, also the partical pre-stressed poles and piles. there will need some other different machines for the whole production line.
4.Pole/Piles Specification?
A:Tell us the top diameter, bottom diameter, total length , thank you!
5.How much for the budge ?
A:will you prefer semi-automatic or the full-automatic production?
6.Have you do any market research ? who is your potential customers?
A:The government project of telecommunication, electric transmission; or your own project !
