High efficiency wood pellet making line with cheap price

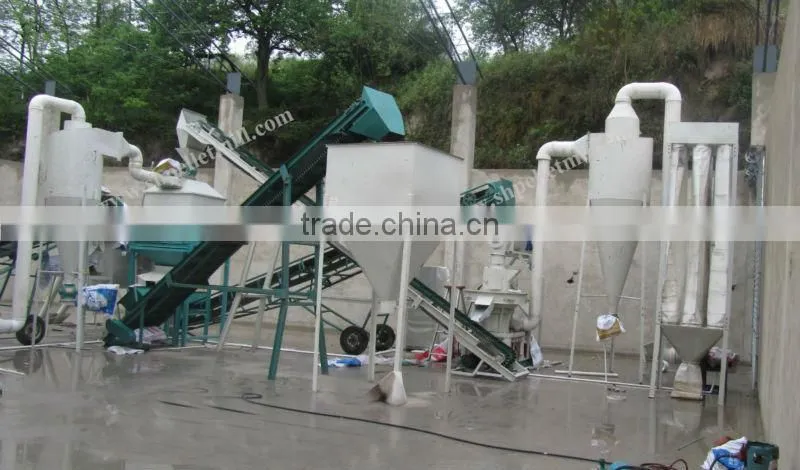

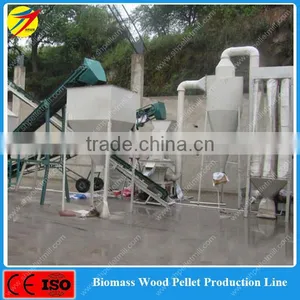

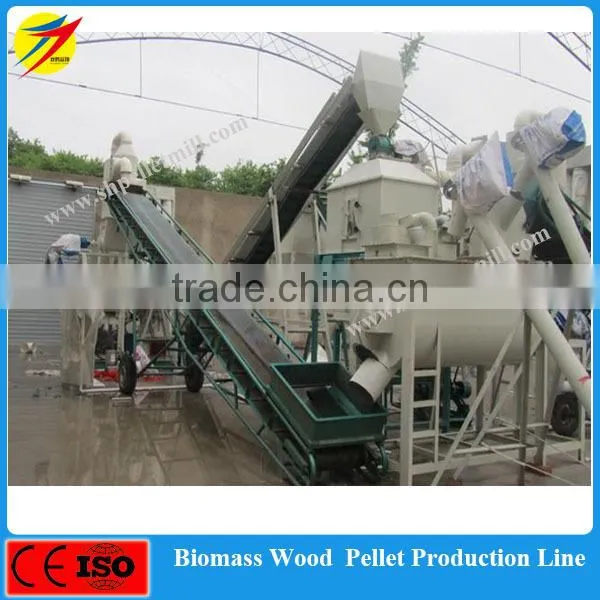

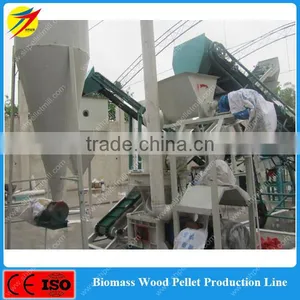

Wood pellet making line is the complete biomass pellet production line from raw material crushing to final biomass pellets packaging. This plant is consisted of biomass pellet mill, screw conveyor, crusher, silo, Cooler, grading sieve machine, packing machine and control cabinet, etc. Wood pellet line is the complete one to make pellet from any type of agroforestry wastes with output 1ton/1hour; 2ton/1hour; 3ton/1hour; 4ton/1hour; 6ton/1hour; 8ton/1hour; 10ton/1hour.
1.Features of wood pellet line
1).Compact structure, low consumption and high efficiency
2).Small occupation,low cost
3).Low noise and low dust,
4).High efficiency and quick return of investment.
5).The bagasse pellet line price is reasonable.
2.Raw Materials Application:
Biomass waste(a variety of spices of trees, lumber, timber, shrubs, sawdust, saw shavings, twigs and branches). Sawdust, groundnut shell, sugarcane biogases, caster shells/stalk, coffee husk saw dust, paddy straw, sunflower stalk, cotton stalk, tobacco waste, mustard stalk, jute waste, bamboo dust, tea waste, wheat straw, palm husk, soybeans husk, leaves, grass, coir pitch barks/straws, rice husks, forestry wastes, wood chips and other kind of agro wastes(rice husks, corn cobs, peanut shells, sunflower seed shells, coconut shuck, coffee grounds, straw stalks, cotton stalks, palm empty fruit bunches).
3.Industrial Application:
This biomass wood pellet line is mainly used for civil heating and living energy plant, power plant, bath center, etc.

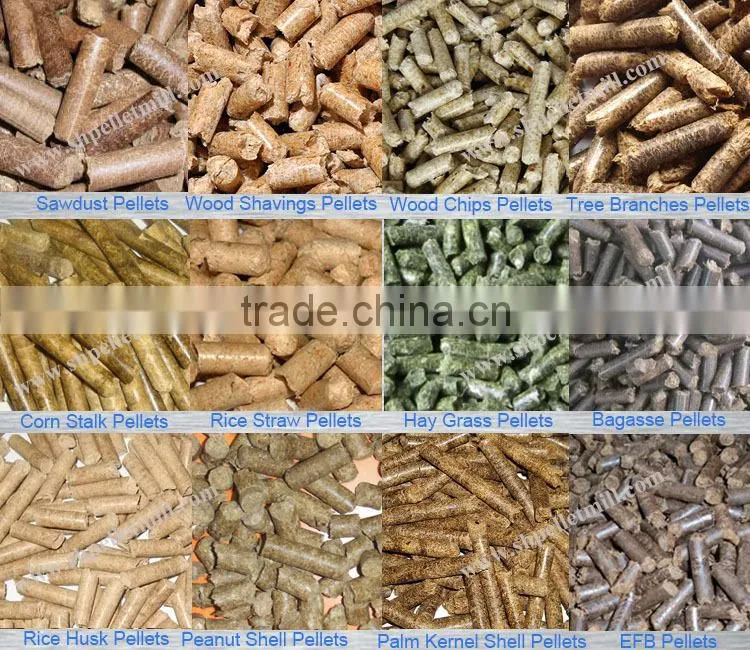

4.Samples of biomass pellets
Biomass pellet fuel types contains wood sawdust pellets, wood chips pellets, tree branch pellets ,corn stalk pellets, rice straw pellet ,hay grass pellets,bagasse pellets, rice husk pellets, peanut shell pellets, palm kernel pellets, EFB pellets ,etc .The highest value of fuel burning is sawdust pellets , straw is second.

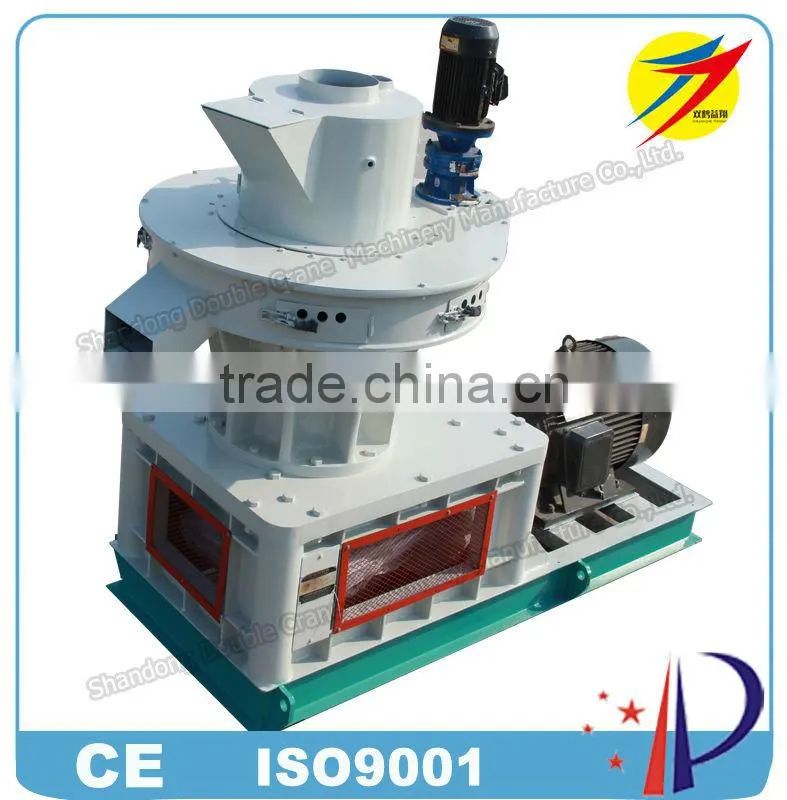

5.Technology parameters of key machine-wood pellet mill
| Type | Vertical ring die wood pellet mill | ||
| Model | LS 450 | LS 550 | LS 850 | |
| Voltage(v) | 380 | 380 | 380 | |
| Power(kw) | 58.25 | 93.25 | 223.62 | |
| Capacity(kg/h) | 600-800 | 1200-1800 | 2000-3000 | |
| Size of pellet(mm) | 4-12 | |||
| Moisture content | 8-15% | |||
| Granulating temperature(℃) | 80-100 | |||
| Dimension(mm)/Weight (t) | 2.05*0.85*1.75/3.1 | 2.5*1.0*1.83/3.8 | 3.5*1.7*2.9 | |
| Remark | Two-layer mold, Stainless steel roller | |||

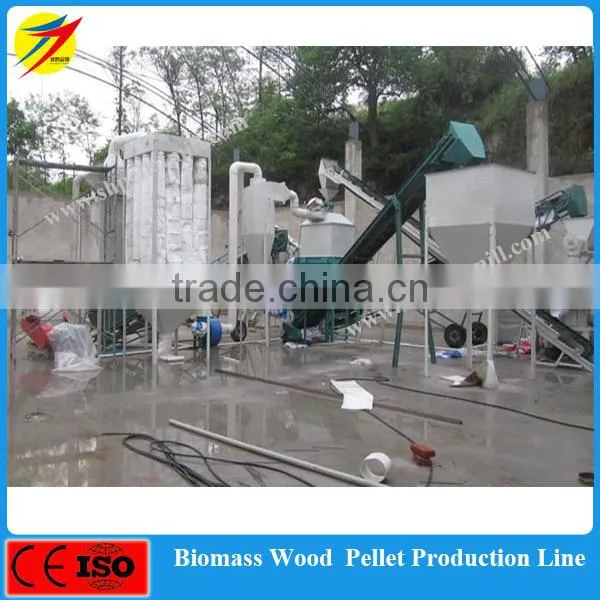

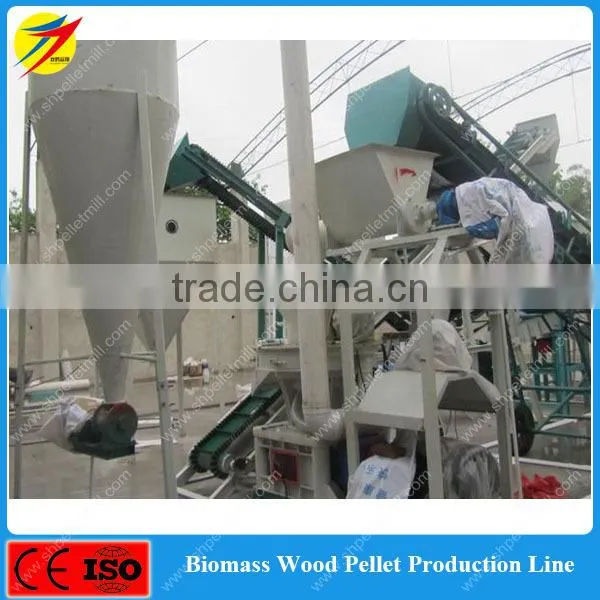

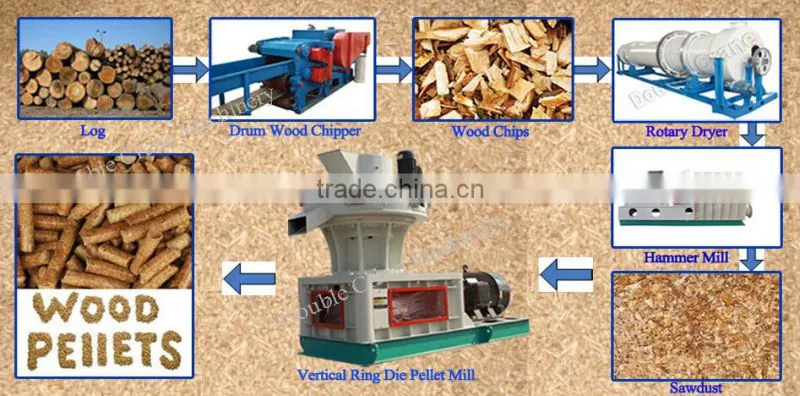

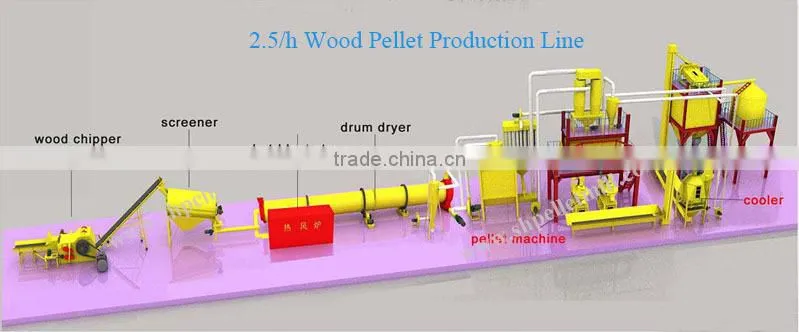

Complete wood pellet production line contains: Wood chipper,hammer mill,pellets mill,drying machine,cooling system,packing machine and so on.

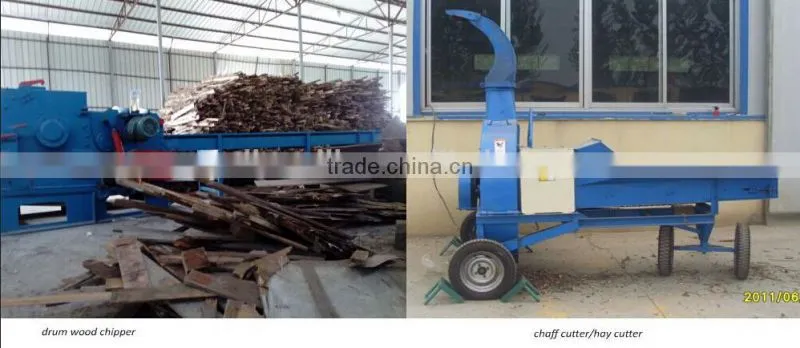

1).Grinding section-wood chipper and hammer mill
Raw material include the following materials :such as trees, palm,branches,grass,straw, olive husk, EFB, rice bran and so on. Wood pellets were made by powder materials, the trunk and branches of trees must be crushed into small chips by wood chipper, then hammer mill grind wood chips or sawdust into powder before granulating.

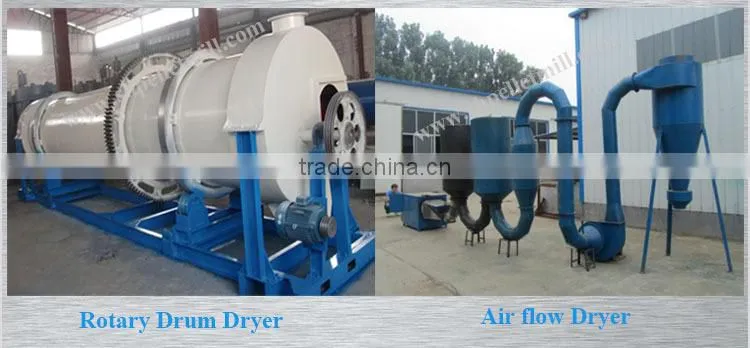

2).Drying section Dryer
The usual moisture of the wood is 40-50%, and the pelleting materisl should be 15%, the redundant moisture must be dryed by this machine, our new type of the dryer with high efficiency, and giving best drying with low cost.

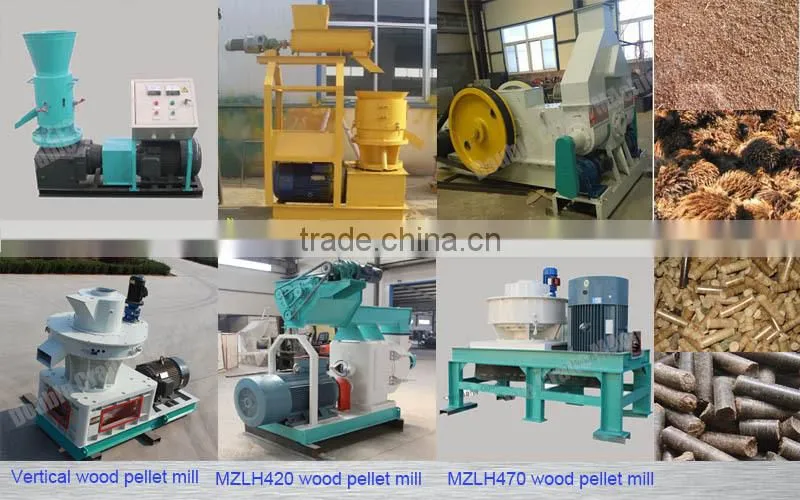

3).Pellet Making Section
Biomass pellet machine takes biomass waste as raw material to make pellet fuel which is a kind of renewable energy replacing fossil fuel. Pelletizing is the process of making waste materials into solid fuel. The objects are used for burning purposes. Wood pellet machine is used to process raw materials into wood pellets. It is the key component of the whole wood production line, which can decide the capacity of the whole wood pellet line .

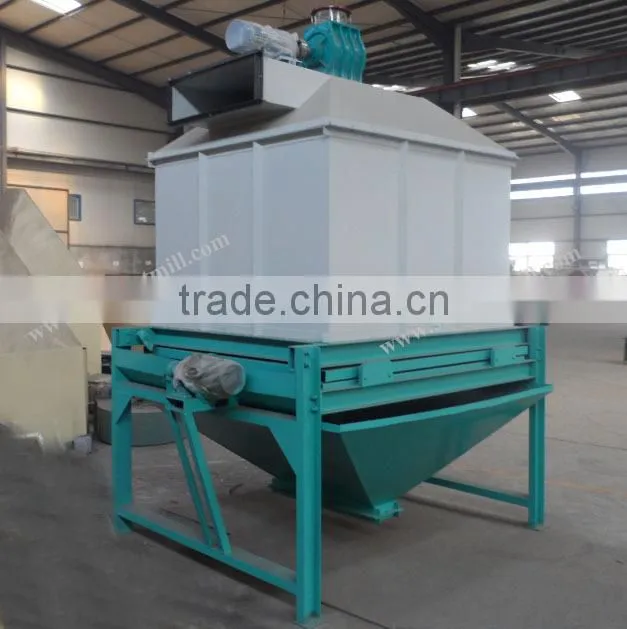

4). Cooling Section
The pellet with high temprature output form the pelleting machine, about 70-90 degrees Celsius, the cooling machine is needed to reduce the temprature for the pellets storing, our counter flow cooler is the usual type of the cooling machine for the pellets, it can give the better result in a short time, with low energy cost.
5). Screening Section
Sieving (remove the dusts and crushed pellets).

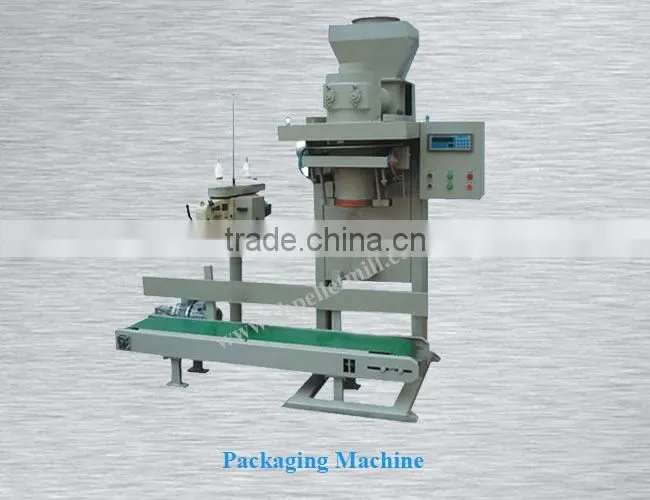

6). Packaging Section
This machine is needed for the wood pellets production plant, that make the pellet in best storing and transporting, reducing the break of the pellet wood.
7).Electric control cabinet
Control the whole pelleting system.
All our machines are approved by CE certification.
All our machines are well packed by thin films inside and wooden case outside.

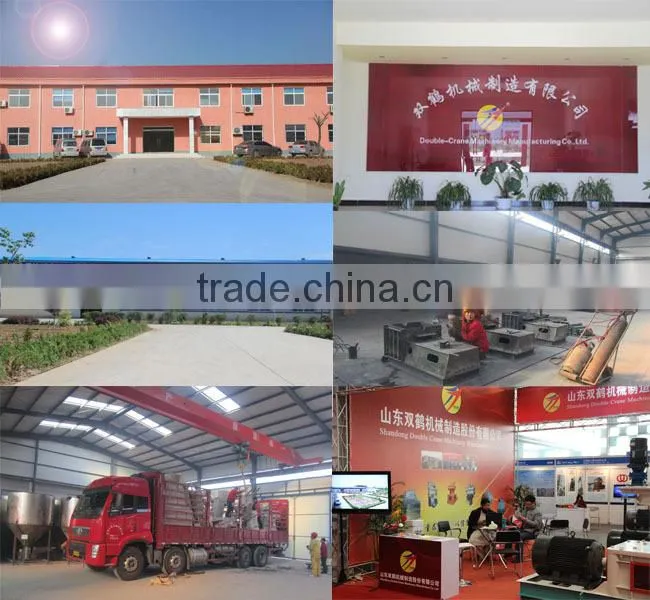

Shandong Double Crane Machinery Manufacturer Co., Ltd. was established in2005. And the factory is located in Leling city, Shandong province and occupies over 60,000 square meters. There are more than 150 workers, 30 mechanical designs and experts and 3 sales team. Adhering to the concept of green, eco-friendly environment and humanisum, by learning domestic and foreigh advancedd technology, we are dedicated to R&D, production and sale of feed machines, biomass energy machines nd organic fertilizer machines. Among them, hammer mills and feed pellet machine are both certified by SGS, CE and ISO 9001. Upon to now, our products have been already exported into more than 30 countries and regions in the world.
They have been enjoyed a high reputation by clients with high quality, reliable service and nice performance. Our factory and business are rapidly expanding in 2015. We sincerely hope to establish a new cooperative relationship with clients in the world. If you are such a client and interested in feed machines, pls don't hesitate and contact us soon. We will repay you best products and best service.
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 10 years of experience in this industry and be able to offer you the best price.
2. Q: How can I get to your company?
A: You can get a flight to Jinan Airport. We are just about 1hours away from Jinan Airport.
3. Q: How long is your warranty period?
A: One Year (Calculated from the equipment arrives the customer’s side).
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Have you sold your products to Europe?
A: Yes, We have designed and installed more than 1000 turnkey pellet lines. Many of our customers are from Europe, including Latvia, France, Greece, Romania, Lithuania, etc.
Pre-sale service:
Provide customers the parameters and confirm necessary technical points
Share photos and videos with clients
Show our factory to clients for checking
On-purchase service:
Keep clients informed of the production progress
Send photos to clients before shipment for checking
Arrange the visa for engineers who will go for guide assembly
After-sale service:
Training and all-around technical guidance for operation, commission and maintenance
Engineers abroad to for guide assembly
Detailed drawings from front view, vertical view, side view.
Please let us know the following details so that we can give you the most suitable project:
1.What are the materials do you want to make pellets?
2.What is the size and the length of the raw material?
3.What capacity do you want?
4.What's the moisture of raw material?
Please feel free to contact us for any question, we will reply within 24h.
