Energy saving turnkey wood pellet production line with CE guarantee
Wood pellet production has been a popular trend nowadays. The necessary equipments such as hammer mill, cyclone separator, material mixing & storage bin, screw feeder, ring die pellet machine, water tank, vibrating screen, bucket conveyor and electric cabinet are all contained.
The general Flow chart when you access in the wood pellet line:

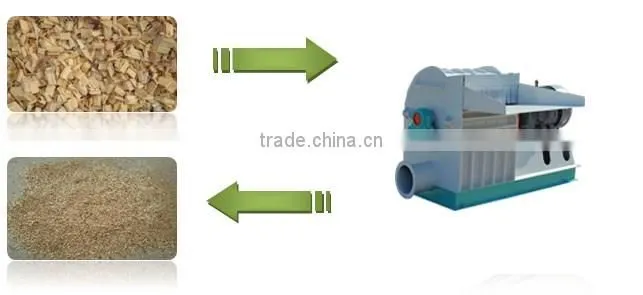

Crushing system

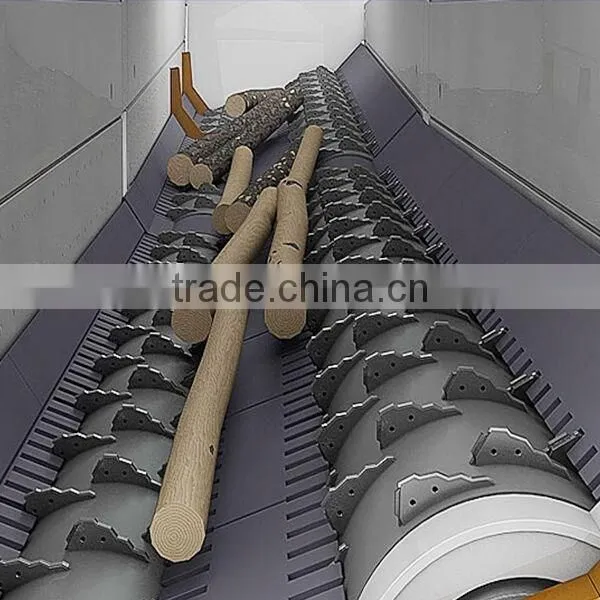

If the raw materials is log, wood chip or other big size materials. Generally, you should crush them at first. Because of the best size of raw materials in pelletizing is 3-6mm. So, based on different materials, wood chipper and hammer mill is necessary.
Drying system
Drying system is a key equipment in making pellet. In other words, the moisture of the crushed materials is very important in processing. If the moisture is high, the pellet will be split at the head. IF the moisture is low, the pellet is difficult to forming. So, the best moisture for pelletizing is 12-16% based on the features of raw materials.
In drying system, Drum drier is the best choice. It consists of drum and hot blast stove. The amount of hot air will be controlled by automatically electrical cabinet and the working speed. This speed can be adjustable.But the price is also very high cause of the big drum and structure. If the investment has a limit, you also can choose air flow drier. This one was always to be selected by clients.

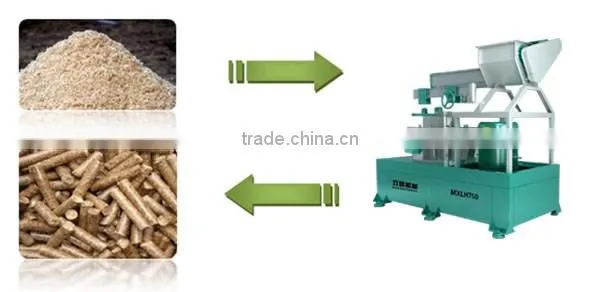

Pellet press system
This is also a key equipment in making pellet. Our wood pellet mill is designed specially for pelletizing all kinds of the wood, such as hardwood and softwood, and we apply different ring die with different compression ratio, whose working principle is extruding between ring die and roller. As my working experiences in this field, the high quality of the pellet is the only way to check the pellet press is good or not.
Choose us means you found a good performance machine that it can offer you the good quality pellet and help you to be a leader of the pellet distributors.
Cooling and sifting system
Help the pellet low down the temperature and to be sure to get high destiny pellet. Sifting system is for cleaning the powder in pelletizing to get the cleaning pellet for packing.
Packing system
After cooling and sifting, packing is the last one job to do. In this part, generally, the client asked bulk bag and small bag. Bulk bag is 1Ton/Bag. The small bag is about 15-30kg/Bag.
You can choose both or based on your situation to select the right one.
Energy saving turnkey wood pellet production line with CE guarantee inner packed by stretch film, outer packed by venner case. This will keed the machines in good condition when shipping.
Shandong Double Crane Machinery Manufacture Co., Ltd. was established in 2009 and is located in Leling city, Shandong Province. We are dedicated to the development and production of feed equipment, biomass energy equipment and organic fertilizer equipment. We have more than 150 skillful employees, there are about 30 of them are design engineers. We had many patents in the industry and our products are popular with customers in many countries. With rapid development, we have passed CE, SGS and ISO9001 certifications and won many honorary titles. To know more about what we can do for you, contact us anytime. We are looking forward to establishing a good and long-term business relationship with you.
1.Technical support online service provided.
2.Technical files service provided,
3.On-site training service provided.
4.Spare parts replacement and repair service provided.
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 10 years of experience in this industry and be able to offer you the best price.
2. Q: How can I get to your company?
A: You can get a flight to Jinan Airport. We are just about 1 hours away from Jinan Airport.
3. Q: How long is your warranty period?
A: One Year (Calculated from the equipment arrives the customer’s side.).
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
5. Q: Have you sold your products to Europe?
A: Yes, We have designed and installed more than 1000 turnkey pellet lines. Many of our customers are from Europe, including Latvia, France, Greece, Romania, Lithuania, etc.
