Pan-type (Disc) Granulator/Pelletizer Machine
Disc granulator machine is pan type granulator for producing bio disc-granulator-design fertilizer,organic fertilizer directly into round ball granules.this type disc granulator machine is usually used in bio organic fertilizer plant to turn bio waste into fertilizer granules,the raw materials for this pan granulator can be animal manure like chicken manure,cow manure,pig manure,straw meal,grass meal and other organic matters,the raw materials moisture required must be at 30-40%.
The disc granulator machine has 3 discharging holes which is convenient for continuous production and reduce the labor intensity. Reduction gears and motor are driven by flexible belts, thus the pan granulator can work stably and reduce impact to improve service life.The bottom of disc adopts several radiation steel plates to strength its durability. Granulating gears are made from high-frequency quenching materials; with the lining of glass fiber reinforced plastics, the granulating disc is anti-corrosion and durable.
1.Raw materials for disc granulator
Raw materials for making organic fertilizer can be animal manure like chicken manure,sheep manure,cow manure, organic waste, straw meals,grass meals,human waste and so on. Beside you can also add some micro element like compound materials.
2.Working principle of disc granulator
Adjust the disc angle between 40 ° -55 ° degrees. Raw material powder in a fertilizer mixer is evenly moistened by atomized water , then delivered the raw materials into the fertilizer pan granulator.The materials powder are added directly into the disc granulator machine, and pan granulator will rotate in specific speed . Due to adhesion and plasticity of the material, the granules bond with each other and grow up gradually in the course of the campaign.
3.Technology parameter
|
Model |
Capacity(t/h) |
Power(kw) |
Diameter(mm) |
Weight(t) |
Dimension(mm) |
Shaping Rate(%) |
YQJ-1200 |
1-2 |
7.5*2 |
2-10 |
1.1 |
2150*1300*1400 |
95 |
|
YQJ-1600 |
2-4 |
11*2 |
2-10 |
1.75 |
2800*1700*1600 |
95 |
|
YPZ-1800 |
1-2 |
5.5 |
2-10 |
0.8 |
1800*1800*2400 |
95 |
|
YPZ-2600 |
3-5 |
7.5 |
2-10 |
2.1 |
2600*2000*2600 |
95 |
|
YPZ-2800 |
4-6 |
11 |
2-10 |
2.5 |
2800*2200*2600 |
95 |
All our feed pellet mills was approved by CE certification and SGS certifcation.
All our feed pellet mills were packaged by stretch film inside and wooden cases outside.
About Us

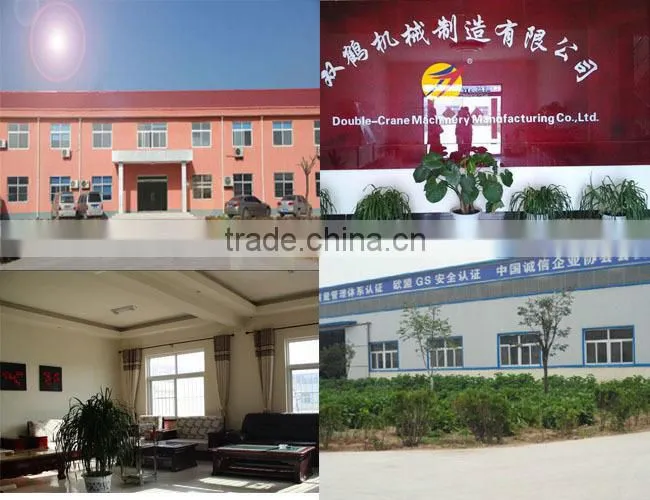

Shandong Double Crane Machinery Manufacture Co., Ltd. was established in 2009 and is located in Leling city, Shandong Province. We are dedicated to the development and production of feed equipment, biomass energy equipment and organic fertilizer equipment. Our company employs 150 skillful personnel. Therefore, we can easily meet your requirements. Thanks to our powerful distribution network, our products are popular with customers in many countries. With rapid development, we have passed CE, SGS and ISO9001 certifications and won many honorary titles. To learn more about what we can do for you, contact us anytime. We look forward to establishing a good and long-term business relationship with you.
Please let us know the following basic information for making project:
1. What are the raw materials do you want to make pellets?
2. What is the water content of the raw material?
3. What capacity do you want for an hour?
4. What is the shape do you want for the finished product? Round or cylindrical?
