Animal feed soybean meal flour mixer
Mixing is one of the most important operations in animal feed production. And mixer is considered to be the heart of feed milling operation. SHJ series, named single shaft double screw mixer, is a animal feed mixer for mixing of dry granules, powders and feed additives. SHJ series animal feed mixer is mainly used to mix the feed ingredients with other micro-ingredients such as vitamins, amino acids, trace elements and other feed additives in the feed pellet production process.
Stainless steel and carbon steel mixers are choosable. It has characteristics of high efficiency, reasonable structure, compact layout, reliable performance and easy maintenance.
1. Features & Advantages
a. Equipped with motors with different voltages, the mixer's capacity ranges from 100KGS to 2000KGS, which is nicely suitable to small, medium and large scale feed factories.
b. Novel rotor structrue keeps mixing uniformity without segregation.
c. Chain-driving design keeps stable transmission.
d. Installing oil pipelines makes overall structure of the machine is more reasonable and aesthetic.
e. Double layers design on two ends of the machine prevents materials from leaking.
f. Three opening ways of the discharging port can be choosable: penumatical; electric; manual.
g. The gap between the rotor and the machine enclosure can be adjustable, which makes
large door or full door design on the bottom of the machine become possible.
2. Technical parameters:
| SHJ-100 | SHJ-250 | SHJ-500 | SHJ-1000 | SHJ2000 | SHJ-3000 | SHJ-5000 | |
| Capacity(kg/batch) | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 |
| Power(kw) | 3 | 4 | 11 | 22 | 30 | 37 | 45 |
| Actual volume(m3) | 0.35 | 0.59 | 1.15 | 2.28 | 4.4 | 6.8 | 11.5 |
| CV | 5% | 5% | 5% | 5% | 5% | 5% | 5% |
| Mixing times(Min) 3~5min |
3. Product Application
SHJ series soybean meal mixer has a central shaft with blades angled in different ways that look like ribbons of metal wrapped around the shaft, and is able to move in different directions at the same time, ensuring that all ingredients are blended in. Our single shaft double screw mixer is mainly used in the animal feed powder production line and feed pellet production line. The machine can also used with other auxiliary equipments such as vertical lift convoyer or inclined conveyor to mix the granules and powder for animal feed production.
4. Main parts
5. Feed grinder and mixer group

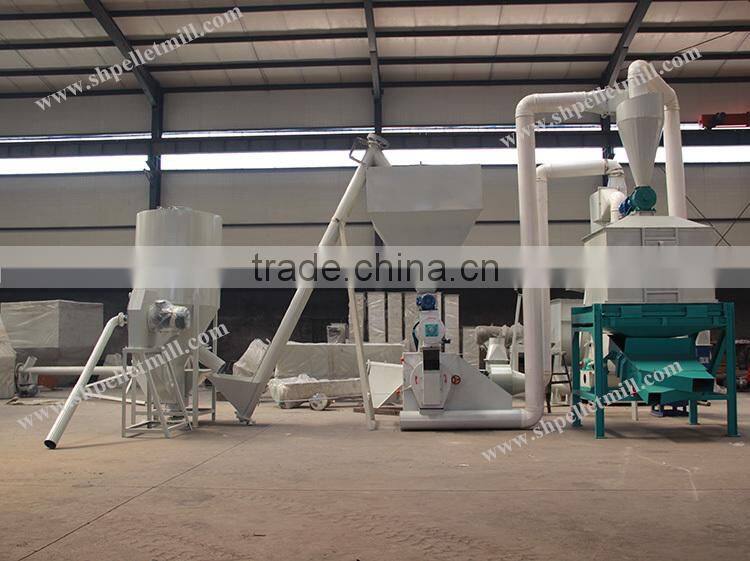

Small feed hammer mill and SHJ series flour mixer group a machine set.
Except SHJ series soybean meal mixer,there are other flour mixers to be choosable for you.
Double Crane are able to choose a more adapted packing ways for you such as wooden case and iron case. Pls kindly tell us your idea, we will immediately design a better project with reasonable shipping charges and reliable packing to suit to your requirements.
a. Technical support online service provided.
b. Technical files service provided.
c. On-site training service provided.
d. Spare parts replacement and repair service provided.
Shandong Double Crane Mchinery Manufacturer Co., Ltd. was established in 2005. And the factory is located in Leling city, Shandong province and occupies over 60,000 square meters. There are more than 150 workers, 30 mechanical designers and experts and 3 sales team.
Adhering to the concept of green, eco-friendly environment and humanisum, by learning domestic and foreigh advancedd technology, we are dedicated to R&D, production and sale of feed machines, biomass energy machines nd organic fertilizer machines. Among them, hammer mills and feed pellet machine are both certified by SGS, CE and ISO 9001. Upon to now, our products have been already exported into more than 30 countries and regions in the world. They have been enjoyed a high reputation by clients with high quality, reliable service and nice performance.
Our factory and business are rapidly expanding in 2015. We sincerely hope to establish a new cooperative relationship with clients in the world. If you are such a client and interested in feed machines, pls don't hesitate and contact us soon.
Welcome to visit our website: .
SMALL POULTRY FEED MILL
COMPLET ANIMAL FEED PRODUCTION LINE
