Help CenterNingbo Factory Custom Hydraulic Valve Block
Related Products
Specifications
Aluminium Hydraulic Valve BlockIron Hydraulic Valve Block
Steel Hydraulic Valve Block
Casting Hydraulic Valve Block
ISO9001
1.The

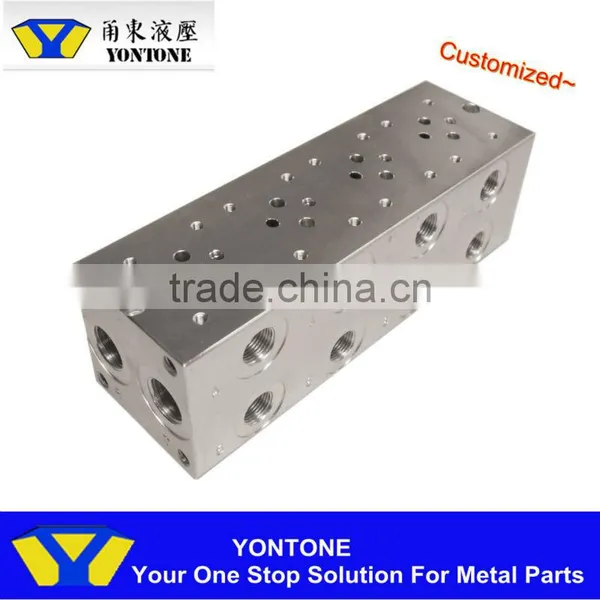

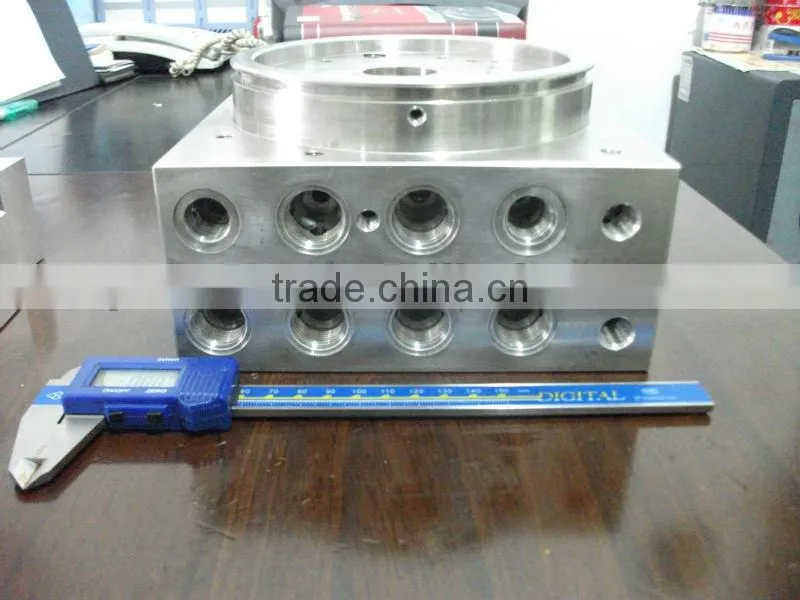

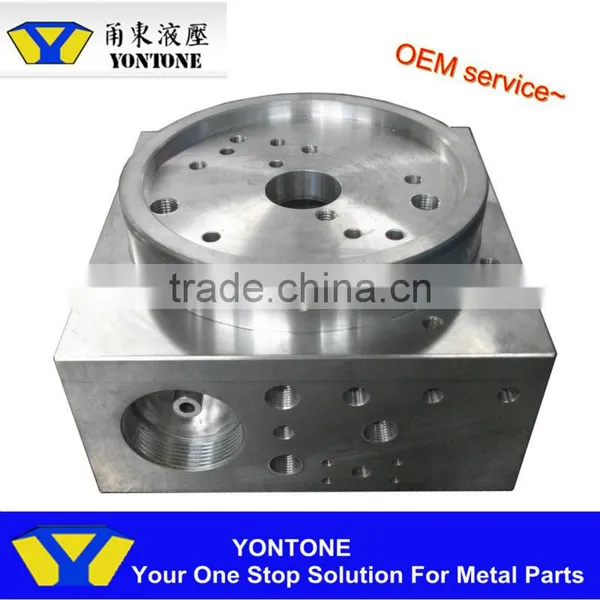

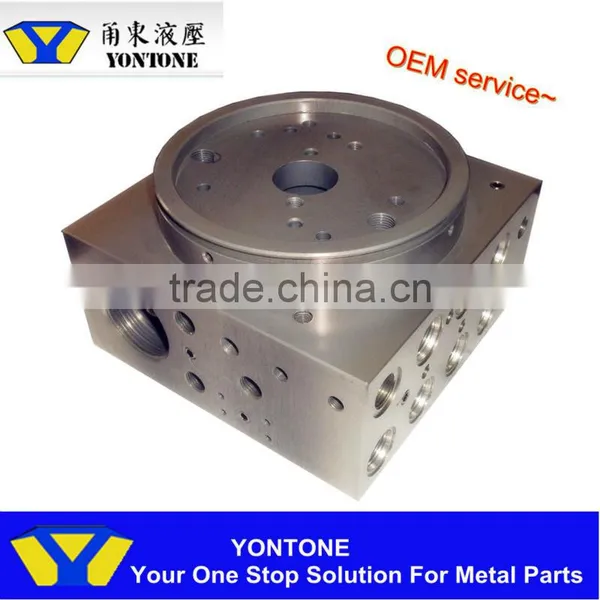

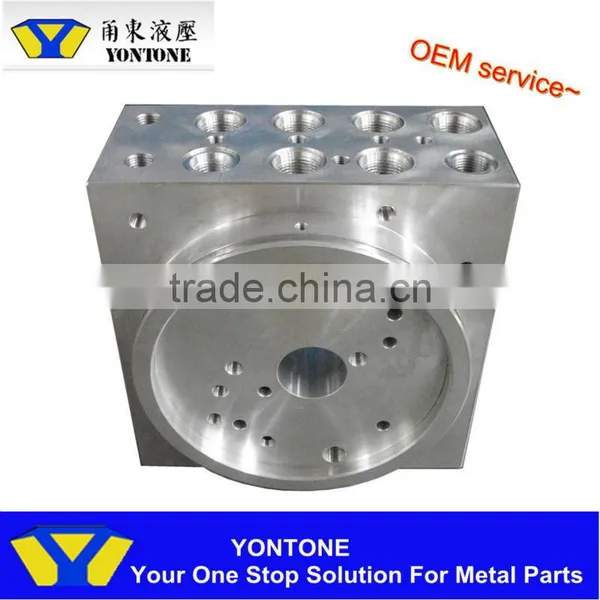

Hydraulic Valve Block
1.ports on all kinds of bodies are BSPP as standard or the metric system. Special ports on require.
2.All the seals are in BUNA N as standard.
3.Recommended fluid is oil.
4.Recommended filtration level is of 25 microns or better.
5. Compact hydraulic system, easy installation, assembly period short
6. OEM acceptable, according to customer's requirements
7. If the hydraulic system changes, change the working conditions need to change components, the assembly easily and quickly
8. Hydraulic tube-free connection between devices, eliminating for tubing, pipe joints and other leakage, caused by vibration and noise
9. The hydraulic system configuration flexibility, neat appearance, maintenance is easy
10. A standardized, generic and high level of integration
11. Manifold block is made of hydraulic valves and valves body.
12. It make adjustment for direction of hydraulic oil, pressure, flow regulation
13. Manifold block features light weight, small resistance, impact and low cost
14. Manifold block is composed of integrated hydraulic components (such as threaded cartridge valves, stack valves)
15. If use integrated hydraulic components for hydraulic system, no need extra connection block, but use directly its own body as a composite body
16. Role of manifold block depend on which hydraulic components are included. Different hydraulic components have different functions. If relief valve, throttle valve and directional valve are included in the manifold block, so it functions pressure regulation, speed adjustment and direction change.
1.Material: Grey iron, ductile iron, iron alloy, high strength aluminum or high quality steel
magnesium, AZ31B, AZ91, AZ31, ZM5, ZM6, MB8
aluminium, 2024, 6061, 6082, 7075, 5052, etc.
iron Q235, A3, 45C, 40CrMo, ect.
2Assembled with cartridge valve
3.good quality
4.Customized
CNC machining Material |
Steel, Zinc, Aluminium, Brass, Copper, Bronze, ADC12, A380, ALSI9CU3, ALSI12FE, A390, ADC14, Aluminium alloy, steel alloy, magnesium alloy, AZ31B, 1045 steel, sus304, 45cr, 40cr, 38crsi, etc. |
Surface treatment |
Nickel plating, zinc coating, chrome plating, and oxidation, Polishing, chrome plating, |
CNC machining Tolerance |
+/-0.02mm( iron parts), +/-0.01mm( Aluminium parts) |
Thread |
NPT, BSP, M, GHT, UN, NPSM, BSPT, CHT, NPTE |
CNC machining main processes |
Machining, drilling, threading, knurling, turning, drilling, stamping, casting, die casting |
QC control |
IQC Incoming quality control, IPQC In-process quality control, Outgoing quality control. 100% inspection on critical dimensions before shipping. |
CNC machining Production range |
505mm*800mm*505mm (Maximum size) |
Developing experience |
Hundreds of new parts be developed according to customers' drawing and samples |
Supply chain process |
PPAP |
Package |
Standard neutral export carton box, wooden pallet or according customers' requirement. |
Payment terms |
T/T in advance, L/C or negotiated. |
Surface roughness |
0.2-1.6 |
Country exported |
Italy, Australia, US |
Machine used |
CNC lathe, CNC machining center, punch machine, EMD machine |
|
|
Ningbo Beilun OEM Factory Pictures:
1. Working Hour: -------------- 7:00AM--10:00PM (Beijing Time)
0:00AM--3:00PM (European Time)
3:00PM--6:00AM (LA Time)
7:00PM--10:00AM (Toronto Time)
2. Working Days: -------------- 7days a week, 365 days a year.
3. Feedback Time: ------------ with in 12 hours
Quotation Time: with in 48 hours
4. Lead Time: ------------------ Sand casting mould 15days.
Sand casting parts depend on the quantity you order, 1-15days not including the mould making
time.
5. Manufacture schedule: -- we report our production schedule to customers everyday by mail or photoes, it's just like the
production is happened under your nose.
6. Speed delivery:------------- The shipping date never late than settled. ( expect for force majeure.)
7. Quality control:-------------- Both in-house QC and lab test provided. Test report along with delivery according to
customer's request.
8. Ningbo Beilun Yontone Hydraulic Technology Co., Ltd. is a manufacturer who can provide you one stop solution for all metal products. We can provide you from designing to delivery.
The manufacturer process could be like this:
1.mould making
2.casting ( die casting, sand casting, gravity casting, low pressure casting)
3.machining
4.welding (optional)
5.surface treatment (optional)
6.QC and package,
7.delivery.
Material could be aluminium, brass, copper, iron, steel, magnesium, zinc, etc.
Or the process could be like this:
1.material purchasing( billet aluminium 6061, 7075, 2024, iron tube, steel bar, brass block and magnesium block, ect.), or the material can be done by forging or extrusion,
2.machining,
3.welding, (optional)
4.surface treatment, (optional)
5.QC and package,
6.delivery.
If you are interested in our honed hydraulic cylinder tube products , welcome to place your inquiry!
We are located in east of China, near Ningbo Seaport. Welcome to visit our factory. st52
valve block double block bleed valve hydraulic block valve double block and bleed valve block valve hydraulic valve block stainless steel double block and bleed valve block bottom valve bags block expansion valve block and bleed valve block bottom valve bag block gate valve manual block valves pneumatic valve block double block and bleed ball valve pp cement block bottom valve bag pp block bottom valve bag cement block bottom valve bag bottom block valve bag
