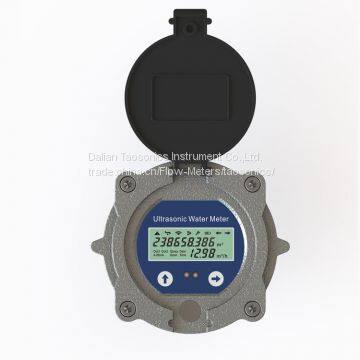

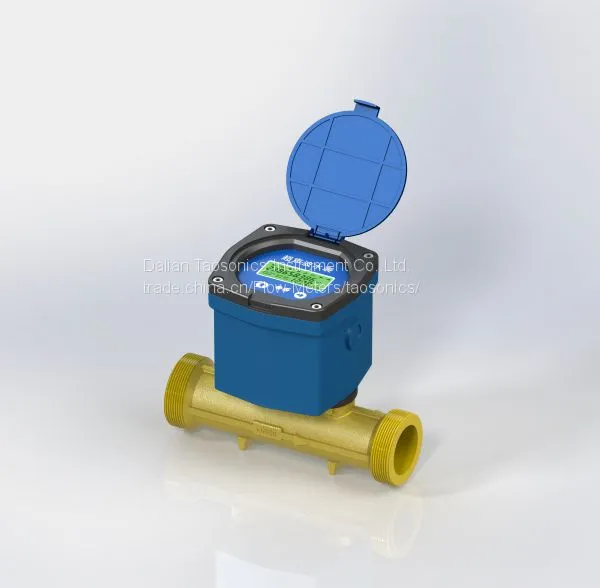

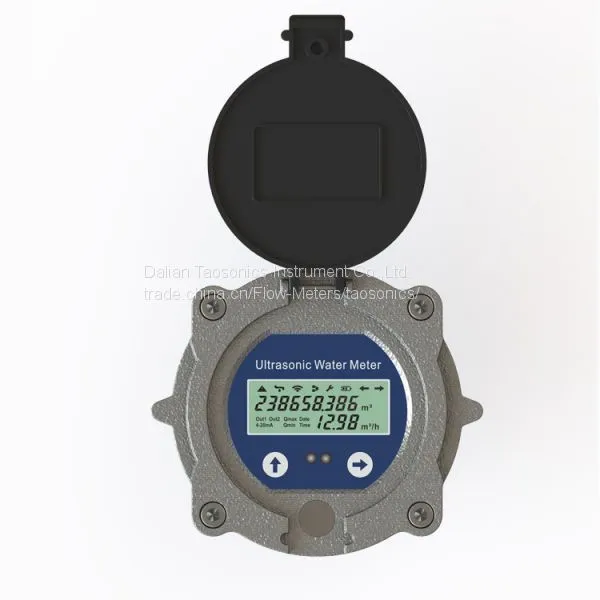

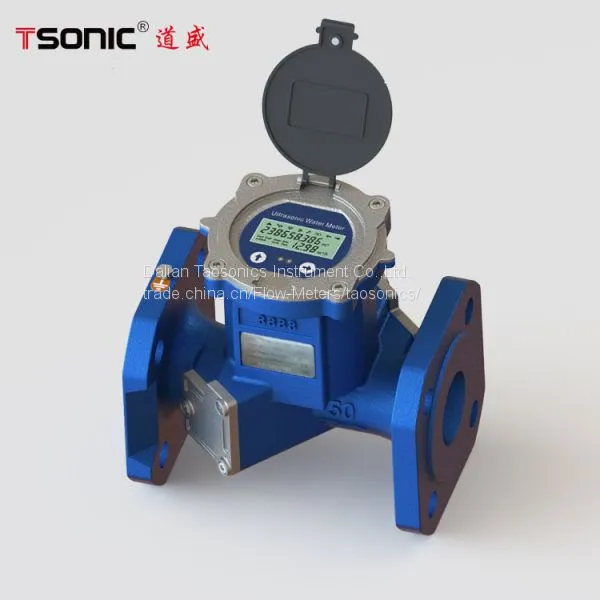

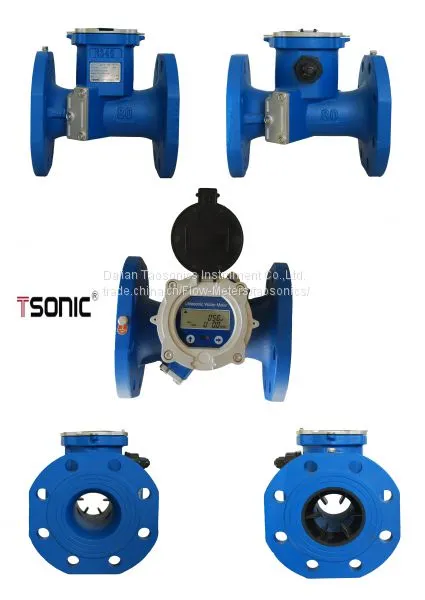

Help CenterUltrasonic Water Meter
US$ 95.00 - 600.00
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
TSONIC
Place of Origin:
China
Model Number:
T3-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
3 days
Related Products
-
Ultrasonic Water MeterUS$ 120.00 - 160.00MOQ: 1 Piece -
Handheld Poratble Ultrasonic Flow MeterUS$ 285.00 - 400.00MOQ: 1 Set
-
Ultrasonic Flow MeterUS$ 185.00 - 400.00MOQ: 1 Set
-
Ultrasonic Flow MeterUS$ 185.00 - 400.00MOQ: 1 Set
-
Handheld Ultrasonic Flow Meter for Accurate Liquid Flow MeasurementNegotiableMOQ: 100 Sets
Brand Name
TSONIC
Place of Origin
China
Model Number
T3-1
| Place of origin | China |
| Brand | TSONIC (OEM is available) |
| Standard | ISO4064-2005; GBT778-2007 |
| Linearity | 0.50% |
| Repeatibility | 0.20% |
| Measurement fluid | Water, sea water, sewage, (Full of pipeline) |
| Fluid temperature | 0.1℃~30℃ |
| Working environment | Temperature:-10~45℃; Humidity≤100% |
| Pressure | 1.6 MPa(2.5 MPa can be customized) |
| Straight pipeline | Upstream: 3D； Downstream: 0D (D means outer pipe diameter) |
| Climatic and mechanical | C class |
| Electromagnetic compatibility class | E2 |
| Communication Interface | RS485/USART/Infrared |
| Output | OCT/TTL/4-20mA |
| Power supply | Built-in Lithium batteries(3.6 V,19Ah, 8 years' operation); DC8~36V; 2-wired 4~20mA |
| Protection class | IP68 |
| Display | 9-digit accumulative flow; 4-digit instantaneous |
| Unit | Accumulative flow unit: m³，feet³, GAL, L Flow rate unit: m³/h, GPM, L/m |
| Data Storage | EEPROM/FLASH |
| Measurement cycle | Measuring: Once/second; Verification:4 times/second |
Email: sales01(at)tuf-2000.comSkype: taosonics01(at)outlook.com
Tel: +86-411-84179922HP: 180 0426 1213
http://www.t3-1.com/englishhttp://www.tuf-2000.com/english/
