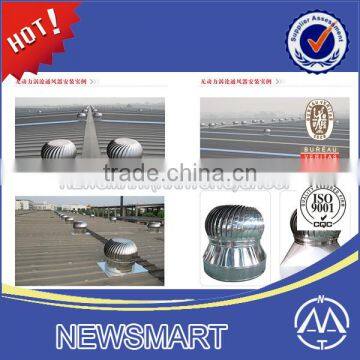

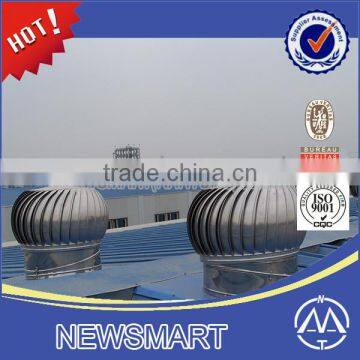

Natural Force Ventilator | Ventilation Shield | Roof Ventilator
- shanghai for natural force ventilator
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Electric Current Type | Other, unpowered | Blade Material | Stainless Steel | |
| Mounting | Roof Fan | Place of Origin | Jiangsu, China | |
| Brand Name | NEWSMART for natural force ventilator | Model Number | OEM for natural force ventilator | |
| Power | none for natural force ventilator | Voltage | NONE | |
| Air Volume | according to different type for natural force ventilator | Speed | according to different type for natural force ventilator | |
| Certification | CSA, CE, CCC, UL, GS, ROHS, Other, CSA, CE, CCC, UL, GS, ROHS, according to customer's inquiry for natural force ventilator | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
ISO9001:2008We can make different type of natural force ventilator according to customer's special inquiry

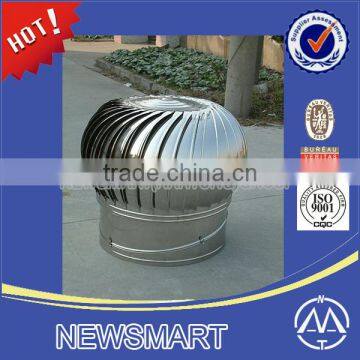

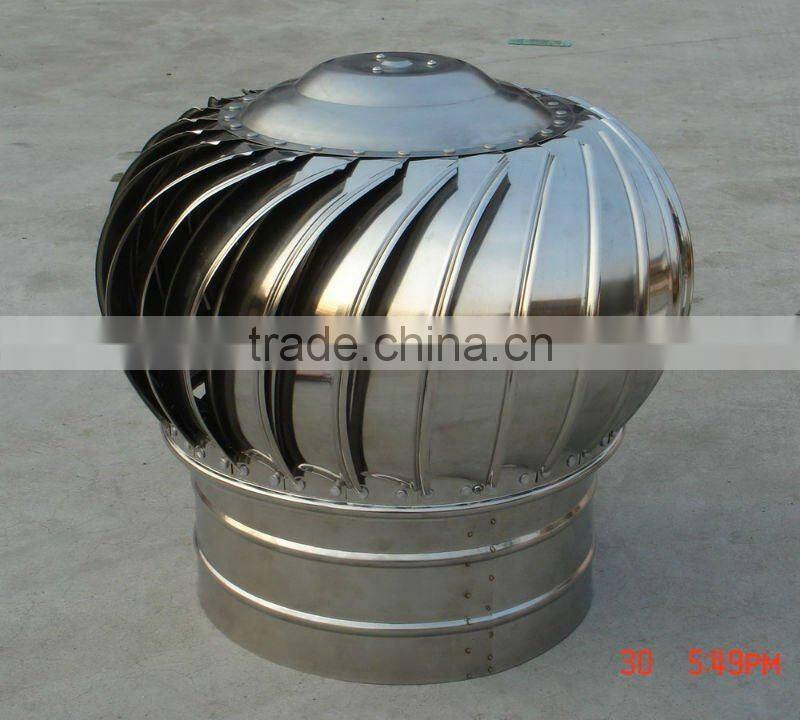

natural force ventilator
As used under special condition or users special require, we can also supply these kinds of ventilator with other material: aluminum alloy coated with flurocarbonile polyester, and glass fiber reinforced plastics(GFRP).
Material: Stainless steel
Operation efficiency:
1. Exhaust volume is 2779M3 under the wind speed of 8 kilometers/hour
2. Be operational in the breeze with wind speed of lower than 2 kilometers/hour
Bearing: Bearing made in Japan, stainless steel protective cover, free from adding lubricant
Turbine vane 26, 32, 42 stainless steel combined type vane
Turbine structure and support: Stainless steel with cast aluminum composition
Period of quality guarantee: 15 years

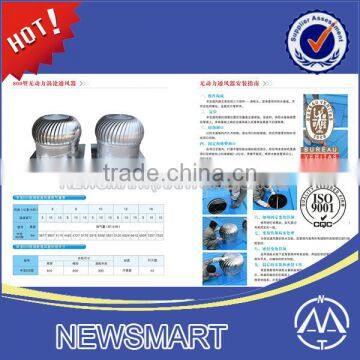

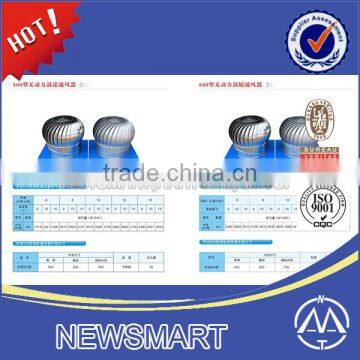

Exhaust volume of 500 type natural exhaust fanTable 1
Wind speed (kilometer/hour) | 6 | 8 | 10 | 12 | 16 | |||||||||||
Temperature difference | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | 5 | 10 | 15 | |
Model | Height | Exhaust volume (M3/hour) | ||||||||||||||
500 type | 3m | 1918 | 2241 | 2281 | 2574 | 2725 | 2827 | 2844 | 2956 | 3015 | 3132 | 3345 | 3485 | 3920 | 4140 | 4285 |
6m | 2118 | 2501 | 2595 | 2779 | 2918 | 3015 | 3081 | 3219 | 3305 | 3351 | 3578 | 3725 | 4516 | 4764 | 5033 | |
9m | 2280 | 2736 | 2872 | 3070 | 3142 | 3325 | 3359 | 3478 | 3530 | 3716 | 3967 | 4133 | 4739 | 5180 | 5395 | |
12m | 2416 | 2930 | 3075 | 3234 | 3234 | 3565 | 3603 | 3705 | 3945 | 4002 | 4269 | 4447 | 4843 | 5309 | 5687 | |
Specification and modelTable 2
Model | Shape dimension | Material | Number of vanes | ||
| Height | Inner diameter of turbine | Inner diameter of turbine |
|
|
500 | 600 | 500 | 620 | Stainless steel | 32 |
505 | 800 | 505 | 620 | Stainless steel | 26 |
600 | 700 | 600 | 760 | Stainless steel | 32 |
800 | 850 | 800 | 920 | Stainless steel | 42 |
