MARINE CAST IRON 10Kgf/cm2 SWING CHECK VALVES
1.Standard: JIS F7373
2.Size: DN50~DN300mm
3.Material: Cast iron
4.Pressure: 10Kgf/cm2
Marine Cast Iron Check Valve ( 10Kgf/cm2 )
Check valve is a valve that the valve plate moves along the vertical direction in the pipeline.
Advantages of check valve:
1.Small fluid resistance
2.The torque for opening and closing is small, so it is easy to open and close.
3.The medium flowing direction is not restricted, and it doesn’t disturb flowing and reduce the pressure of pipeline.
4. Short length structure
5. Good sealing performance
6. Simple shape, good casting process, widely used.

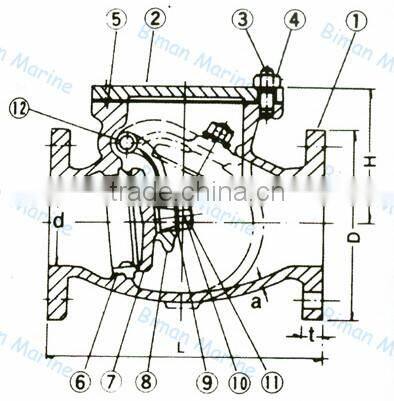

Specifications about Marine Cast Iron Check Valve ( 10Kgf/cm2 )
| MARINE CAST IRON 10Kgf/cm2 SWING CHECK VALVES (JIS F 7373) | |||||||||
| d (mm) | 50 | 65 | 80 | 100 | 125 | 150 | 230 | 250 | 300 |
| L(mm) | 120 | 130 | 140 | 160 | 180 | 205 | 17 | 290 | 320 |
| A (mm) | 10 | 11 | 11 | 12 | 13 | 14 | 475 | 20 | 22 |
| H (mm) | 255 | 270 | 275 | 315 | 360 | 405 | 355 | 570 | 645 |
| Weight (kg) | 18.2 | 25.4 | 27.4 | 40.6 | 69.9 | 81 | 200 | 211 | 293 |
Marine Cast Iron Check Valve ( 10Kgf/cm2 )
Other Related Valves:
Valves: Butterfly Valve ; Globe Valve ; Gate Valve ; Check Valve ; Angle Valve
Water Pump: Centrifugal Pump; Vortex Pump ; Jet Pump ; Bilge Pump
Sewage Pump: Submersible Sewage Pump; Sewage Crushing Pump
Fire Pump: Portable Fire Pump; Fixed Fire Pump ; Diesel Emergency Fire Pump
Oil Pump: Gear Oil Pump; Hot Oil Pump; Self-priming centrifugal oil pump
Other Biman Valves
Why Choose BM
A. Excellent service before purchasing
B.M know what the best cost-effective products are. According to clients’ circumstances, we will offer most suitable products for them.
B. Guaranteed quality
Most products which B.M offered are with high quality and also provide warranty to security benefits.
C. Rich experience and Customized Products
B.M has enormous resources of various marine equipment. All of our products are customized.
We can offer products according to your detail equipment and drawings.
FAQ
How to order Valves from Biman?
- Please tell us the Size, Pressure and Quantity and other request you need.
- If you have the certificate requirements, please let me know.
- We'll make quotation for you. After your confirmation, PI will send to you.
- We'll arrange the order for you after receiving your payment
- After the goods finished, we send the goods to you and tell you the tracking number.
