Specifications
rebar coupler threading machine HZG-40Specially applied in construction engineering, such as bridges

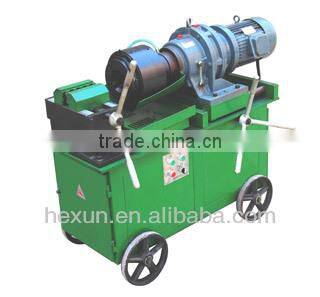

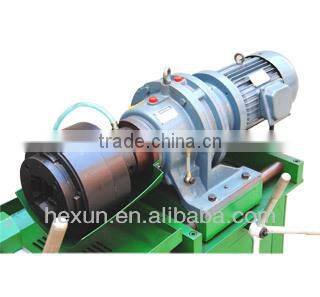

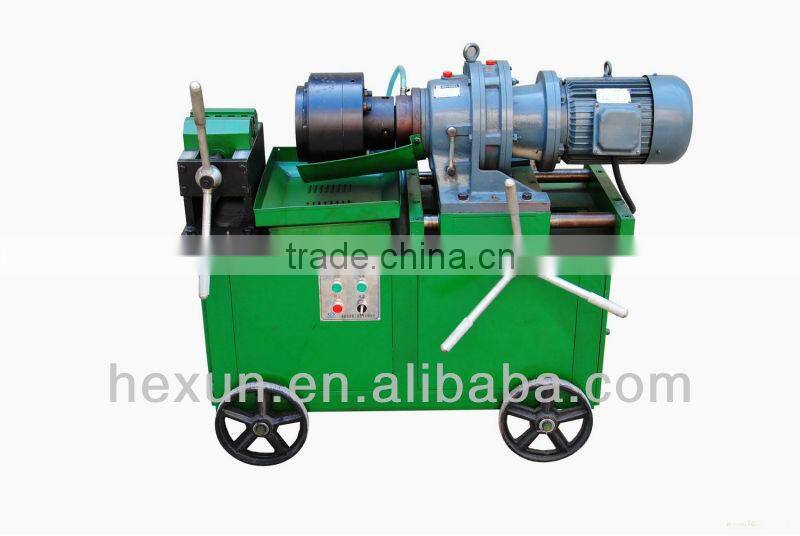

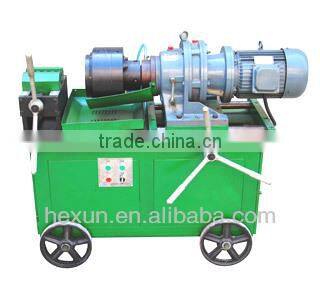

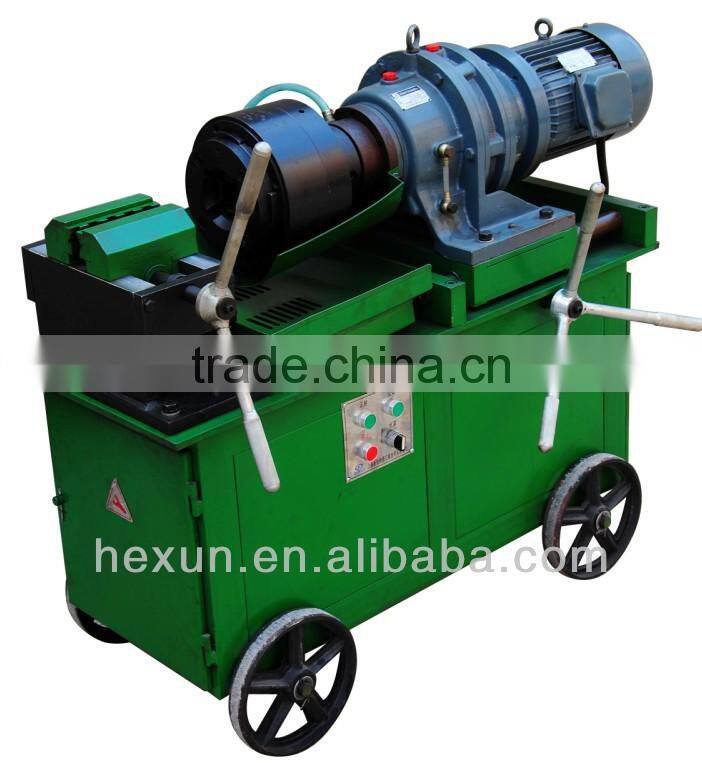

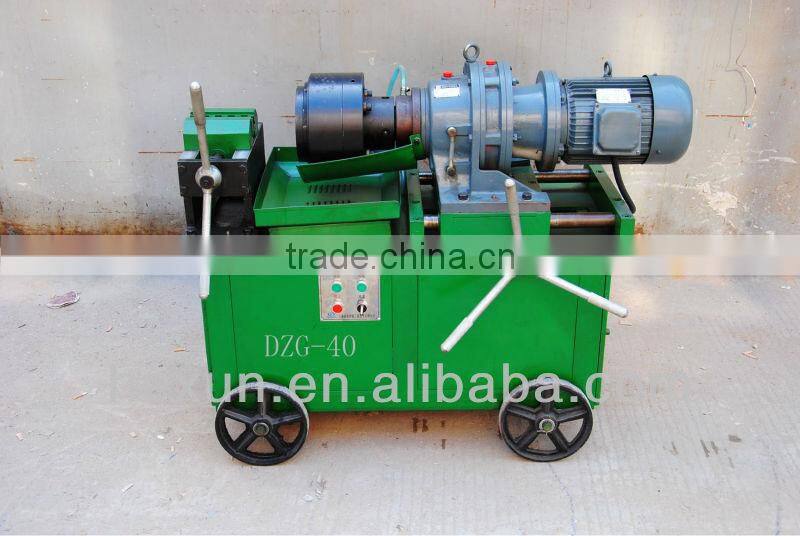

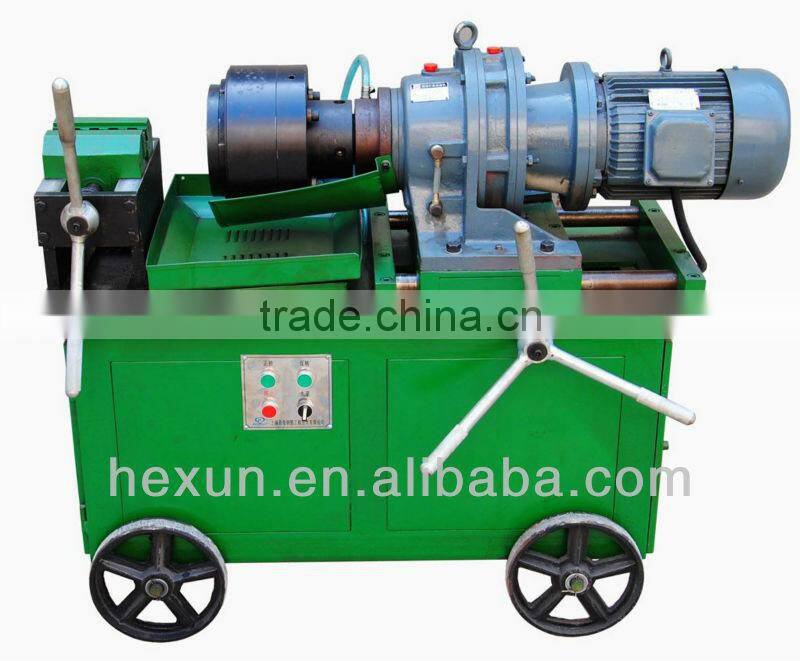

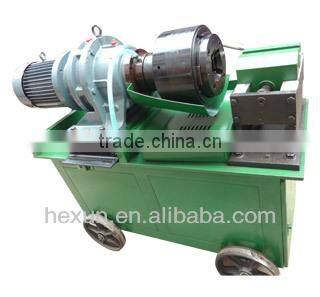

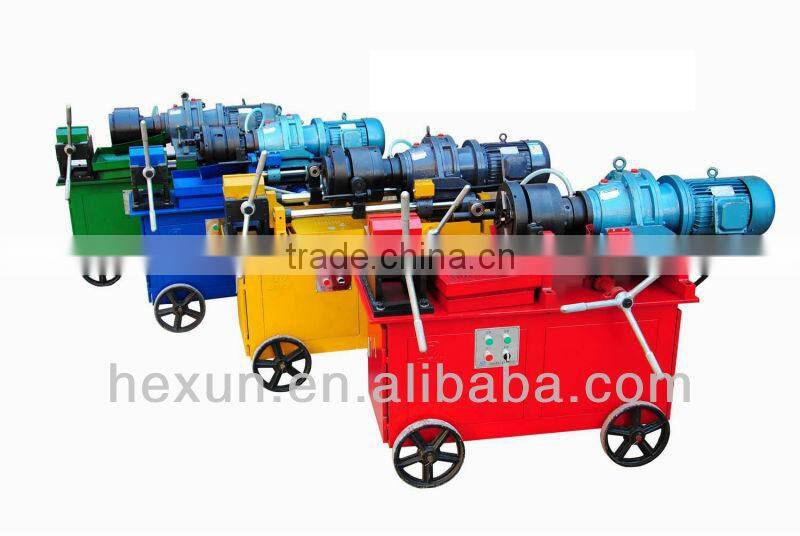

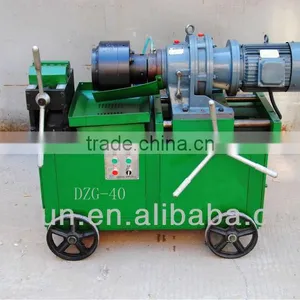

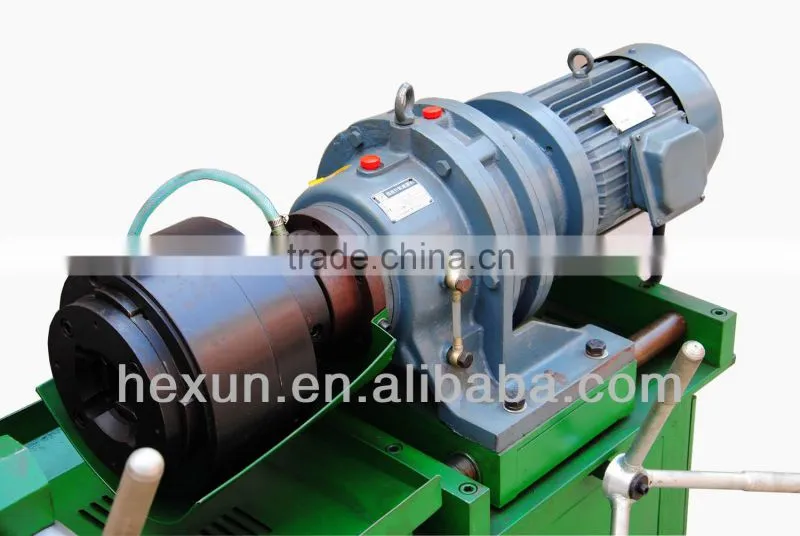

rebar coupler threading machine HZG-40
Applications
HZG-40 rebar rolling straight thread machine tool is mainly applied for machining construction engineering rolling straight thread ends with ribs. As the key equipment to realize rebar connection, it can machine φ16-φ40mm HRB335-500 ribbed rebar.
Features
Specially applied in construction engineering, such as bridges, rebar cage piling, etc.
The rebar has no ribs. Based on guaranteeing the performance of rebar connection, the tension area and tensile strength of the rolled rebar end increases by 2.5% and 6% than that of base material, thus making the tension resistance strength of the rolled rebar end higher than the practical limit strength of the base material;
Adopting unique spiral angle lifting technology, convenient and rapid for thread tightening, improving working efficiency;
Four rolling thread wheel large angle design, the teeth of the machined thread are rich and smooth, higher concentricity;
Three points in one line, high concentricity, high stability;
Rebar realizes easy feeding, automatic return after thread rolling of the machine tools, daily production of 600-900 pieces of thread heads every day;
Machinable rebar screw length ≥120mm.
Main Technical Parameters
1,Main motor power: 4KW 8A;
2,Power supply: triphase 380V 50HZ
3,Reducer speed ratio: 17, 23, 29 shaft output revolution (82-48) r/min;
4,Machined rebar diameter scope: Φ16-Φ40mm(HRB335, HRB400, 500)
