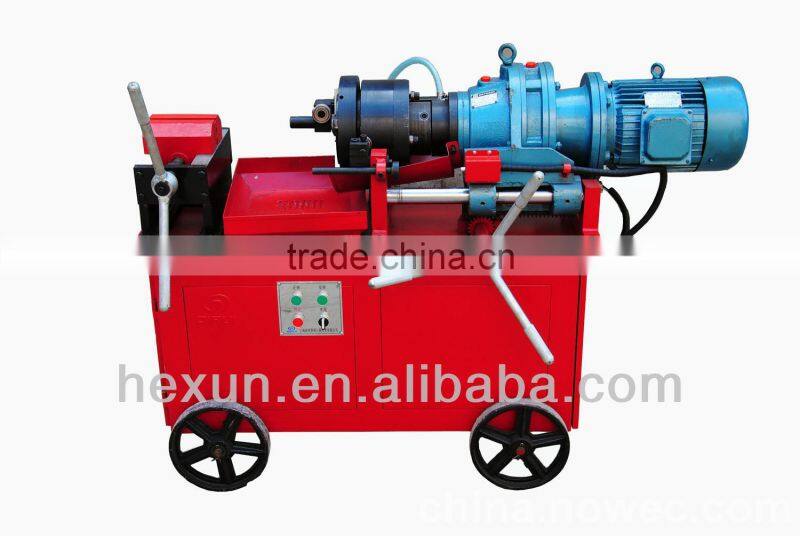

steel bar twist machine HBG-40C
- 200 Set / Sets per Month
- NINGBO
- T/T Credit Card
You May Like
Product Details
| Condition | New | Application | process thread on rebars | |
| Production Capacity | 82 - 48r/min | Place of Origin | Zhejiang, China | |
| Brand Name | HAO BAO | Model Number | HBG-40C | |
| Voltage | 380V 50HZ | Power(W) | 4000 | |
| Weight | 410 | Certification | ISO9001:2008, ISO9001:2008 | |
| Warranty | factory policy | After-sales Service Provided | No overseas service provided |
Product Description
Specifications
steel bar twist machine HBG-40CIntegrated design of tool rest and tool apron,high roundness of threads
steel bar twist machine HBG-40C
Applications
HBG-40C rebar rib stripping and rolling straight thread machine tool is mainly used in machining construction engineering rolling straight thread heads with ribs. As the key equipment to realize rebar connection, it can machine φ12-φ40mm HRB335-500 ribbed rebar.
Features
Completing machining of rebar threads at one time and the teeth of the machined threads are rich and smooth;
Innovative headpiece structure design, adopting straight shaft stepless circulated adjustment, effectively reducing the loss of rolling thread wheel;
Adopting unique spiral angle lifting technology, convenient and rapid for thread tightening, improving working efficiency;
Integrated design of tool rest and tool apron, high roundness of threads;
Three points in one line, high concentricity, high stability;
Rebar realizes easy feeding, automatic return after thread rolling of the machine tools, daily production of 600-900 pieces of thread heads every day;
Machinable rebar screw length ≥80mm.
