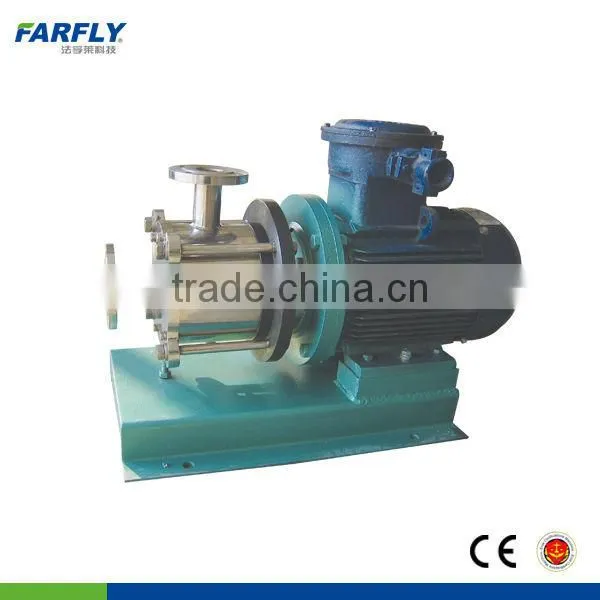

Help CenterFSW3 Pipeline High-Shearing Homogenizing Machine, Cell Homogenizer, Cell Pump
Related Products
-
Herbicide High Shearing Emulsifier,homogenizerUS$ 10,000 - 100,000MOQ: 1 Set -
Paint Coating Pesticide Agrochemicals Pesticide High Shearing EmulsifierUS$ 10,000 - 80,000MOQ: 1 Set
-
FSL Laboratory High-Shearing Dispersing EmulsifierUS$ 2,000 - 5,000MOQ: 1 Set
-
Laboratory Pipeline High-Shearing EmulsifierUS$ 2,000 - 5,000MOQ: 1 Set
-
High Efficiency Good Price High Shearing EmulsifierUS$ 1,000 - 5,000MOQ: 1 Set
The high emulsifier is capable of distributing more than one phase into another continous phase efficiently, even-ly, swiftly, whereas, usually they are insoluble to each. Due to the strong energy caused by the high velocity and high-frequency mechanical effects of the rotor, the materials subjected to strong mechanical and hydraulic shear, centrifugal squeeze, liquid friction, impact, tear, and comprehensive force, the mutually insoluble liquid, solid and gas phases are evenly, finely dispersed and emulsified immediately. By repeating this continously, we get stable high-quality products.
Technical Specification

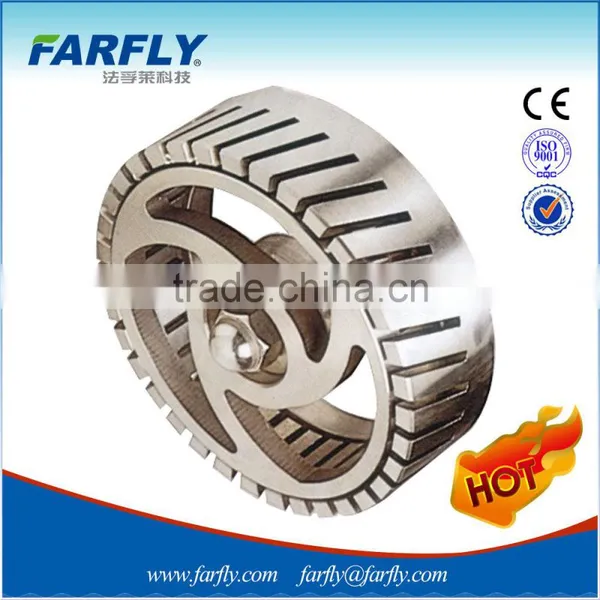

1)There is one group of rotor and stator in the working chamber, and 2,4,6 groups are optional.
2)FSW1 type T motor and working head are rigid or flexibly connected; the bearing could adopt grease or oil lubrication.
3)Modular design, convenient to set or dismantle, low cost to change accessories.
4)Doulbe-end mechanical seals are selected according to the process requirements, under high pressure working condition the matching sealing liquid pressurized can is needed.
5)Chamber can be set with jacket outside in oder to heat up or cool down.
Features:
- Suitable for industrial online continuous production
- Wide viscosity range than in batch high shear mixer
- No batch difference
- High efficiency,low noise
Main technical data:
Capacity
Self-pumping throughputs of 20 to 15,000 litres/h.
No Bypassing
Product cannot bypass the precision rotor/stator workhead.
Interchangeable Workheads
Single stage rotor/stator configurations workheads as standard. For those applications that require greater shear, interchangeable multi-stage configurations workheard can be used.
Materials of Construction
Product contact material: SUS 304 or SUS 316L stainless steel .
Motor Specification
Standard and explosion-proof motors (Siemens ,ABB etc) are available as standard.
Inlet and Outlet Connections
All sanitary screw or flange fittings available on request (e.g. ISS, D/N, RJT, SMS, Tri-clamp, etc.).
Sealing
Single or double mechanical shaft seals available as standard .
Cleaning
All Farfly In-Line mixers are designed for cleaning in place (CIP and SIP).
Cooling
Cooling jacket structure as standard.
