Home > Products > High shearing emulsifier > High efficiency good price high shearing emulsifier
High efficiency good price high shearing emulsifier
- 30 Set / Sets per Month
- shang hai
- T/T
Product Details
Mixer Type: | Homogenizer | Product Type: | Paint | ||
Application: | Viscous Fluid | Additional Capabilities: | Other, MIXING | Place of Origin: | Shanghai, China |
Brand Name: | FARFLY | Model Number: | FSA FSY | Max. Loading Capacity: | 5000L |
Voltage: | 220v,380v,440v,460v | Power(W): | 11-90kw | Dimension(L*W*H): | customized |
Certification: | CE/UL/ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

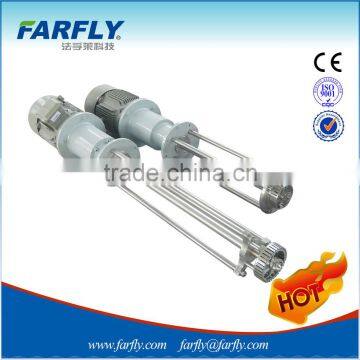

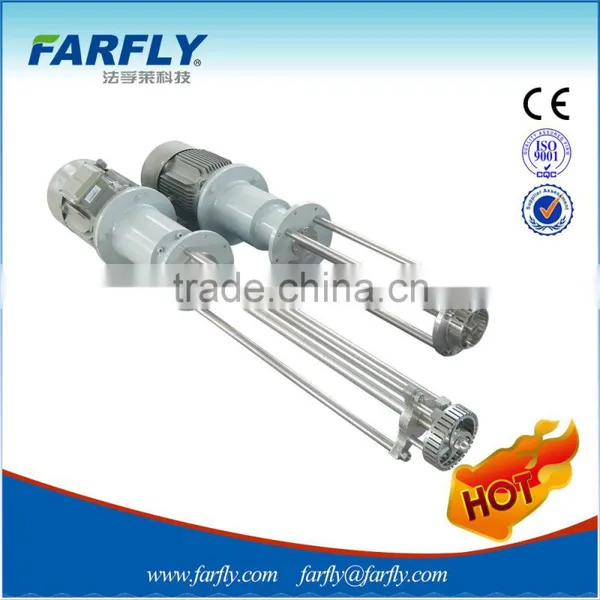

FSA high-shearing emulsifier :
High shear mixing emulsifier , high shear mixer, homogenizer.
General:
A farfly in batch high shear mixer offers a full range of mier for production scale. The design exceeds the high quality standards necessary to achieve optimal process results and withstand the rigors of difficult processes that require high shear mixing.The high shear mixer doesn't simply mix. It emulsifies, homogenises, solubilises, suspends, disperses and disintegrates solids. Each mixer, with its precision-engineered rotor/stator workhead, far outperforms conventional mixers,improving quality, product consistency and process efficiency.
Features of FSA high-shearing emulsifier :
Capacity
100 - 20,000 litres.
Workheads
Interchangeable workheads available for all models.
Materials of Construction
Product contact in SS304 or 316L stainless steel.
Motor Specification
1-132 kW, TEFC, flame proof, ATEX approved and stainless steel motors available as standard.
Mounting
All mixers can be supplied with either a rectangular or circular flange for mounting on the vessel. Smaller models can be mounted on specially constructed mobile hydraulic floor stands.
Sealing
Where sealing is required, lip seals and single or double mechanical shaft seals can be supplied.
Cleaning
Simple, easy-to-clean construction.
Types of High shearing emulsifier :
Type | Power KW | Capacity L | Speed RPM |
FAS50 | 1.1 | 10-50 | 2880 |
FAS200 | 4.0 | 30-200 | 2880 |
FAS500 | 7.5 | 50-500 | 2880 |
FAS1000 | 11 | 100-1000 | 2880 |
FAS1500 | 15 | 100-1500 | 2880 |
FAS2000 | 18.5 | 200-2000 | 1440 |
FAS2500 | 22 | 300-2500 | 1440 |
FAS4000 | 37 | 800-4000 | 1440 |
FAS8000 | 55 | 1500-8000 | 1440 |
FAS15000 | 75 | 2500-15000 | 1440 |
