Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Hydraulic Lifting Industrial Pigment Basket Mill

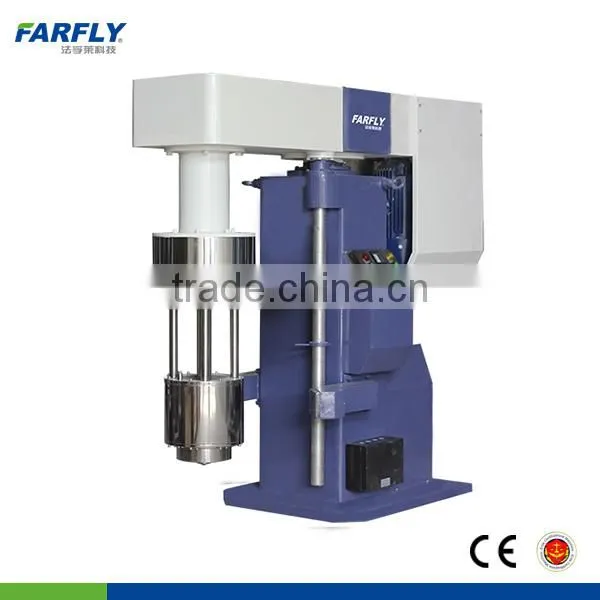

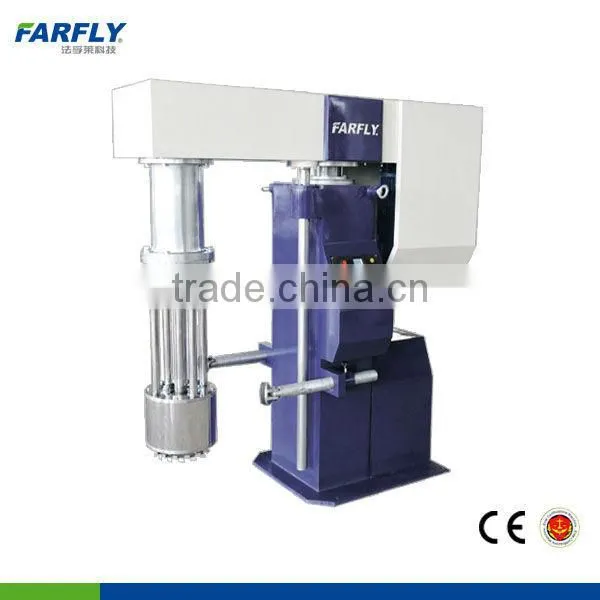

Hydraulic Lifting Industrial Pigment Basket Mill

Name: Hydraulic Lifting Industrial Pigment Basket Mill
Brand: FARFLY
SKU: 138487303
Availability: InStock

Hydraulic Lifting Industrial Pigment Basket Mill thumbnail-1

Hydraulic Lifting Industrial Pigment Basket Mill thumbnail-2

Hydraulic Lifting Industrial Pigment Basket Mill thumbnail-3

Hydraulic Lifting Industrial Pigment Basket Mill photo-1

Hydraulic Lifting Industrial Pigment Basket Mill photo-2

Hydraulic Lifting Industrial Pigment Basket Mill photo-3

US$ 1,800 - 45,800 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Basket mill

Product Type:

Paint

Contact Supplier Request Quote Chat Now

Shanghai Farfly Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Basket mill

Product Type Paint

Place of Origin Shanghai, China

Brand Name FARFLY

Model Number FTM Basket Mill

Voltage 220V/380V/440V/460V

Power(W) 2.2~75KW

Dimension(L*W*H) 3*1.6*2.4 M

Weight 120~4500KG

Certification CE/UL/ISO9001

Warranty 1~3 year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

1. Product Name:Hydraulic Lifting Industrial Pigment Basket Mill

2. Product descrption

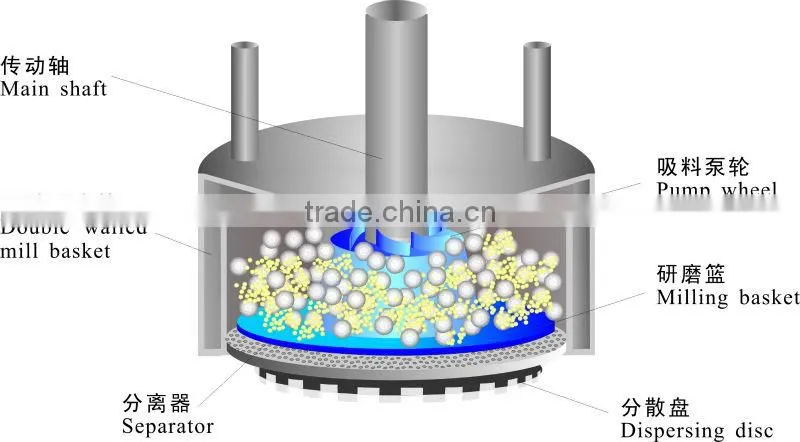

Hydraulic Lifting Industrial Pigment Basket Mill is an integrated equipment,which combines millling and dispersing to reduce particle size for paint,coatings,inks and pigment dispersions applications.The basket mill integrates high speed dissolving and pump wheels,a very narrow particle size distribution can be achieved in this machine.

The machine has altered traditional production processing by integrating dispersing and milling two processes into one, which reduces production process. No pump nor valve is required. One machine and one container can implement dispersing and milling together, which increases efficiency greatly and reduce materials waste.

3. Advantage of Hydraulic Lifting Industrial Pigment Basket Mill:

- Siemens/ABB motor optional

- Siemens/LG/Danfoss speed conventor optional

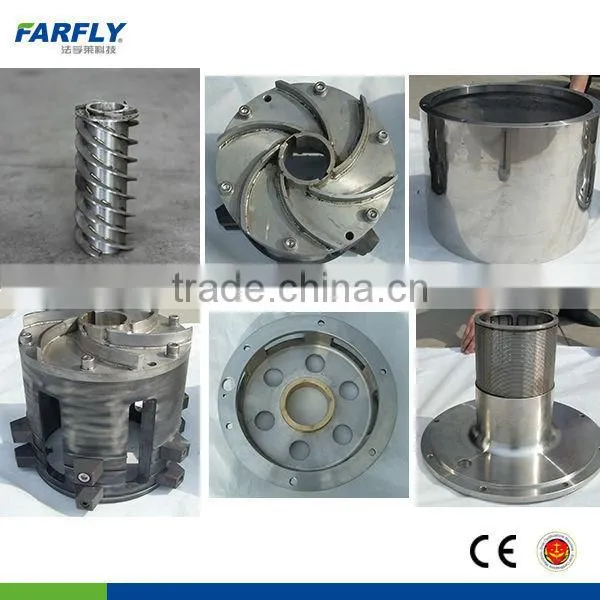

- Replaceable basket structure, easy to clean

- Easy to maintain and move from one batch to another different product production

- Little grinding media required

- Double wall milling basket and double wall container for cooling an heating is optional

- Excellent mill results

4. Application Area:

Hydraulic Lifting Industrial Pigment Basket Mill is wet milling machine. It is suitable for industries having high fineness requirement such as paint, printing ink, pigment, color paste, cosmetic, pesticide, pharmacy etc

5. Main technical data:

Model of Motor

380V 50Hz

Model of Speed Control

Frequency speed conventor control

Mode of Lifting

Hydraulic lifting

Material in contact

SSS304/SS316L

Framework

Carbon steel

List of Technical Parameter

Model Number	Capacity L	Power KW	Lifting length mm	Exterior Dimension
FTM50	10-50	1.5	400	1000×500×1200
FTM100	30-100	2.2	550	1200×600×1400
FTM150	40-150	4	800	1400×700×1800
FTM200	50-200	7.5	900	1600×800×1900
FTM250	80-250	11	1000	1800×800×2200
FTM500	200-500	18.5	1100	2200×900×2400
FTM1000	500-1000	22	1200	2700×1100×2800
FTM1500	800-1500	30	1500	2800×1100×2800
FTM2000	800-2000	37	1500	3100×1300×2800
FTM3000	1500-3000	45	1500	3100×1300×2800

More big size type of machine is available upon request.
