FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp

FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp thumbnail-1
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp thumbnail-2
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp thumbnail-3
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp thumbnail-4
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp thumbnail-5
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp thumbnail-6
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp photo-1
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp photo-2
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp photo-3
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp photo-4
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp photo-5
FTM High Effection Anti-corrosive Paint Basket Mill,grinding Mill With Tank Clamp photo-6
US$ 31,000 - 37,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Grinder
Product Type:
Paint
Contact Supplier Request Quote Chat Now
Shanghai Farfly Energy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shang hai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Grinder
Product Type Paint
Place of Origin Shanghai, China
Brand Name FARFLY
Model Number FTM-1500
Voltage 220V/380V/440V/460V
Power(W) 30kw
Dimension(L*W*H) 2200*2100*1100mm
Weight 1500-1900kgs
Certification CE/UL/ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

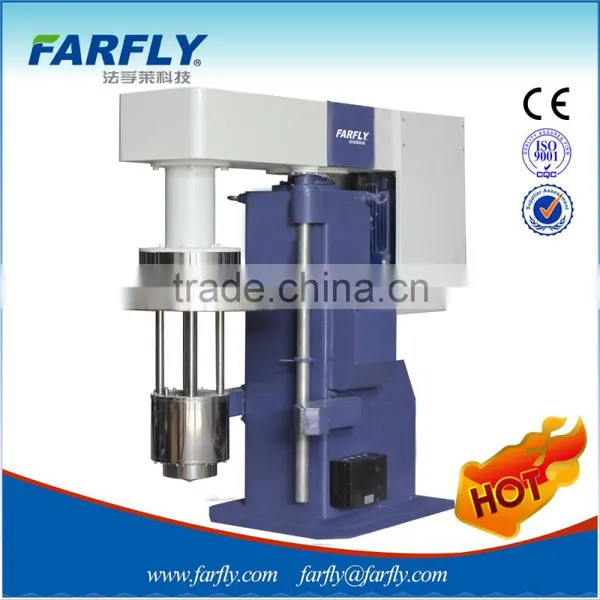

High effection Basket mill:



FARFLY basekt mill is an ideal equipment to produce inks,coatings,pigment dispersion,with its owned milling technology.Basket Mill is wet milling machine. It  combines millling and dispersing to reduce particle size suitable for materials and be suitable for industries having high fineness requirement such as paint, printing ink, pigment, color paste, cosmetic, pesticide, pharmacy etc. The machine has altered traditional production processing by integrating dispersing and milling two processes into one, which reduces production process. No pump nor valve is required. One machine and one container can implement dispersing and milling together, which increases efficiency greatly and reduce materials waste.

Description:

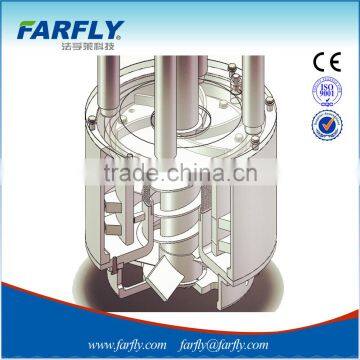

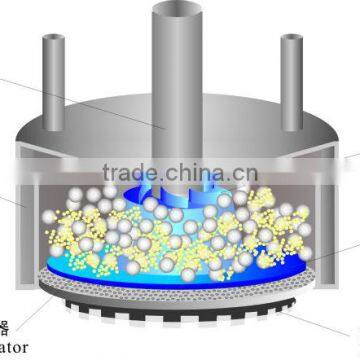

---Liquid circulation system is generated between the material feeding rotor and toothed dispersing disc and grinding beads with high hardness driven by the high-speed rotating rod in the basket result in outstanding milling effect.
---Good milling fineness, high grinding efficiency, even particle distribution and the whole milling process is finished under closed condition.
---Without dead corner, little residue, easy to clean and easy to change color or other products.
----With cover matching with its container to avoid dust flying, materials splashing and volatilization of the solvent products during dispersing. Easy operation, safe and convenient. The cover is mirror polished, easy to clean and nice appearance.



Features:

-  Siemens/ABB motor optional

-  Siemens/LG/Danfoss speed conventor optional

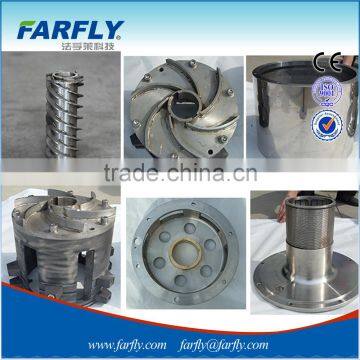

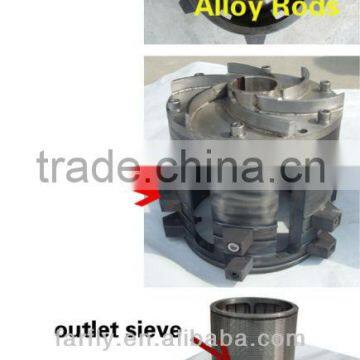

-  Replaceable basket structure, easy to clean

-  Easy to maintain and move from one batch to another different product production

-  Little grinding media required

-  Double wall milling basket and double wall container for cooling an heating is optional

-  Excellent mill results

.



Main technical data:

Model of Motor

 380V 50Hz

Model of Speed Control

Frequency speed conventor control

Mode of Lifting

Hydraulic lifting

Material in contact

SSS304/SS316L

Framework

Carbon steel

List of Technical Parameter

Model Number

Capacity L

Power KW

Lifting length mm

Exterior Dimension

FTM50

10-50

1.5

400

1000×500×1200

FTM100

30-100

2.2

550

1200×600×1400

FTM150

40-150

4

800

1400×700×1800

FTM200

50-200

7.5

900

1600×800×1900

FTM250

80-250

11

1000

1800×800×2200

FTM500

200-500

18.5

1100

2200×900×2400

FTM1000

500-1000

22

1200

2700×1100×2800

FTM1500

800-1500

30

1500

2800×1100×2800

FTM2000

800-2000

37

1500

3100×1300×2800

FTM3000

1500-3000

45

1500

3100×1300×2800
More big size type of machine is available upon request.
