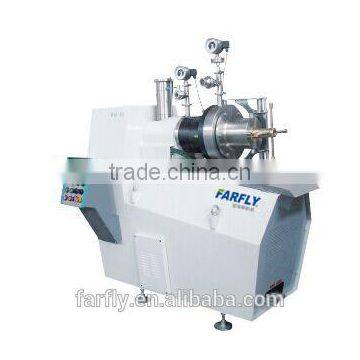

Shanghai FARFLY FRS bead mill
Applicable range:
Offser printing lnk,Screen Pringting Lnk,Condensed lnk,UV Printing lnk,Gravure printing lnk,Waterborne Printing lnk.
Characters:
-Strong versatility, easy operation, PLC is used for control ,analogous drawing and touch screen are available (optional).
-Conic grinding and mixing tank provides the best grinding effect.
-Self-clean,high-precision separating ring and grinding media with 0.8~2.5mm are acceptable.
-Small processing area and closed grinding ensures the least pollution.
-Grinding area made of special anti-wearing alloy material ensures long service life.
-All imported high-precision bearings and double-acting mechanical sealing ensure service life and stability pf equipment.
- Internal circulation cooling/heating integrated system suiting temperature-sensitive materials.
After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the meals for Seller’s engineer. We will send some free set of spare parts for you change it.
Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, but we can also accept EXW,CIF,CNF.
Technical data:
Type |
FRS-10 |
FRS-15 |
FRS-20 |
Motor power KW |
22~37 |
45~55 |
55~75 |
Grinding medium (mm) |
0.8~2.0 |
0.8~2.5 |
1.6~2.5 |
Capacity (kg/h) |
50~300 |
150~500 |
250~800 |
Barrel volume (L) |
10 |
15 |
20 |
Compressed air (bar) |
2~6 |
2~6 |
2~6 |
Width(mm) |
1100 |
1650 |
1680 |
Length(mm) |
1550 |
2000 |
2020 |
Height (mm) |
1600 |
2500 |
2550 |
Height of outlet (mm) |
1100 |
1500 |
1540 |
Weight(kg) |
1200 |
3000 |
3800 |
