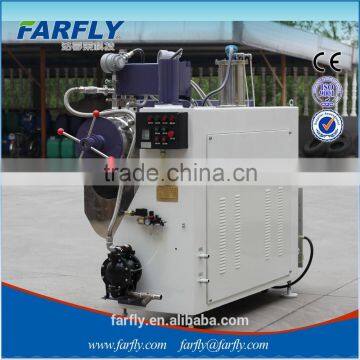

Ink grinding mill
Horizontal Sand Mill is suitable for grinding all kinds of materials, widely applied for Paint ,Printing Ink .
fineness degree .
CE

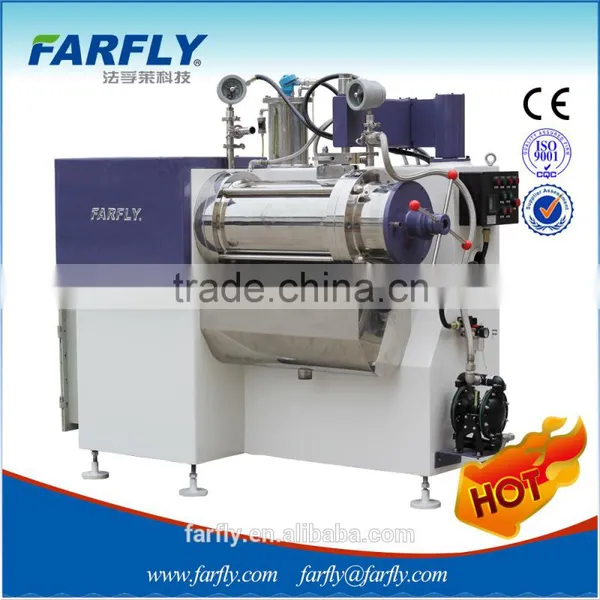

Horizontal sand mill, grinding mill, sand grinder.
Characters:
- It's pin type high effiecient grinding mill, with rows of wearing resistant sticks on the inner of Cylindric chamber and rows of pins on the inner of cylindric shaft.
- Volume of grinding chamber can be adjustable hydraulically as per actual production needs.
- With double mechnical seal.
- It adopts zirconia beads as grinding medium.
- This machine has stable structure ,ingenious design design and convenient operation.
- Cleaning &changing colour and replacing mill bead can be much easier.
- Non vestigital design, it can solve the problem of material discharging better after milling.
- Hard alloy sticks, with proper redistribution, high-efficiency milling result can be obtained.
- Double cooling of inner rotor and outer jacket ensures effect of material cooling.
- Better lining of wear-resistant alloy, without pollution to materials.
- With less abrasion of milling media and cost.
- CE marketing.
Advantages compared with ordinary types:
1) It adopts “bipyramid” structure, that means both the barrel and the shaft are tapered .Thus under the influence of centrifugal force, larger particles will be force to move forward inlet and smaller particles will move forward outlet, so it can sieving particles efficiently.
2) The barrel made of tungsten-based hard alloy ensures long life service.
3) Double cooling system of barrel and shaft, with strong cooling ability.
4) The particle size can be 1 micro.
5) Volume of barrel can be adjusted
6) It adopts double mechanical seal.
7) The pump is Ingersoll-Rand, famous brand.
8) The grinding barrel is made of new-style of die steel forgings (Chrome-Manganese Alloy Steel): wearing proof and rustless, with less abrasion of milling medium and no pollution to materials.
9)Both the separator and stick –spigot are made of tungsten carbide hard alloy, with high hardness and wear resistance.
10) It adopts Japanese high precision bearing and German mechanical seal .
Technical data:
Type |
FTBS2 |
FTBS20 |
FTBS30 |
FTBS50 |
Motor power(kw) |
3 |
22 |
30 |
45 |
Barrel capacity(L) |
2 |
20 |
28 |
46 |
Output range(Kg/h) |
30-100 |
100~350 |
100~450 |
100~600 |
Cooling water(m3/h) |
0.8 |
2.5 |
2.5 |
3 |
Compressed air(m3/h) |
2~6 |
2~6 |
2~6 |
3~6 |
Milling medium(mm) |
Zirconia (1.2~1.4) |
Zirconia (1.2~1.4) |
Zirconia (1.2~1.4) |
Zirconia (1.2~1.4) |
