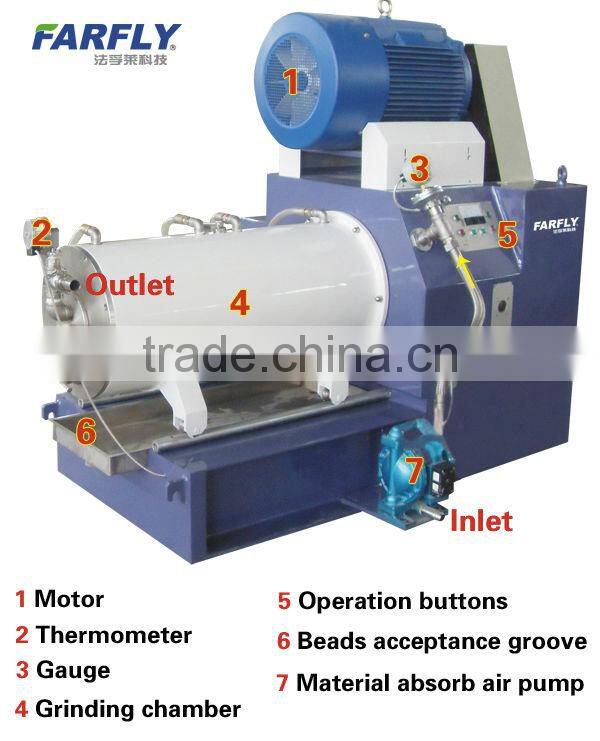

Horizontal sand mill, grinding mill, bead mill.
General:
It is wet process milling equipment which can produce continuously ,the working principle is the power delivered from high-speed rotor to milling medium and liquid material,through mutual clliding and laminating ,aim of superline can be achieved.
Characters:
1)High flux-Germany technology:static centrifugal discharging devices,large discharge area with high output.
2) Adopts double mechanical seal, the lubricating liquid dissolved with materials, safe and reliable.
3)Grinding area made of special anti-wearing alloy material ensures long service life.
4)Cooling efficiency:the double helix segmented more advantageour to the exchange energey.Cooling efficiancy is twice higher than ordinary types.
5) Intelligent double mechanical seals: the technology of Germany mechanical seal and imported fluorine sealing rings can be anti-eroded different solvent.
6)Grinding efficiency compared with ordinary types: increased by at least 30%, the combination of the distributor can rapidly improves dispersion efficiency .
Technical data:
Type |
FSP30 |
FSP50 |
FSP60 |
Motor power KW |
22 |
30 |
30 |
Pump flux(L/min) |
0~17/22 |
0~17/22 |
0~17/22 |
Capacity (L/h) |
70~600 |
100~800 |
120~1000 |
Barrel volume (L) |
30 |
50 |
60 |
Cooling water(m3/h) |
2 |
2 |
2 |
