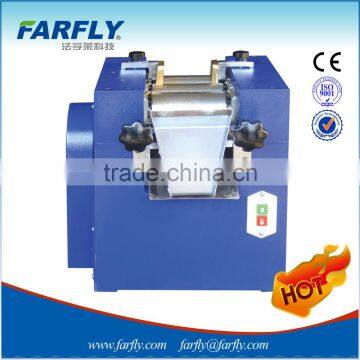

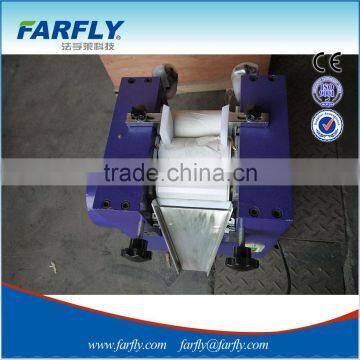

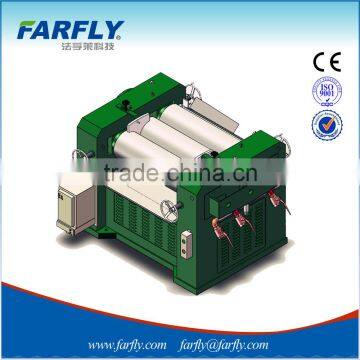

Triple-roller mill, three roller mill, ink production machine.
Description:
Trible-roller mill is mainly used in paint,printing ink,pigment,plastic,etc,especiallly mill and disperse products with high viscosity and small granularity.Due to mutual squeezing of three horizontal alloy bowls and friction with different velocity,great efect can be realized.
Hydraulic pressure three roll mill,printing ink production three roll ball grinder,machine.
A farfly of three roll mill is fully automatic hydraulic pressure controlled for feeding,discharging,particles size reduction.
After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the meals for Seller’s engineer. We will send some free set of spare parts for you change it.
Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, but we can also accept EXW,CIF,CNF.
Technical data:
Main motor power |
7.5KW-55KW |
Diameter in roll |
From 150mm to 400mm |
Length of roll working |
From 300 mm-1300mm |
Surface of roll |
HSD70-73 |
Material of roll |
Special-made alloy |
High speed roll |
From 140- 400 rpm |
Medium speed roll |
From 60- 150 rpm |
Low speed roll |
From 16-32 rpm |
Height fromn discharge to ground |
690 mm |
Main motor power |
7.5KW-55KW |
|
Hydraulic pressure
motor
|
1.1KW - 2.2kw |
Hydraulic pressure |
6.3 Mpa-14.6Mpa |
Electric control |
Integrated machine. |
Weight |
500Kg-5000kg |
