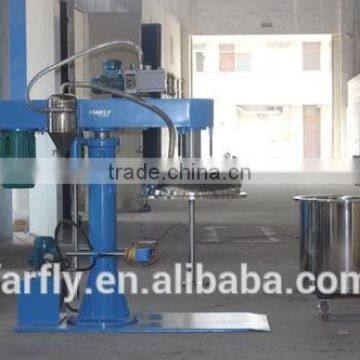

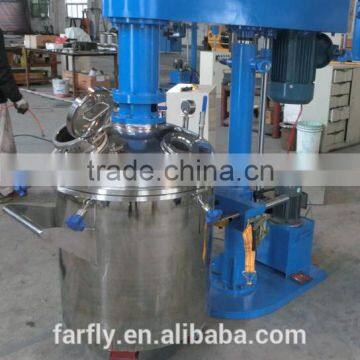

FDZ Vacuum High Speed Dissolver
Description:
High speed dissolver,coating production mixer,dispersing machine is to dissolve ,disperse and mix meterials with different viscosity.Through the very high peripheral tip spped of the toothed disc,the strong shearing,crashing and friction forces generated between the materials and toothed disc disperse,dissolve and mixe the materials efficiently.The large stress forces break down the agglomerates into the liquid or paste suspension and solid particle wetted out.With cover matching with its container to avoid dust flying ,materials splashing and volatilization of solvent products during dispersing.Easy operation,safe and convenient .The cover is mirror polished ,easy to clean and nice appearance.Little air absorption during mixing and dispersing process.It disperses and dissolves materials to smaller particle size effciently .No dead corner during mixing .Easy to clean ,wide capacity range ,various speed control,stable operation ,low noise and long-time continuous operation.
Feature:
- Hydraulic lifting system for production
- Siemens or ABB motor as standard
- Siemens/LG//Danfoss Frequency convertor optional
- Non-explosion and explosion type of production dispersion equipment are both as standard
- Vacuum production high speed disperser is available.
- Customerized equipments are available.
Application:
Suitable for materials easily producing bubbles and volatile agents.Materials will be dispersed in vacuum tanks, thus to decrease bubbles and volatilization of agents,expedite defoaming and promote dispersing fineness.With simple structure and high vacuum, easy to operate .
Technical data :
Mode of Motor |
Alternative from 2.2KW-132KW |
Electric Power Source |
220V/380V 50Hz |
Handling Capacity |
10-10000L |
Rotating Speed |
0-1200rpm |
Dispersing disc |
100- |
Mode of Speed control |
Frequency convertor speed control |
Material in contact |
SS304 or SS316L |
Mode of Lifting |
Hydraulic lifting |
Lifting distance |
300-3000mm |
Framework |
Stainless Steel, Carbon Steel |
Types available :
Parameter/Type |
FDZ200 |
FDZ400 |
FDZ600 |
FDZ1000 |
Power(Kw) |
7.5 |
15 |
22 |
30 |
Speed(rpm) |
100~1400 |
100~1400 |
100~1400 |
100~1400 |
Vacuum(Mpa) |
≤-0.07 |
≤-0.07 |
≤-0.07 |
≤-0.07 |
Lifting height (rpm) |
900 |
900 |
1200 |
1200 |
Capacity(L) |
200 |
400 |
600 |
1000 |
Disc diametermm() |
200 |
300 |
350 |
400 |
