High Efficient Lab Dispersing Machine

High Efficient Lab Dispersing Machine photo-1

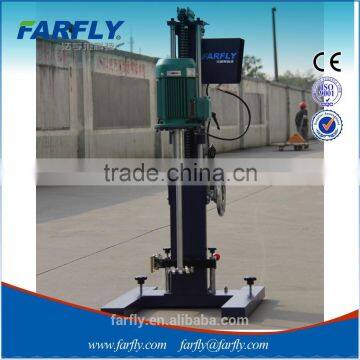

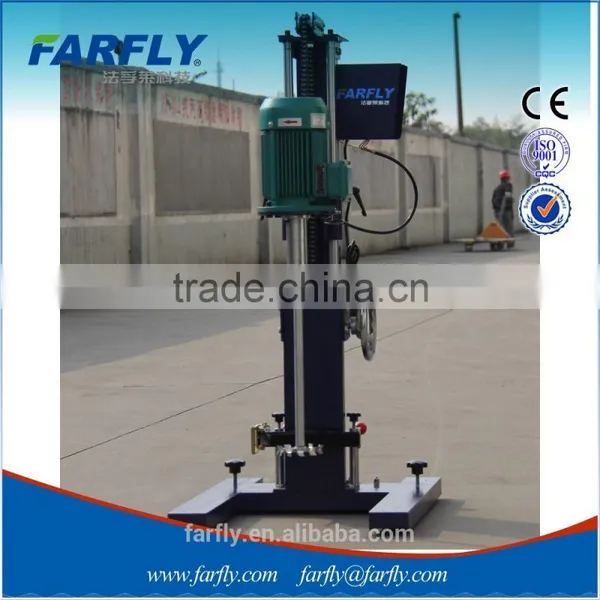

High Efficient Lab Dispersing Machine photo-2

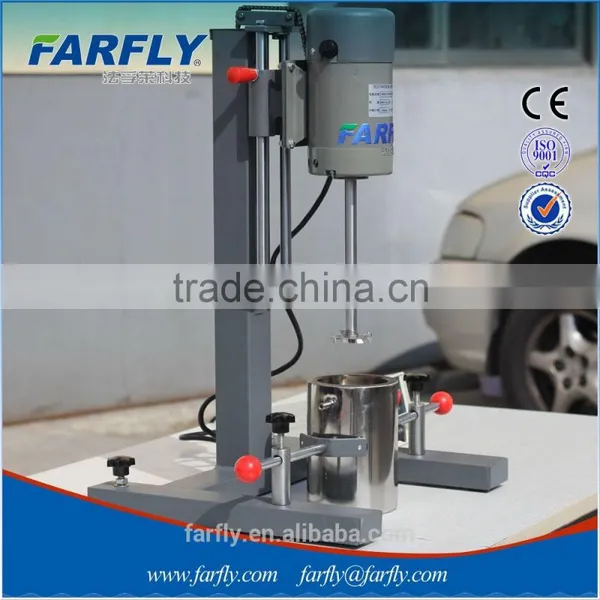

High Efficient Lab Dispersing Machine photo-3

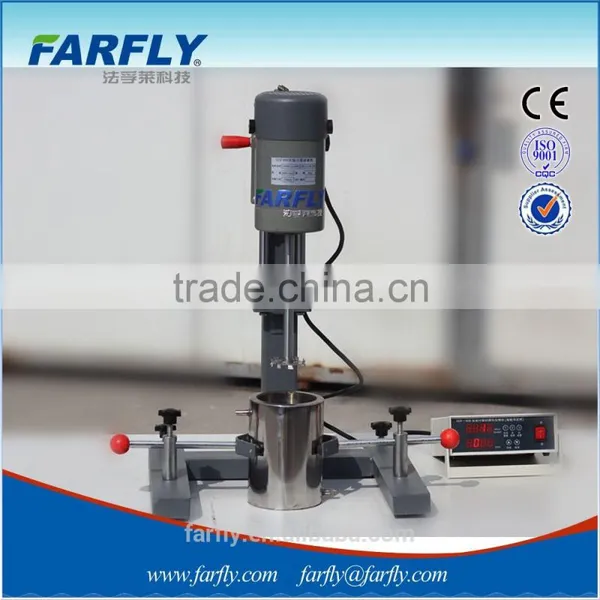

High Efficient Lab Dispersing Machine photo-4

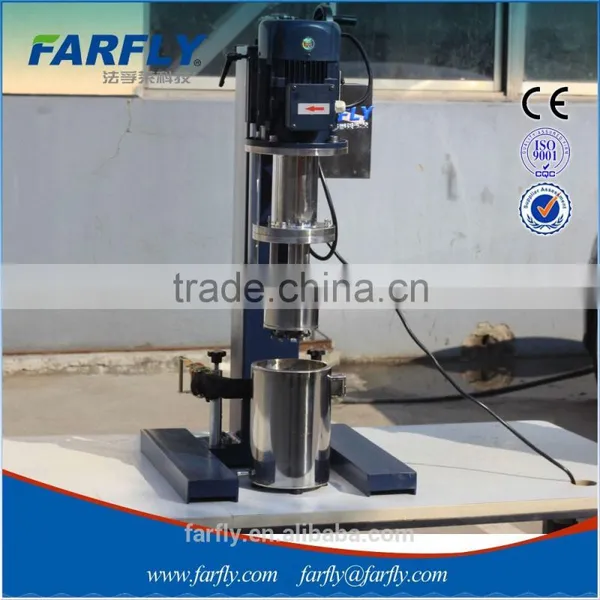

High Efficient Lab Dispersing Machine photo-5

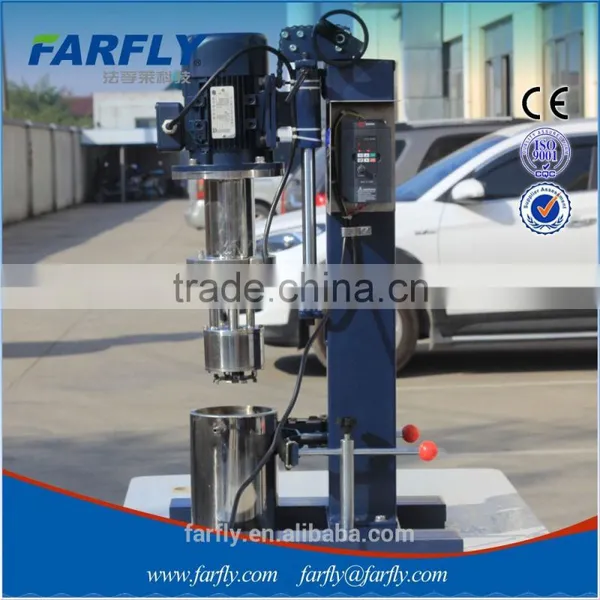

High Efficient Lab Dispersing Machine photo-6
US$ 1 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Agitator
Product Type:
Detergent Powder
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Agitator
Product Type Detergent Powder
Application Liquid with Suspended Solids
Additional Capabilities Other, emulsifying
Place of Origin Shanghai, China
Brand Name FARFLY
Model Number SDF
Max. Loading Capacity 8000 ml
Voltage 110V/220V/380V/440V
Power(W) 0.4 KW
Dimension(L*W*H) Customized
Certification CE & ISO 9001:2008
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

high efficient lab dispersing machine

The SDF550 multi-function laboratory dispersing machine is adopted from new technology, which design and develop  new environmental laboratory products. This product is focused on the mixing, milling, dispersing, etc. One the best      equipment for testing of fine chemical, petrochemicals, nanometer material, biological medicine, food industry, chemical products, pesticide production etc fields.
Characteristics
 ● The equipment adopts a DC motor for driving, which is using electronic reversing technology instead of traditional    AC-DC motor.
 ● It has small size, good starting torque, high efficiency, low energy consumption, low noise, non-commutation spark    interference, less wearing carbon brush etc.
 ● Thoroughly improve the laboratory staff working environment, it is suitable for upgrading equipment in the laborator-ies.
 ● Adopts electric commutator to control the speed, digital PID technology, good control accuracy, LED digital pipe displaying speed directly and also equipped with impeller and disc, which can meet the different needs during lab testing    and provide the correct data for mass production.

Type

Motor Power (KW)

Speed   (RPM)

Disc option(mm)

Lifting Height (mm)

Handling Capacity    (L)

Weight(KG)

Overall Size(mm)(LxWxH)

SDF550

0.55

200-5100

disperser disc Ф50, Ф60; milling disc Ф45, Ф60

300

0.2-10

25

450x500x  800

SDF400

0.40

100-8000

300

0.2-10

25

450x500x  800

Certifications
Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
