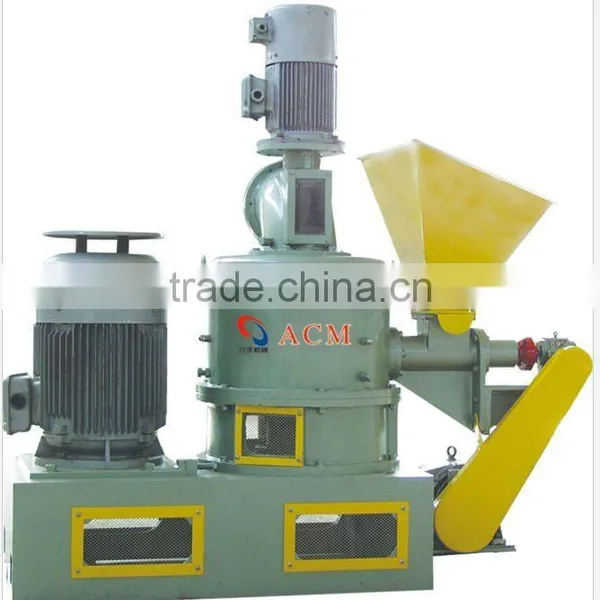

High output automatic mill machinery
ACM series grinding mill is so popular ,It is called “ universal high-speed smashing machines ” it can used in many fileds, for example : chemical, pesticide, medicine, food, nonmetalliferous ore, paint, building materials, ceramics
we produced airflow vortex grinder is a built-in grading, the crushing principle by spiral feeding materials into the crushing chamber, subjected to shear, collision, friction and crushed, to achieve the desired mesh powdergrader grading to
the cyclone discharge a small amount of the powder by the dust collection. Does not reach the mesh powder fight back by the centrifugal force of the grading machine the pulverizing chamber
continues pulverized to a desired mesh powder. Negative pressure operation of the machine at
no dust leaking ideal environmental protection equipment. it is less noise, consume less power .
This machine is low cost-priced at less than 60% of similar imported machines
It has such advantages as good fineness,high output,low energy consumption and
low investment.
The fineness of the product can be adjusted as requirement of customer.
It has perfect system.Convenient to install, no need large-scale construction project.It can be uesd as we finish installing.
This equipment includes host, cyclone separator, filter, blower, air compressor and electric
tank and a complete set of duct, etc. Close fan specifications for 200 x200, duct diameter for
Φ 200, Φ 250, induced draft fan power of 11 KW, the host machine 22 KW, empty press 5.5 KW, total of about 40 KW.
|
Model |
ACM - 30 |
|
Grinding principle |
Materials sent to smash the indoor high-speed rotating disk with spiral materials to a certain line several times (more than one hundred meters per second) collision, plusn turntable in the hammerhead high speed shearing the material so that the material itself, soreach the fineness of the material by the classifier wheel exclude machine outside |
|
Production form |
Fully negative pressure production, does not produce dust leakage phenomenon, are environmentally friendly |
|
Power consumption
|
Host motor 22KW, a full set of the total installed capacity of 40KW, 28-30KW electricity consumption per hour |
|
Production |
325mesh-600mesh about 600-350kg/h,above 800mesh and 300kg/h, the produce is more high |
|
Fineness |
325-1500mesh |
|
Suspension rate
|
≥75% |
|
Installing and using
|
Do not need to foot screws, small footprint, and can be used immediately after installation, easy operation |
