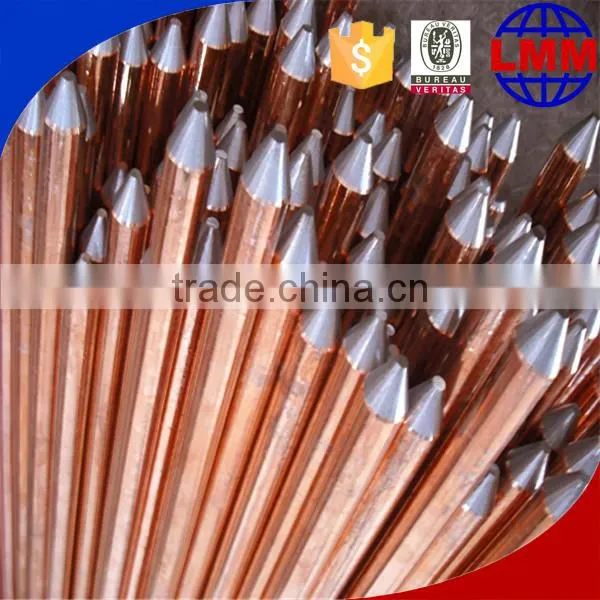

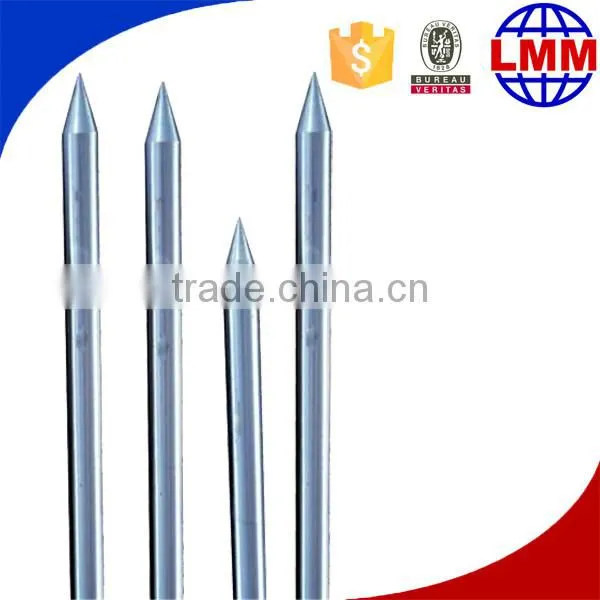

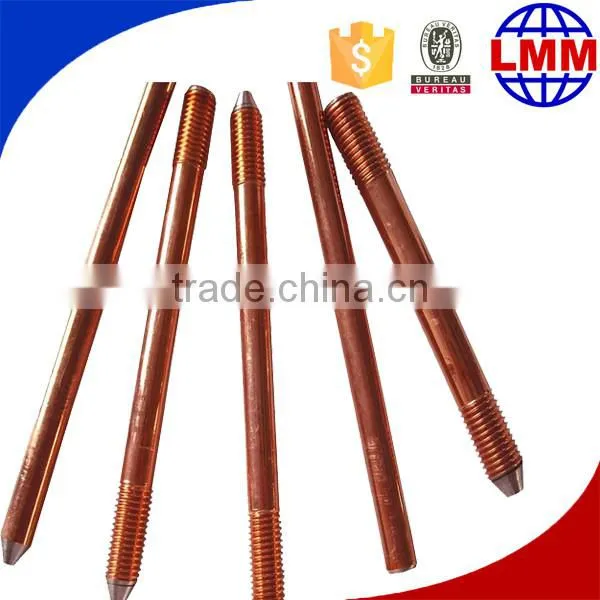

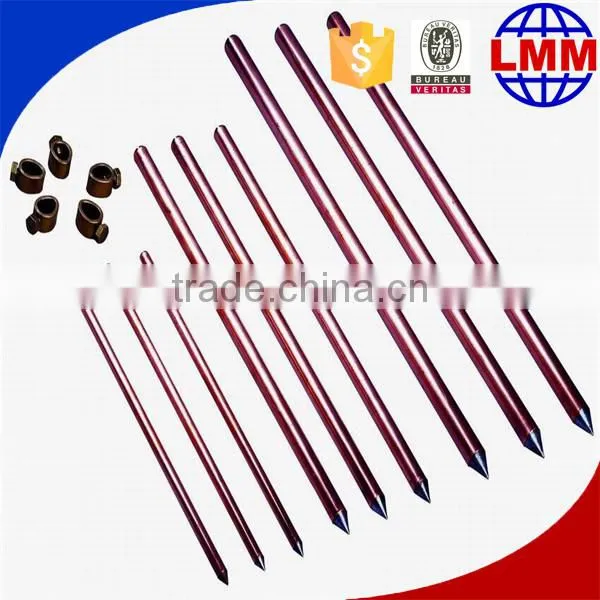

High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China

High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China thumbnail-1
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China thumbnail-2
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China thumbnail-3
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China thumbnail-4
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China thumbnail-5
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China thumbnail-6
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China photo-1
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China photo-2
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China photo-3
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China photo-4
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China photo-5
High Voltage Solid Copper Bonded Steel Chemical Earthing Electrode in China photo-6
US$ 1.05 - 10.05 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LMM
Model Number:
GD001
Contact Supplier Request Quote Chat Now
Liaoning Mineral & Metallurgy Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name LMM
Model Number GD001

PRODUCT SPECIFICATION



1. 99.9% pure electrolytic copper coating

2. Molecular bond to nickel-sealed high strength steel core

3. Rods have a high carbon steel core and tip that provide superior strength when driving

4. Copper coating will not crack when bent or tear when driven

5. Minimum copper coating of 10 mils on rods listed to UL 467

6. UL logo and control number where applicable stamped on each rod for easy inspection after installation



Copper bonded ground rod is mainly used in the grounding device. Due to its good conductivity, corrosion

resistance, tensile strength, etc., copper bonded ground rod can be widely used, and have been recognized

by the United States Institute of Electrical and Electronics Engineering (IEEE) standard, BS standard and

International Electrotechnical Commission (IEC) standards. In China, have been recognized in the national

electricity company, and gradually be widely used.



Ground Rod Diameter, Nominal

Ground Rod Diameter, Actual Ø

Length

Plating Thickness

Unit Weight

3/8"

9.0 mm

1.2 m

254 µm

0.57 kg

3/8"

9.0 mm

1.5 m

254 µm

0.73 kg

3/8"

9.0 mm

1.8 m

254 µm

0.90 kg

3/8"

9.0 mm

2.4 m

254 µm

1.23 kg

1/2"

12.7 mm

0.9 m

254 µm

0.98 kg

1/2"

12.7 mm

1.2 m

254 µm

1.26 kg

1/2"

12.7 mm

1.4 m

254 µm

1.27 kg

1/2"

12.7 mm

1.5 m

254 µm

1.57 kg

1/2"

12.7 mm

1.5 m

330 µm

1.67 kg

1/2"

12.7 mm

1.8 m

254 µm

2.01 kg

1/2"

12.7 mm

2.4 m

254 µm

2.51 kg

1/2"

12.7 mm

3.1 m

254 µm

3.11 kg

1/2"

12.7 mm

3.1 m

330 µm

3.35 kg

5/8"

14.2 mm

0.6 m

254 µm

0.83 kg

5/8"

14.2 mm

0.9 m

254 µm

1.13 kg

5/8"

14.2 mm

1.2 m

254 µm

1.54 kg

5/8"

14.2 mm

1.2 m

330 µm

1.54 kg

5/8"

14.2 mm

1.5 m

254 µm

1.92 kg

5/8"

14.2 mm

1.5 m

330 µm

2.04 kg

5/8"

14.2 mm

1.8 m

254 µm

2.30 kg

5/8"

14.2 mm

1.8 m

330 µm

2.45 kg

5/8"

14.2 mm

2.4 m

254 µm

3.07 kg

5/8"

14.2 mm

2.4 m

254 µm

3.08 kg

5/8"

14.2 mm

2.4 m

330 µm

3.08 kg

5/8"

14.2 mm

3.1 m

254 µm

3.85 kg

5/8"

14.2 mm

3.1 m

330 µm

3.83 kg

5/8"

14.2 mm

3.7 m

254 µm

4.54 kg

5/8"

14.2 mm

4.6 m

254 µm

5.78 kg

3/4"

17.3 mm

1.2 m

254 µm

2.55 kg

3/4"

17.3 mm

1.5 m

254 µm

2.81 kg

3/4"

17.3 mm

1.8 m

254 µm

3.40 kg

3/4"

17.3 mm

2.4 m

254 µm

4.56 kg

3/4"

17.3 mm

2.4 m

330 µm

4.54 kg

3/4"

17.3 mm

3.1 m

254 µm

5.72 kg

3/4"

17.3 mm

3.1 m

330 µm

5.63 kg

3/4"

17.3 mm

3.7 m

254 µm

6.77 kg

3/4"

17.3 mm

4.6 m

254 µm

8.39 kg

1"

23.2 mm

3.1 m

254 µm

10.00 kg

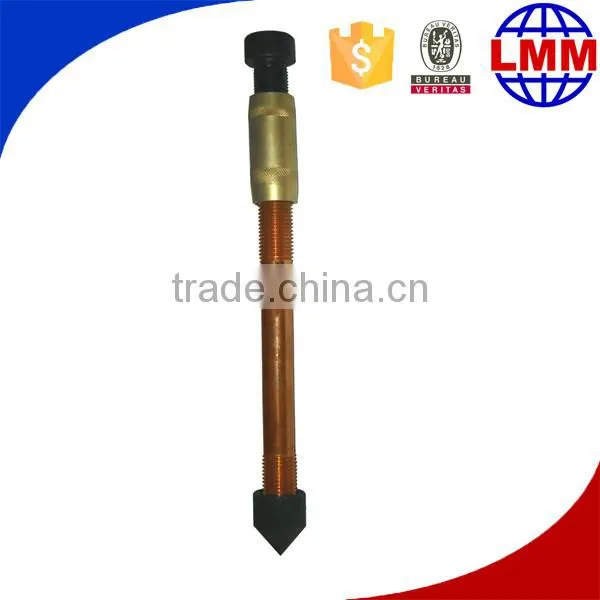

We can customize copper bonded threaded rod grounding for you as per your requirement.

Copper thickness

0.254mm/10mil

0.33mm/13mil

0.50mm/19.69mil

Theoretical life

>30 years

>40 years

>50 years

Soil condition

Good

Common

Bad

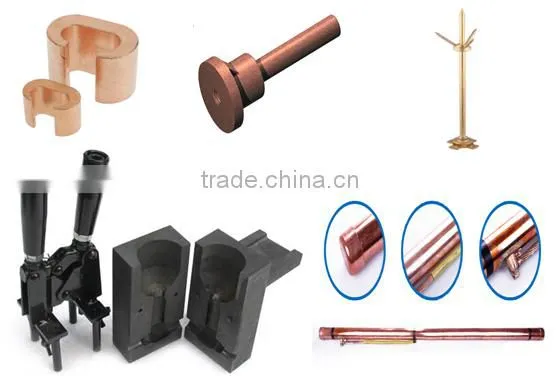

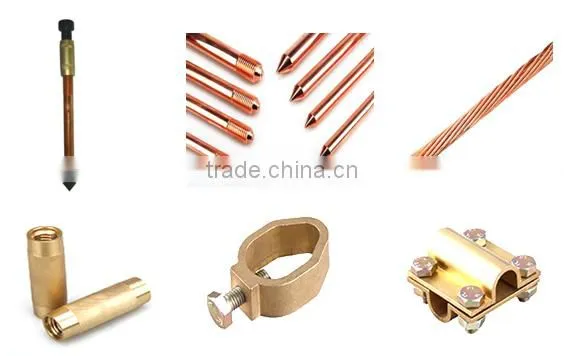

 BUSINESS SCOPE

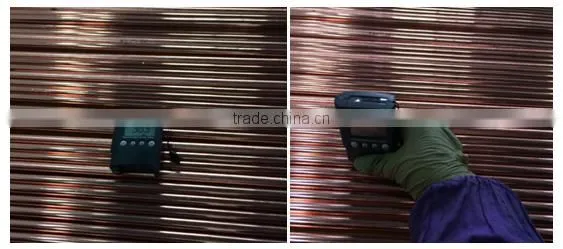

INSPECTION

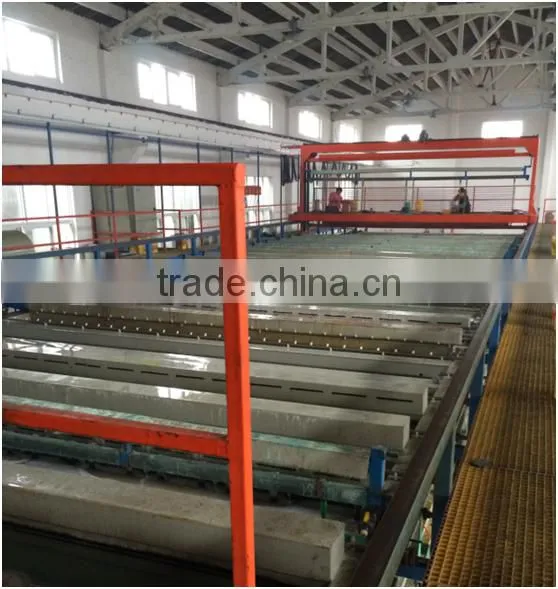

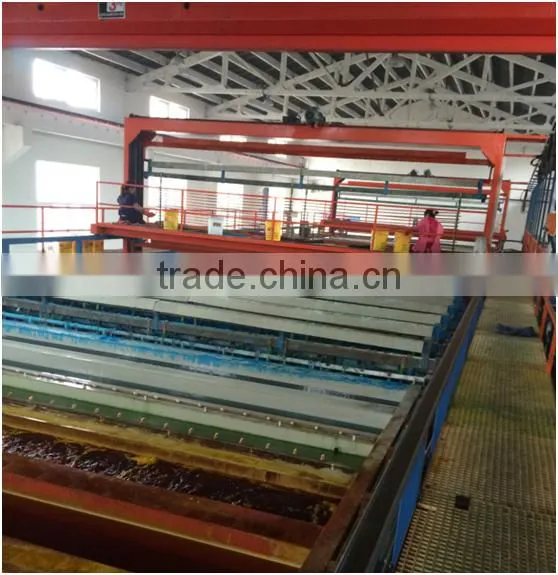

FACTORY

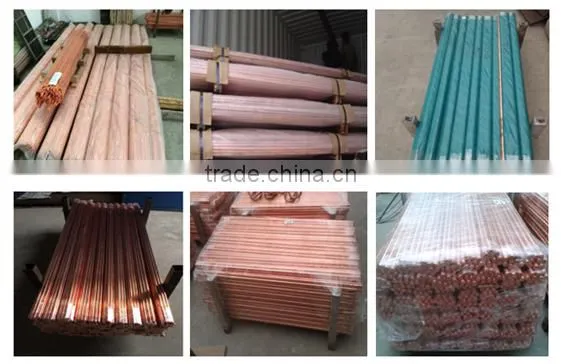

PACKAGE AND SHIPMENT

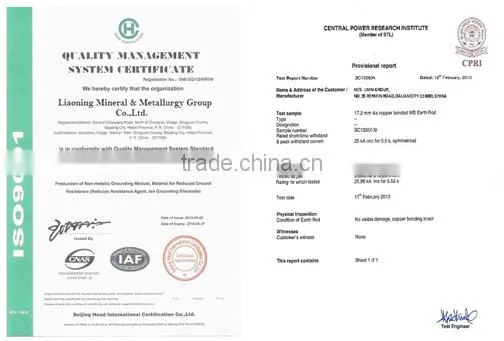

CERTIFICATION

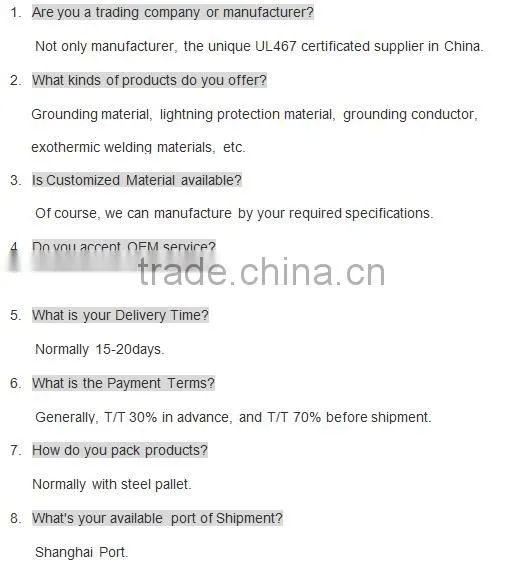

FAQ
