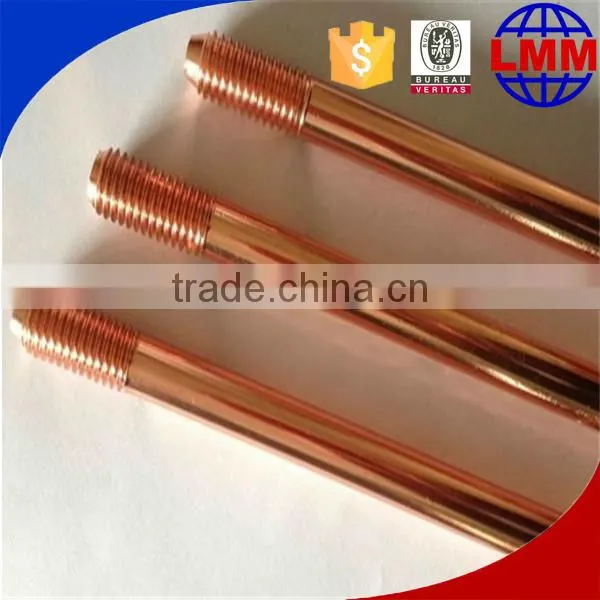

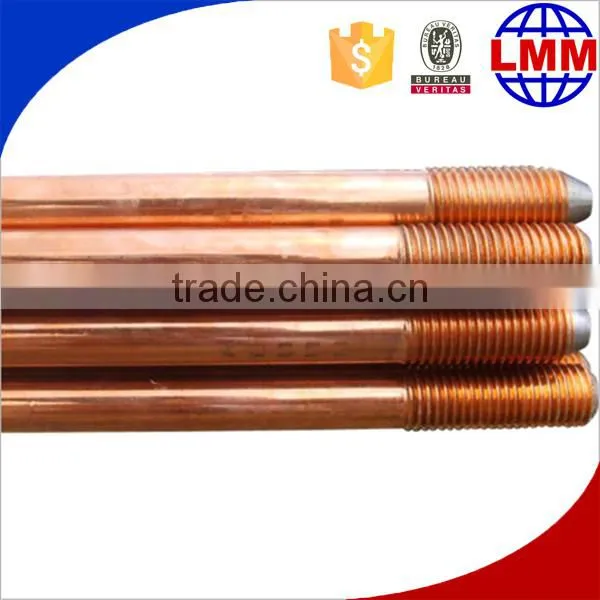

electrical pure threaded copper bonded ground rod

 Ground Rod Diameter, Nominal

Ground Rod Diameter, Actual ∅

Length

Plating Thickness

Unit Weight

3/8"

9.0 mm

1.2 m

254 μm

0.57 kg

3/8"

9.0 mm

1.5 m

254 μm

0.73 kg

3/8"

9.0 mm

1.8 m

254 μm

0.90 kg

3/8"

9.0 mm

2.4 m

254 μm

1.23 kg

1/2"

12.7 mm

0.9 m

254 μm

0.98 kg

1/2"

12.7 mm

1.2 m

254 μm

1.26 kg

1/2"

12.7 mm

1.4 m

254 μm

1.27 kg

1/2"

12.7 mm

1.5 m

254 μm

1.57 kg

1/2"

12.7 mm

1.5 m

330 μm

1.67 kg

1/2"

12.7 mm

1.8 m

254 μm

2.01 kg

1/2"

12.7 mm

2.4 m

254 μm

2.51 kg

1/2"

12.7 mm

3.1 m

254 μm

3.11 kg

1/2"

12.7 mm

3.1 m

330 μm

3.35 kg

5/8"

14.2 mm

0.6 m

254 μm

0.83 kg

5/8"

14.2 mm

0.9 m

254 μm

1.13 kg

5/8"

14.2 mm

1.2 m

254 μm

1.54 kg

5/8"

14.2 mm

1.2 m

330 μm

1.54 kg

5/8"

14.2 mm

1.5 m

254 μm

1.92 kg

5/8"

14.2 mm

1.5 m

330 μm

2.04 kg

5/8"

14.2 mm

1.8 m

254 μm

2.30 kg

5/8"

14.2 mm

1.8 m

330 μm

2.45 kg

5/8"

14.2 mm

2.4 m

254 μm

3.07 kg

5/8"

14.2 mm

2.4 m

254 μm

3.08 kg

5/8"

14.2 mm

2.4 m

330 μm

3.08 kg

5/8"

14.2 mm

3.1 m

254 μm

3.85 kg

5/8"

14.2 mm

3.1 m

330 μm

3.83 kg

5/8"

14.2 mm

3.7 m

254 μm

4.54 kg

5/8"

14.2 mm

4.6 m

254 μm

5.78 kg

3/4"

17.3 mm

1.2 m

254 μm

2.55 kg

3/4"

17.3 mm

1.5 m

254 μm

2.81 kg

3/4"

17.3 mm

1.8 m

254 μm

3.40 kg

3/4"

17.3 mm

2.4 m

254 μm

4.56 kg

3/4"

17.3 mm

2.4 m

330 μm

4.54 kg

3/4"

17.3 mm

3.1 m

254 μm

5.72 kg

3/4"

17.3 mm

3.1 m

330 μm

5.63 kg

3/4"

17.3 mm

3.7 m

254 μm

6.77 kg

3/4"

17.3 mm

4.6 m

254 μm

8.39 kg

1"

23.2 mm

3.1 m

254 μm

10.00 kg

Copper thickness

0.254mm/10mil

0.33mm/13mil

0.50mm/19.69mil

Theoretical life

>30 years

>40 years

>50 years

Soil condition

Good

Common

Bad
