Home > Products > Transportation & Construction Products > large torque drilling machine motor 750kw

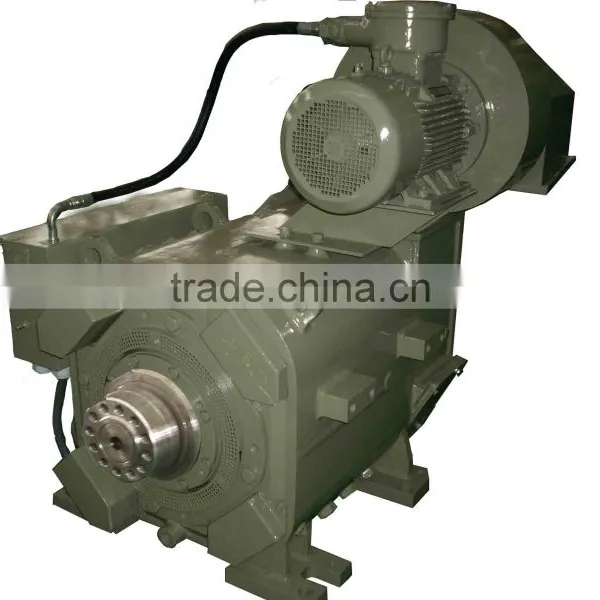

large torque drilling machine motor 750kw
- 1000 Set / Sets per Month
- Any Chinese seaport
- T/T
- traction motor GE761,D77/78,GE752,D29
- Maxon motor
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
Product Details
Brand Name: | LMMGROUP | Model Number: | LMMGROUP | Usage: | Other |
Certification: | CCC | Type: | Tubular Motor | Torque: | 8033 |
Construction: | Series Wound | Commutation: | Brush | Protect Feature: | Explosion-proof |
Speed(RPM): | 965 | Continuous Current(A): | 1150 | Output Power: | 800 |
Voltage(V): | 750 |
Product Description
Specifications
Equal to GE 752 series drilling motor, high torque, wide speed in constant power district. Used for mud pump, rotary table,etc.Type DC Drill Motor
Oilfield DC motor are high power series excited DC motor developed for electric drive oil drilling machine. The international advanced technology has been adopted in it such as Kapton insulation process, main pole coils formed by hot pressing, pressed and welded frame, spiral slot of commutator, reacting brush holder, wire banding etc. The main features of the motors are as follows: plus pressure explosion-proof, high current, large torque, wide range constant power speed regulating, free maintenance, high universality, efficiency and reliability. Their outline installation dimension is strictly in accordance with that of imported DC oil drilling motor. The oil drilling motor can be used instead of the imported one. They can function as slurry pump motor, rotary table motor and winch motor of DC electric drive drilling machine. The motors are divided into two types,according different position of terminal (see from drive end) .
Rated power | 800Kw |
Rated voltage | 750V |
Rated current | 1150A |
Rated rotating speed | 970r/min |
Rated efficiency | 93% |
Rated torque | 8033.7N.m |
Max. current | 1600A |
Max. torque | 12206.4N.m |
Max.rotating speed | 1500r/min |
Exciting | series |
Insulation class | H/H |
Cooling | Forced air |
Protection class | Plus pressure explosion-proof |
Mass | 3200Kg |
