DC Drilling Mtor Used for Mud Pump in Oilfield

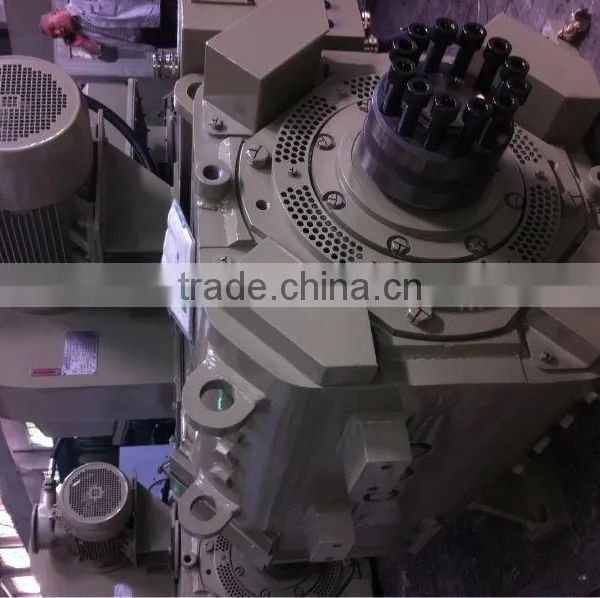

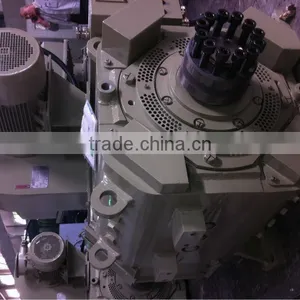

DC Drilling Mtor Used for Mud Pump in Oilfield photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LMMGROUP
Model Number:
YZ08
Usage:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Chinese seaport
Delivery Detail:
Delivery time depends on order quantity.
Brand Name LMMGROUP
Model Number YZ08
Usage Other
Certification CCC
Type Tubular Motor
Torque 8033
Construction Series Wound
Commutation Brush
Protect Feature Explosion-proof
Speed(RPM) 965
Continuous Current(A) 1150
Output Power 800
Voltage(V) 750

Specifications

DC motor are high power series excited DC motor developed for electric drive oil drilling machine.

Type  DC Drill Motor



  DC motor are high power series excited DC motor developed for electric drive oil drilling machine. The international advanced technology has been adopted in it such as Kapton insulation process, main pole coils formed by hot pressing, pressed and welded frame, spiral slot of commutator, reacting brush holder, wire banding etc. The main features of the motors are as follows: plus pressure explosion-proof, high current, large torque, wide range constant power speed regulating, free maintenance, high universality, efficiency and reliability. Their outline installation dimension is strictly in accordance with that of imported DC oil drilling motor. The oil drilling motor can be used instead of the imported one. They can function as slurry pump motor, rotary table motor and winch motor of DC electric drive drilling machine. Facing from the driving end, the terminal out of YZ08 is on the right side, and from YZ08A is on the left side.





Rated power

800Kw

Rated voltage

750V

Rated current

1150A

Rated rotating speed

970r/min

Rated efficiency

93%

Rated torque

8033.7N.m

Max. current

1600A

Max. torque

12206.4N.m

Max.rotating speed

1500r/min

Exciting

series

Insulation class

H/H

Cooling

Forced air

Protection class

Plus pressure explosion-proof

Mass

3200Kg

   DC drilling mtor used for mud pump in oilfieldDC drilling mtor used for mud pump in oilfieldDC drilling mtor used for mud pump in oilfield
