Home > Electrical & Electronics > Electric Motor > DC Motor > Interchangeable GE752 Drilling Motor (Terminal Box Left)

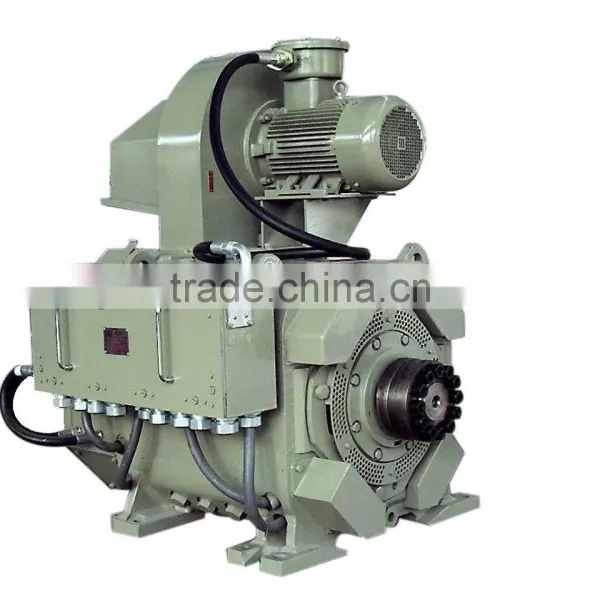

Interchangeable GE752 Drilling Motor (Terminal Box Left)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LMMGROUP
Model Number:
LMMGROUP
Usage:
Other, drilling rig
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Chinese seaport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Traction Motor,drilling MotorNegotiableMOQ: 1 Set -
Unitized Mud Pump Drilling MotorNegotiableMOQ: 1 Set
-
GE752 Series Wound DC Traction Rig Drill Electric MotorUS$ 70,000 - 100,000MOQ: 1 Set
-
Oilfield Drilling Motor YZ08US$ 50,000 - 60,000MOQ: 1 Piece
-
China Oilfield Drilling Motor YZ08AUS$ 50,000 - 60,000MOQ: 1 Piece
Brand Name
LMMGROUP
Model Number
LMMGROUP
Usage
Other, drilling rig
Certification
CCC, CE
Type
Other, DC drilling motor
Torque
8033
Construction
Series Wound
Commutation
Brush
Protect Feature
Explosion-proof
Speed(RPM)
970
Continuous Current(A)
1150
Output Power
800
Voltage(V)
750
Efficiency
Other, 92.7%
Specifications
Equal to GE 752 series drilling motor, high torque, wide speed in constant power district. Used for mud pump, rotary table,etc.Type DC Drill Motor
Interchangeable GE752 DC drilling motor,
Used for unitized mud pump,drawworks, rotary table.
Character: plus pressure explosion-proof, high current, large torque, wide range constant power speed regulating, free maintenance, high universality, efficiency and reliability
Rated power |
800Kw |
Rated voltage |
750V |
Rated current |
1150A |
Rated rotating speed |
970r/min |
Rated efficiency |
93% |
Rated torque |
8033.7N.m |
Max. current |
1600A |
Max. torque |
12206.4N.m |
Max.rotating speed |
1500r/min |
Exciting |
series |
Insulation class |
H/H |
Cooling |
Forced air |
Protection class |
Plus pressure explosion-proof |
Mass |
3200Kg |
Storage

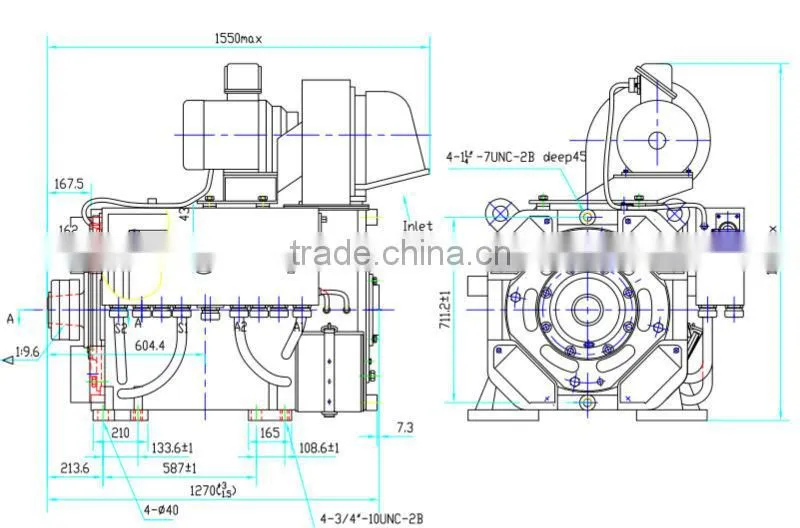

Drawing:
