GE752 Series Wound DC Traction Rig Drill Electric Motor
US$ 70,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LMMGROUP
Model Number:
LMMGROUP
Usage:
Other, Rig drill petroleum
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Chinese seaport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Oilfield Drilling Motor YZ08US$ 50,000 - 60,000MOQ: 1 Piece -
China Oilfield Drilling Motor YZ08AUS$ 50,000 - 60,000MOQ: 1 Piece
-
LMM Oilfield Drilling Motor YZ08US$ 50,000 - 60,000MOQ: 1 Piece
-
Oilfield DC Electric Drilling Motor YZ08AUS$ 50,000 - 60,000MOQ: 1 Piece
-
GE 752 Series Wound Electric Oilfield Drilling MotorUS$ 50,000 - 60,000MOQ: 1 Piece
Brand Name
LMMGROUP
Model Number
LMMGROUP
Usage
Other, Rig drill petroleum
Certification
CCC, CE
Type
Other, Drill Rig Motor
Torque
8033
Construction
Series Wound
Commutation
Brush
Protect Feature
Explosion-proof
Speed(RPM)
965
Continuous Current(A)
1150
Output Power
800
Voltage(V)
750
Efficiency
Other, 92.7%
Specifications
GE752 Series Wound DC Traction MotorContinuous rating: 750 vdc, 1150 amps, 970 rmp, 1000 hp
97% local oil field use it.

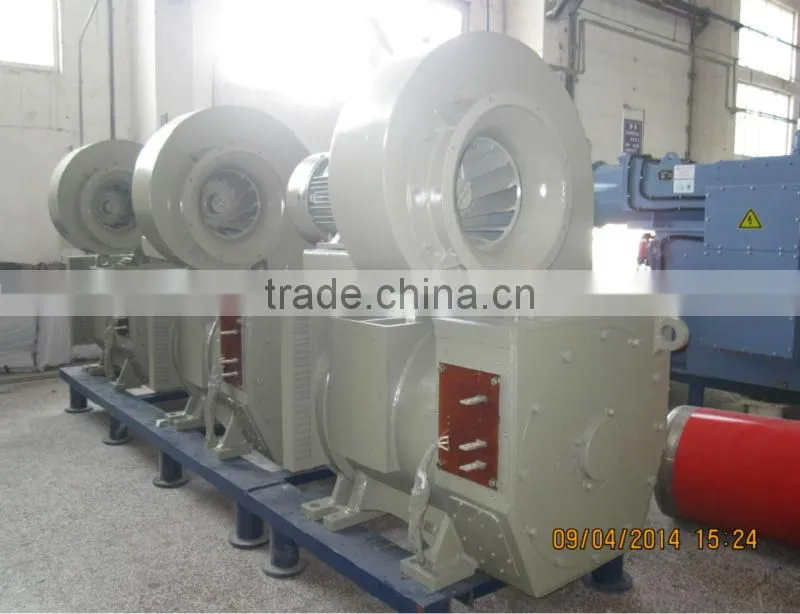

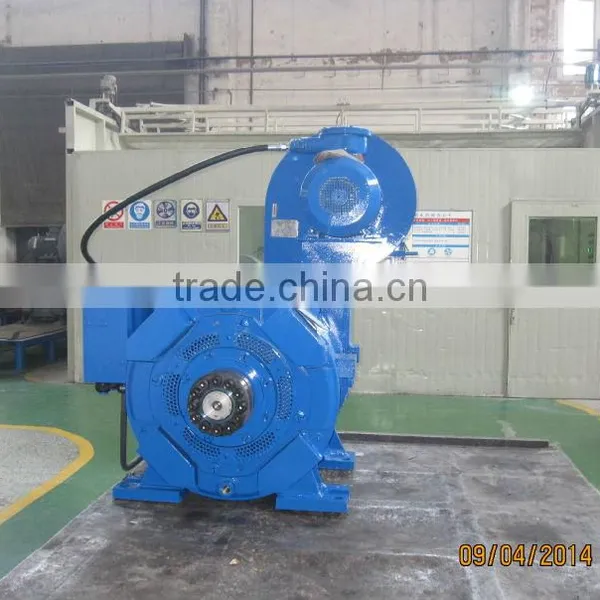

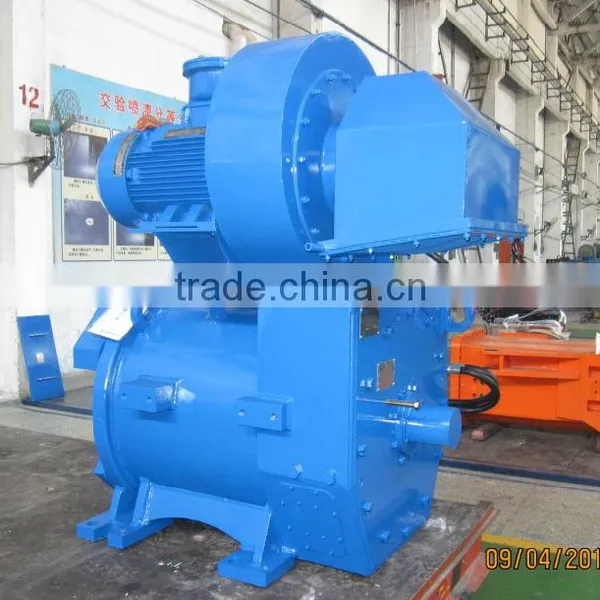

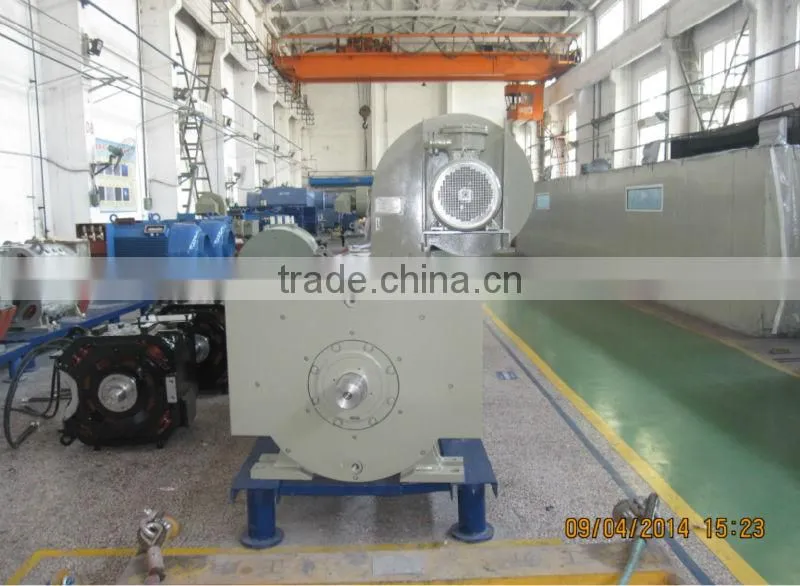

GE 752 Series Wound DC Traction Rig Drill Electric Motor
Character:
GE752 Series Wound DC Traction Motor
Continuous rating: 750 vdc, 1150 amps, 970 rmp, 1000 hp
97% local oil field use it.
plus pressure explosion-proof, high current, large torque, wide range constant power speed regulating, free maintenance, high universality, efficiency and reliability
Used for unitized mud pump, drawworks, rotary table.
Rated power |
800Kw |
Rated voltage |
750V |
Rated current |
1150A |
Rated rotating speed |
970r/min |
Rated efficiency |
93% |
Rated torque |
8033.7N.m |
Max. current |
1600A |
Max. torque |
12206.4N.m |
Max.rotating speed |
1500r/min |
Exciting |
series |
Insulation class |
H/H |
Cooling |
Forced air |
Protection class |
Plus pressure explosion-proof |
Mass |
3200Kg |
WORK SHOP

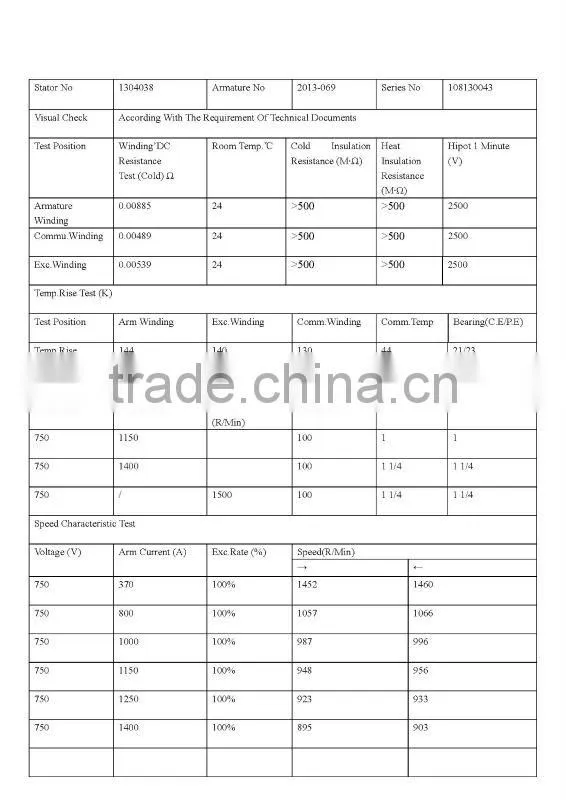

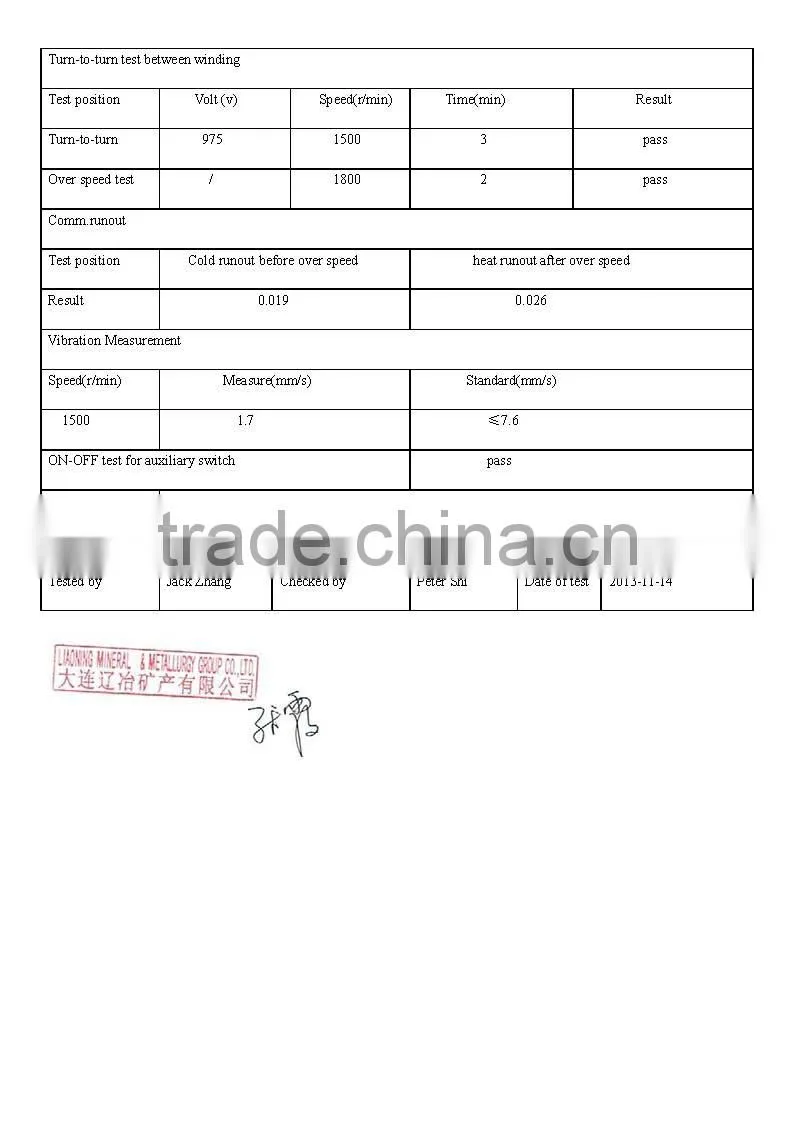

Test report
