Home > Electrical & Electronics > Electric Motor > DC Motor > 500KW AC Drill Mud Pump Motor

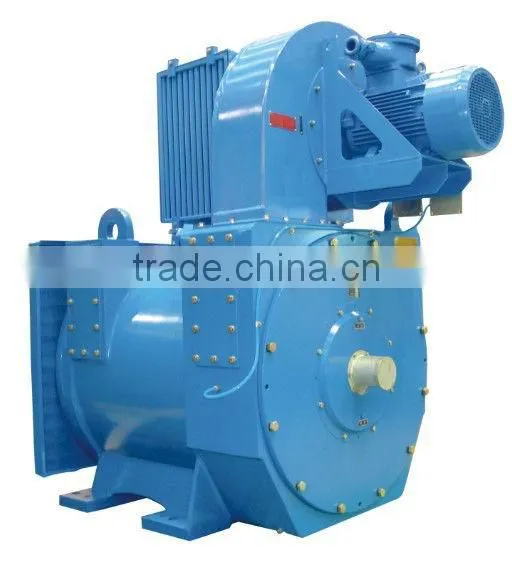

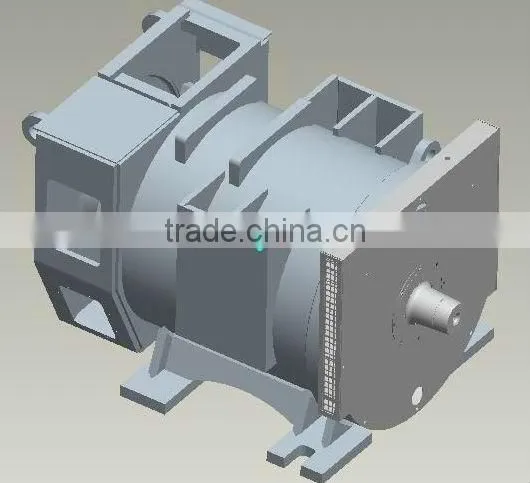

500KW AC Drill Mud Pump Motor

Name: 500KW AC Drill Mud Pump Motor
Brand: LMMGROUP
SKU: 138435101
Availability: InStock

500KW AC Drill Mud Pump Motor thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

LMMGROUP

Model Number:

LMMYJ23

Usage:

Other

Contact Supplier Request Quote Chat Now

Liaoning Mineral & Metallurgy Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Chinese seaport

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name LMMGROUP

Model Number LMMYJ23

Usage Other

Certification CCC

Type Tubular Motor

Torque 7234

Construction Series Wound

Commutation Brush

Protect Feature Explosion-proof

Speed(RPM) 1060

Continuous Current(A) 600

Output Power 500

Voltage(V) 600

Efficiency IE 1

LMMYJ23 Variable Frequency control speed asynchromous series drilling motors

LMMYJ23 cage frequency control speed asynchronous motor, adapt to AC-DC-AC electric-drive rig, apply to drilling rig rotary table, drawworks, mud pump, etc

installation dimension as international standard, Explosion-proof structure, with heater inside motor, pressure switch and pilot switch. Main character is high torque, wide speed in constant power district.

Type	Rated Power(kw)	Rated Voltage(V)	Rated Current (I)	Rated Speed (r/min)	Rated Frequency(Hz)	Rated Torque(N*M)	Contant Power Highest Speed(r/min)	Power Factor	Rated Efficiency	Insulation Grade	Weight (kg)
LMMYJ23	600	600	714	660	33.5	8683	1060	0.85	0.95	200	2650
LMMYJ23A	500	600	600	660	33.4	7234	1060	0.83	0.96	200	2650
LMMYJ23A3	600	400	1034	672	34	8536	1000	0.89	0.94	200	2650
