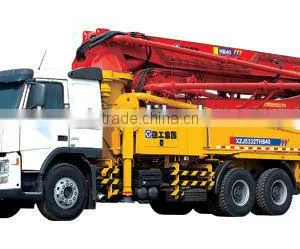

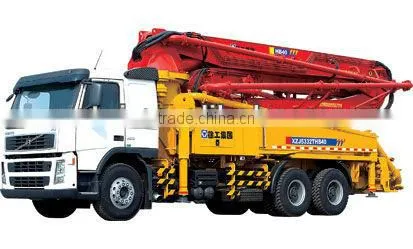

Help CenterMedium Size of XCMG Concrete Pump HB48-B-C-D
Related Products
-
Famous Brand Concrete Pump HB52 Widely Applied in High BuildingsUS$ 10,000 - 300,000MOQ: 1 Unit -
XCMG Concrete Pump With the Max Height 55.7mUS$ 10,000 - 300,000MOQ: 1 Unit
-
C Shape Purlin Cold Roll Forming MachineUS$ 10,000 - 30,000MOQ: 1 Unit
-
Dust Shield Forming Machine of China Brand High QualityUS$ 10,000 - 30,000MOQ: 1 Unit
-
Cold Roll Forming Machine Roof Forming Machine Cheap PriceUS$ 10,000 - 30,000MOQ: 1 Unit
Specifications
HB48-B-C-D concrete pump is the medium size of XCMG machine
Travel | |||||
Category |
Item |
Unit |
Parameter |
Parameter |
Parameter |
Chassis |
Model |
FM |
Actros4141 |
FY1EWV |
|
Manufacturer |
VOLVO |
Germany BENZ |
Hino |
||
Max. speed |
km/h |
94.8 |
85 |
85 |
|
Max. gradeability |
35% |
38% |
39.90% |
||
Min. turning diameter |
m |
24.605 |
25.9 |
24.4 |
|
Brake distance |
m |
≤10 |
≤10 |
≤10 |
|
Wheelbase |
mm |
1995+4405+1370 |
1700+4600+1350 |
1850+4605+1310 |
|
Tread (front/rear) |
mm |
2028/1837 |
2034/1804 |
2050/1855 |
|
Approach angle/departure angle |
. |
17/10 |
22/10 |
18.2/10 |
|
Min. clearance |
mm |
270 |
300 |
240 |
|
Tyre specification |
315/80R22.5 |
315/80R22.5 |
315/80R22.5 |
||
Engine |
Model |
D13 |
OM501LA.Ⅲ/17 |
E13CTL |
|
Output power |
kw/(r/min) |
294/1400~1800 |
300/1800 |
331/1800 |
|
Max. torque |
N.m/(r/min) |
2200/1050~1400 |
2000/1080 |
1912/1100 |
|
Displacement |
l |
12.8 |
11.946 |
12.913 |
|
Emission Standard |
Nation III GBⅢ |
Nation III GBⅢ |
Nation III GBⅢ |
||
Others |
Dimension (length x width x height) |
mm |
12632×2500×3995 |
12590×2500×3995 |
12515×2500×3995 |
Total vehicle weight |
kg |
41000 |
41000 |
40000 |
|
Fuel tank capacity |
l |
410 |
400 |
400 |
|
Fuel consumption per 100km |
l/100km |
40 |
40 |
40 |
|
Pumping operation | |||||
Pumping system |
Theoretical output(high pressure/low pressure) |
m3/h |
90/138 |
90/150 |
|
Concrete pumping pressure(high pressure/low pressure) |
Mpa |
13/8.7 |
13/8 |
||
Theoretical pumping times(high pressure/low pressure) |
/min |
18/27 |
13/21 |
||
Max. diameter of pumping concrete aggregate |
mm |
40 |
|||
Feeding height |
mm |
1540 |
|||
Placing boom |
Pumping slump range |
cm |
12-23 |
||
Reach height |
m |
48.1 |
|||
Reach depth |
m |
34 |
|||
Slewing radius |
m |
42.75 |
|||
Slewing angle |
. |
370 |
|||
1st boom stretch angle |
. |
90 |
|||
2nd boom stretch angle |
. |
180 |
|||
3rd boom stretch angle |
. |
180 |
|||
4th boom stretch angle |
. |
250 |
|||
5th boom stretch angle |
. |
250 |
|||
Outrigger span Overall outrigger span |
mm |
10500 |
|||
Front outrigger transverse span |
mm |
10450 |
|||
Rear outrigger transverse span |
mm |
10300 |
|||
Others |
Dosing type |
S valve |
S-valve |
||
Lubricating method |
Automatic lubrication |
Automatic |
|||
Controlling method |
Manual/remote control |
Manual/Remote control |
|||
Water tank capacity |
l |
600 |
|||
Max. pressure of water pump |
Mpa |
2 |
|||
