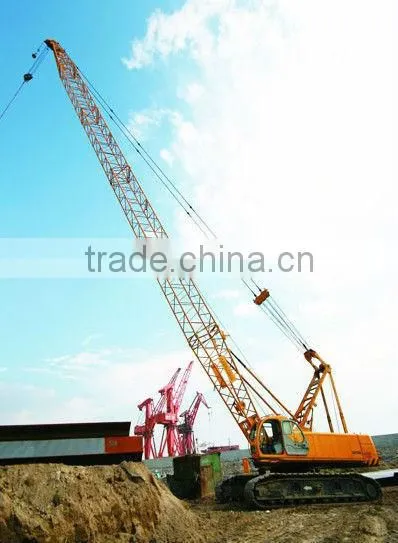

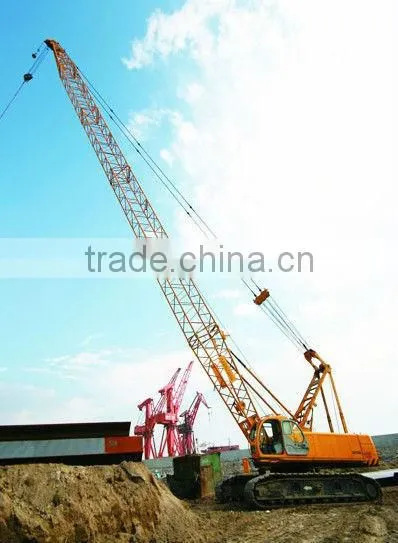

XCMG Crawler Crane QUY80E
Feature:
QUY80E crawler crane is developed for the demand of Europe markets on the base of our rich manufacturing experience.
The product has gained CE certificate, and it features superior hoisting performance, improved safety system, travel with load, 360° Slewing operation, and telescopic crawler. The length of main boom is 13~58m, and the length of fixed jib is 9~18m.
The open type pump controlled variable displacement system features constant power control; And the slewing system is pump controlled closed system, which features good control of fine motion, smooth and reliable movement.
4 lattice boom of light weight and large hoisting capability. With different boom combination, the boom length can be up to 58m, and the 52m main boom can match with 13.5m jib, the 49 m boom can match with 18m jib.
The crawler carrier and frame are plug-in connected for convenient assembly.
Black box recorder effectively monitors related operating parameters for the convenience of troubleshooting.
Light weight of single part for convenient transport; The weight of the largest part is less than 45 ton; And it is less than 28 ton when removing the crawler beam with the vertical outrigger cylinder.
With single pulley device installed at the boom, it can achieve quick hoisting with light load and improves work efficiency.
Parameter:
Items |
Unit |
Data |
Basic boom |
T |
80 |
Fixed jib |
T |
6.5 |
Max. load moment |
t/m |
7.5 |
Boom length |
M |
344 |
Boom working condition |
. |
13-58 |
Fixed jib working condition |
. |
30-80 |
Fixed jib length |
M |
9-18 |
Winch mechanism max single line speed(no load, at 5th layer) |
m/min |
120 |
Boom elevating mechanism max. single line speed(no load, at 1stlayer) |
m/min |
57 |
Max slewing speed |
r/min |
2 |
Max traveling speed |
Km/h |
1.2 |
Grade ability |
% |
30 |
Average ground pressure |
Mpa |
0.087 |
Engine power |
Kw |
183 |
Mass of the vehicle as a whole( including main hook block and 13m boom) |
T |
78 |
Max mass of single unit in travel configuration |
T |
28 |
Max dimension of single unit in travel configuration(L*W*H) |
m |
7.8*3.4*3.1 |
