CONSTRUCTION MACHINERY XCMG Truck Crane QY90K/XCMG/XGMA/SHANTUI/SDLG/ZOOMLION Truck Crane

Name: CONSTRUCTION MACHINERY XCMG Truck Crane QY90K/XCMG/XGMA/SHANTUI/SDLG/ZOOMLION Truck Crane
Brand: XCMG
SKU: 138400451

US$ 30,000 - 70,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Rated Lifting Moment:

3234 kN.m

Max. Lifting Load:

90t

Tianjin Votai Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Lifting Moment 3234 kN.m

Max. Lifting Load 90t

Max. Lifting Height 71m

Span 7.5/7.1 m

Brand Name XCMG

Model Number QY90K

After-sales Service Provided Engineers available to service machinery overseas

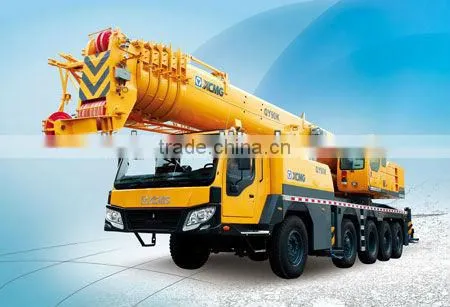

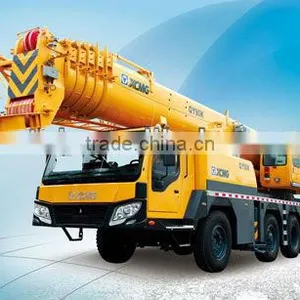

XCMG Truck Crane QY90K

Dimension	Unit	QY90K
Overall length	mm	14700
Overall width	mm	2800
Overall height	mm	3900
Weight
Total weight in travel	kg	53000
Front axle load (axle 1, 2, 3)	kg	9000/9000/13000
Rear axle load (axle 4, 5)	kg	13000/9000
Power
Engine model		TAD720VE OM457LAIII/9
Engine rated power	kW/(r/min)	174/2300 315/1900
Engine rated torque	N.m/(r/min)	845/1400 2100/1100
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	23
Min. ground clearance	mm	315
Approach angle	°	20
Departure angle	°	16
Max. grade ability	%	45
Fuel consumption for 100km	L	60
Main performance
Max. rated total lifting capacity	t	90
Min. rated working radius	m	3
Turning radius at turntable tail	m	4.51
Max. lifting torque	kN.m	3234
Base boom	m	12.3
Fully extended boom	m	55
Fully extended boom+ jib	m	71
Longitudinal outrigger span	m	7.5
Lateral outrigger span	m	7.1
Working speed
Boom luffing time	s	75
Boom full extension time	s	600
Max. swing speed	r/min	≥2
Max. speed of main winch (single rope) (no load)	m/min	≥120
Max. speed of aux. winch (single rope) (no load)	m/min	≥85
