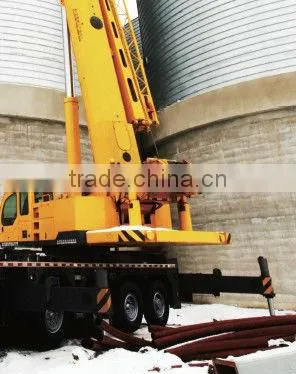

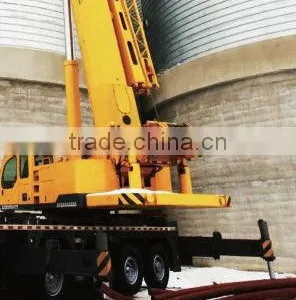

NEW XCMG 110 ton truck crane QY110K/XCMG/XGMA/SHANTUI/SDLG/ZOOMLION Truck Crane

Dimension

Unit

QY110K

Overall length

mm

14800/15270

Overall width

mm

3000

Overall height

mm

3920

Weight

Total weight in travel

kg

54900/58000

Front axle load (axle 1, 2, 3)

kg

7500/7500/8300(9000)

Rear axle load (axle 4, 5)

kg

12000(13000)12000(13000)/7600(8000)

Power

Engine model

OM906LA/OM460LA

Engine rated power

kW/(r/min)

162/2100   360/1800

Engine rated torque

N.m/(r/min)

1054/1500    2200/1300

Travel

Max. travel speed

km/h

80

Min. turning diameter

m

24

Min. ground clearance

mm

300

Approach angle

°

20

Departure angle

°

14

Max. grade ability

%

40

Fuel consumption for 100km

L

75

Main performance

Max. rated total lifting capacity

t

110

Min. rated working radius

m

3

Turning radius at turntable tail

m

4.51

Max. lifting torque

kN.m

4233

Base boom

m

12.8

Fully extended boom

m

58

Fully extended boom+ jib

m

76.1

Longitudinal outrigger span

m

7.56

Lateral outrigger span

m

7.6(5.2)

Working speed

Boom luffing time

s

60

Boom full extension time

s

600

Max. swing speed

r/min

1.9

Max. speed of main winch (single rope) (no load)

m/min

≥105

Max. speed of aux. winch (single rope) (no load)

m/min

≥105
