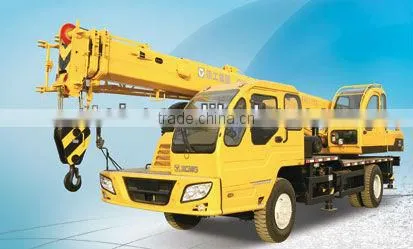

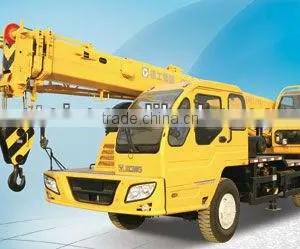

QY12B.5 XCMG TRUCK CRANE/XCMG/XGMA/SHANTUI/SDLG/ZOOMLION Truck Crane

Name: QY12B.5 XCMG TRUCK CRANE/XCMG/XGMA/SHANTUI/SDLG/ZOOMLION Truck Crane
Brand: XCMG
SKU: 138400423

US$ 20,000 - 60,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Rated Lifting Moment:

428 kN.m

Max. Lifting Load:

12 t

Tianjin Votai Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Lifting Moment 428 kN.m

Max. Lifting Load 12 t

Max. Lifting Height 29.4 m

Span 4.1 /4.9 m

Brand Name XCMG

Model Number QY12B.5

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Truck Crane
1) competitive price
2) high quality
3) professional after-sale serice

Product Description

Truck Crane
Parameter:

Dimension	Unit	QY12B.5
Overall length	mm	10200
Overall width	mm	2500
Overall height	mm	3200
Weight
Total weight in travel	kg	16000
Front axle load	kg	6000
Rear axle load	kg	10000
Power
Engine model		6C215,WD415.21,SC8DK230Q3
Engine rated power	kW/(r/min)	158/2200,155/2200,170/2200 790/1400,820/1400,830/1400
Engine rated torque	N.m/(r/min)	158/2200,155/2200,170/2200 790/1400,820/1400,830/1400
Travel
Max. travel speed	km/h	68,75
Min. turning diameter	mm	18000
Min. ground clearance	mm	260
Approach angle	°	21
Departure angle	°	10
Max. grade ability	%	≥26,≥28
Fuel consumption for 100km	L	30, 40
Main performance
Max. rated total lifting capacity	t	12
Min. rated working radius	m	3
Turning radius at turntable tail	m	2.6
Max. lifting torque	kN.m	428
Base boom	m	9.3
Fully extended boom	m	23
Fully extended boom+jib	m	29.4
Longitudinal outrigger span	m	4.1
Lateral outrigger span	m	4.9
Working speed
Boom luffing time	s	50
Boom full extension time	s	75
Max. swing speed	r/min	2.6
Main winch full load/no load (single rope)	m/min	110

Packaging & Shipping

Packing	1.Standard packing 2.Pack as requested
Payment term	Western Union, T/T, Money gram, 30% deposit in advance, balance be paid before shipment
Unit price	Contact us for the latest price directly
Delivery time	Within 10 working days(depand on quantities)
