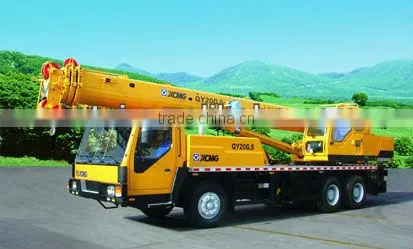

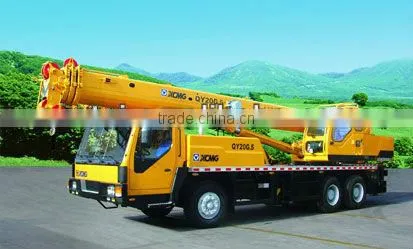

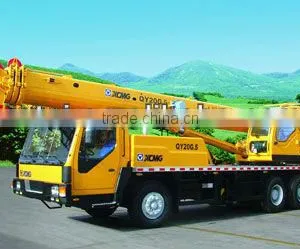

QY2OG.5 XCMG TRUCK CRANE/XCMG/XGMA/SHANTUI/SDLG/ZOOMLION Truck Crane

Name: QY2OG.5 XCMG TRUCK CRANE/XCMG/XGMA/SHANTUI/SDLG/ZOOMLION Truck Crane
Brand: XCMG
SKU: 138400431

US$ 20,000 - 50,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Rated Lifting Moment:

860 kN.m

Max. Lifting Load:

20 t

Tianjin Votai Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Lifting Moment 860 kN.m

Max. Lifting Load 20 t

Max. Lifting Height 42.12 m

Span 4.97 / 5.4 m

Brand Name XCMG

Model Number QY20G.5

After-sales Service Provided Engineers available to service machinery overseas

Parameter

Dimension	Unit	QY20G.5
Overall length	mm	12400
Overall width	mm	2500
Overall height	mm	3320
Weight
Total weight in travel	kg	26020
Front axle load	kg	6900
Rear axle load	kg	19120
Power
Engine model		SC8DK260Q3 WD615.327
Engine rated power	kW/(r/min)	192/2200 198/2200
Engine rated torque	N.m/(r/min)	1100/1400 1150/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	20
Min. ground clearance	mm	275
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	24
Fuel consumption for 100km	L	≈35
Main performance
Max. rated total lifting capacity	t	20
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.385
Max. lifting torque	kN.m	860
Base boom	m	10.06
Fully extended boom	m	32.76
Fully extended boom+jib	m	42.12
Longitudinal outrigger span	m	4.97
Lateral outrigger span	m	5.4
Working speed
Boom luffing time	s	75
Boom full extension time	s	95
Max. swing speed	r/min	3
Max. speed of main winch (single rope)	m/min	100
Max. speed of aux. winch (single rope)	m/min	100
