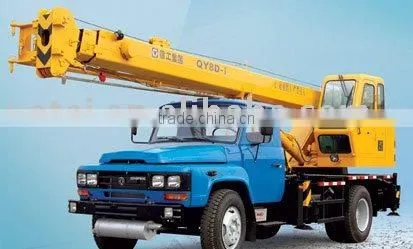

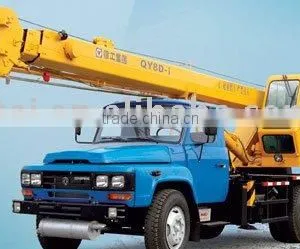

Good Quality Mobile Truck Cranes QY8D With Best Price

Name: Good Quality Mobile Truck Cranes QY8D With Best Price
Brand: XCMG
SKU: 138400419

US$ 1,000 - 30,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Rated Loading Capacity:

10000

Rated Lifting Moment:

235

Tianjin Votai Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TianJin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 10000

Rated Lifting Moment 235

Max. Lifting Load 8000

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QY8D

Specifications

one stop service
competitive price
comprehensive after ---sale services and spare parts

Classificatory	Item		Unit	Parameter
Outline dimension	Overall length		mm	9080
	Overall width		mm	2400
	Overall height		mm	3180
	Track	Front wheel	mm	1810
	Track	Rear wheel	mm	1800
	Wheel base		mm	3950
Mass	Total mass in travel state		kg	10000
	Axle load	Front axle load	kg	2600
	Axle load	Rear axle load	kg	7400
Travel performance	Travel speed	Max. travel speed	km/h	75
	Travel speed	Min. travel speed	km/h	2.5
	Turning diameter.	Min. turning diameter	m	16
	Turning diameter.	Min. turning diameter at boom tip	m	18
	Max. grade-ability		%	28
	Longitudinal passing radius		m	4.35
	Lateral passing radius		m	0.869
	Min. ground clearance		mm	260
	Approach angle		(°)	29
	Departure angle		(°)	11
	Braking distance (30km/h on asphalt or concrete road)		m	≤8
Power	Engine model			YC4110ZLQ
	Engine output		kW/r/pm	105
	Engine torque		N.m/r/pm	402
