Specifications
13000Guass Magnetic separator machinery1.High separating effeciency
2. Guarantee: 1 year
3.Separating weak magnetic materia

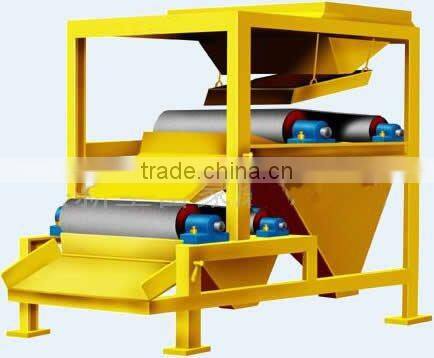

Magnetic sand separator machine
Features:
Magnetic rolls available in 75 and 300mm diameters with widths up to 1000mm and magnetic field 13,000 Gauss. A 1 horsepower, variable speed DC/AC geared motor (drive adjustable from 0 to 150 RPM) drives the roll. Vibration feeder with control is provided for feeding. Abrasion resistant endless conveyor belts with a thickness of 0.3mm are provided for the machine.
Applications:
This machine is most useful in various types of industrial minerals applications, such as the beneficiation of abrasive, refractory and ceramic raw material (i.e., alumina, silica, carbide, magnesite, quartzite, etc), ultra high purity quartz cleaning, graphite upgrading, manganese ore beneficiation, bauxite upgrading, diamond ore beneficiation, selective separation of garnet / ilmenite / rutile, zircon, beneficiation of iron ores, recovery of metals from slag, removal of iron silicates from limestone or magnesite, glass raw materials cleaning silica sand, quartz, feldspar, dolomite, etc.
Technical Parameters
Specifications | 2-RGC75 | 2-RGC100 | 2-RGC120 | 2-RGC150 | 2-RGC200 | 2-RGC300 |
Roller Diameter(mm) | 75 | 100 | 120 | 150 | 200 | 300 |
Roller Length (mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
Roller Quantity | 2 | 2 | 2 | 2 | 2 | 2 |
Roller Field Intensity(t) | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
Capacity(t/h) | ~2.0 | ~2.5 | ~5.0 | ~10 | ~15 | ~20 |
Mineral Particle Size (mm) | 0.1-10 | 0.1-10 | 0.1-10 | 0.1-15 | 0.1-15 | 0.1-15 |
Maximum Non-knockdown part (kg) | 100 | 120 | 135 | 150 | 200 | 250 |
Working System | 300 days annually,24 hours everyday | |||||
Motor Power(KW) | 2×0.75 | 2×0.75 | 2×0.75 | 2×0.75 | 2×1.1 | 2×1.1 |
Weight (kg) | 1000 | 1200 | 1350 | 1500 | 1750 | 2000 |
Size(L×W×H) (mm) |
|
|
|
|
|
|
