DJH-B Automatic Timer Safety Gas 90 Minutes Shut off Valve

DJH-B Automatic Timer Safety Gas 90 Minutes Shut off Valve thumbnail-1
DJH-B Automatic Timer Safety Gas 90 Minutes Shut off Valve thumbnail-2
DJH-B Automatic Timer Safety Gas 90 Minutes Shut off Valve thumbnail-3
DJH-B Automatic Timer Safety Gas 90 Minutes Shut off Valve thumbnail-4
DJH-B Automatic Timer Safety Gas 90 Minutes Shut off Valve photo-1
DJH-B Automatic Timer Safety Gas 90 Minutes Shut off Valve photo-2
DJH-B Automatic Timer Safety Gas 90 Minutes Shut off Valve photo-3

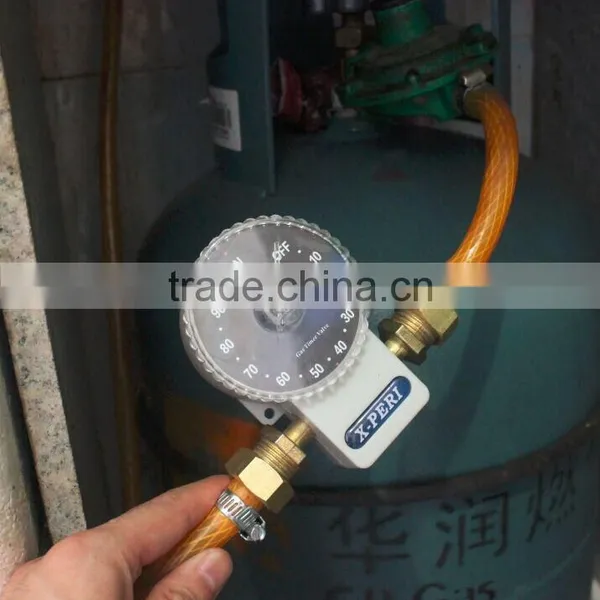

DJH-B Automatic Timer Safety Gas 90 Minutes Shut off Valve photo-4
US$ 13 - 30 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other
Pressure:
Other, Medium Pressure, medium
Contact Supplier Request Quote Chat Now
Henan Light Industrial Products Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dongdu Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Other
Pressure Other, Medium Pressure, medium
Power Other, Mechanical
Material Other
Temperature of Media Medium Temperature
Media Gas
Port Size 9.5mm Hose Connection
Model Number DJH-B
Brand Name X-PERI

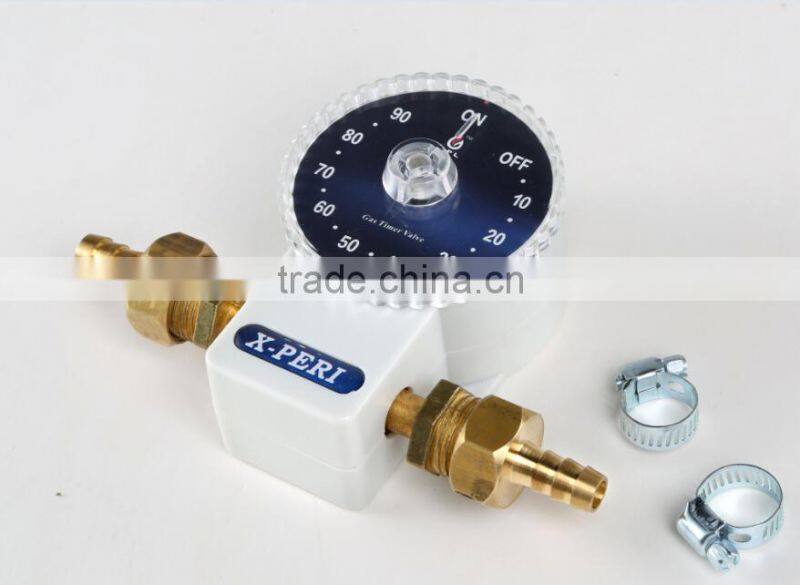

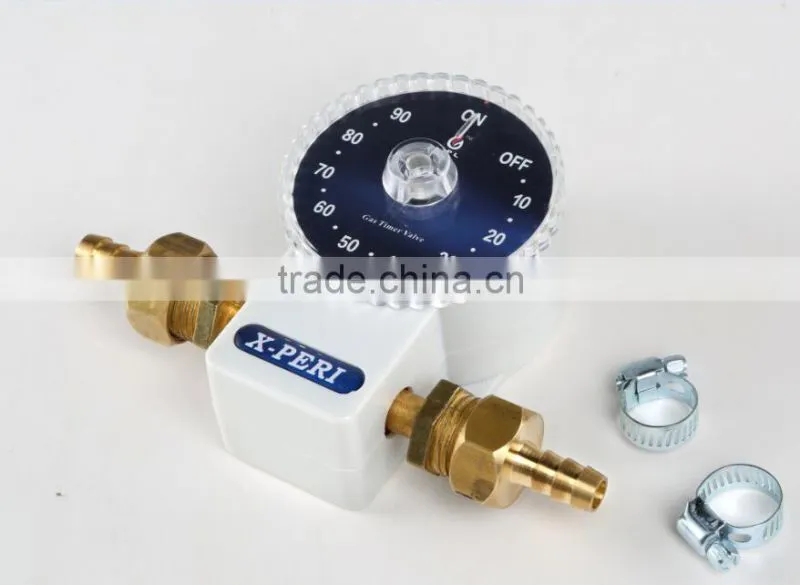

DJH-B automatic timer safety gas shut off valve



X-peri Automatic Timer Safety Gas Shut off Valve has passed the following tests to that it can ensure safe operation:CQC

in China,UL in America,KEMA in Netherlands, VED in German, TUV in German.



Product Description



NO.

Items

Unit

Technical parameter

1

Time limited

minute

[1,90]

2

Applicable Mediums

//

pipelined gas,LPG,CNC

3

Applicable pressure

Kpa

[0.8,3]

4

MAWP

Kpa

10

5

Rate of working flow

M2/H

1.2

6

Connector A

//

12.7external thread

Connector A

//

9.5mm Hose Connection

7

Rotary Angle of the Rotating disk

degree

270

8

 Working Temperature

degrees Celsius

[-10,45]



Product description



1. Working temperature: -10℃~45℃ ;



2. Switch the knob to “ON” (Normal Open) when timing is not needed.



3.  If the timing is less than 10 minutes, firstly, turn the knob to the location over 10 minutes and then turn back to the needed

     timing location;



4.  When the timing valve is OFF, remember to turn off the gas stove.



5.  To avoid accidents, users must not dismantle this product.



Maintenance


1. While cleaning, please use soft and wet cloth to softly scrub. It is strictly prohibited to spill water or cleaning fluid into the

   timing valve;



2. It is strictly prohibited to check the air leak with open fire;



3. The service life of this product is three years and it should be replaced in time upon the expiration.

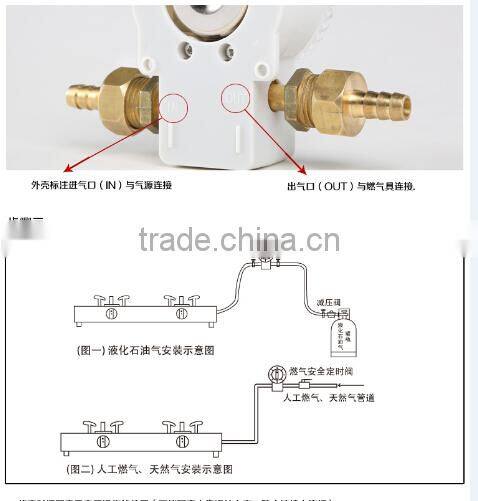

Circuit diagram
DJH-B automatic timer safety gas 90 minutes shut off valve

1. On the back of this product’s outer casing, marked air inlet and outlet ports. The air inlet port is connected to air source and

    the outlet port is connected to the gas appliance (refer to Chart 1 and Chart 2);



2. When installing, firstly shut off the main gas valve in front of the gas meter or the valve of a liquefied gas bottle;



3. Connect the air inlet and outlet ports of timing valve respectively with inlet and outlet rubber hoses or gas pipeline, then use

    the hoop to tighten the rubber hoses;



4. Check and ensure that junction and rubber hose are airtight. Inspection method: turn off the gas stove and open the gas

   valve; put a little soap liquid on the junction of timing valve and the rubber hose of two ends, if there is no bubbles, it is airtight,

   otherwise, it is leaking.



5. Put the timing valve at a place convenient for operation(But it cannot be fixed on the top close to the burner, in case of being

   burned by stove fire),  Switch the timing knob to “ON”, then turn on the gas stove.observe whether it is normal combusting

   or not. The timing valve can be used only if there is no abnormal combustion.



Applicable Scope



It is applied to all kinds of household gas stoves and heaters that use pipelined gas, LPG and CNG,e.g:


1.Kitchen with kitchen utensils and appliances



2.Heater with pipelined gas,LPG,CNC



3.Bathroom with gas stoves and heaters



4.Restroom with heater



5. Washroom with gas stoves and heaters



6.Barbecue grill with gas stoves and heaters

Packaging & Shipping



Paper packing,  and the box dimension is 10cmx10cmx6.2cm /3.94x3.94x1.61"



also can be packed customized with customer's requestment.

DJH-B automatic timer safety gas 90 minutes shut off valve
DJH-B automatic timer safety gas 90 minutes shut off valveDJH-B automatic timer safety gas 90 minutes shut off valveDJH-B automatic timer safety gas 90 minutes shut off valve

Cetifications:

 DJH-B automatic timer safety gas 90 minutes shut off valve
