DJH-B mechanical automatic timer safety gas 90 minutes shut off valve
- 10000 Set / Sets per Month
- Dongdu Shenzhen
- D/P D/A Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Other | Pressure: | Other, Medium Pressure, medium |
Power: | Other, Mechanical | Material: | Other | Temperature of Media: | Medium Temperature |
Media: | Gas | Port Size: | 9.5mm Hose Connection | Model Number: | DJH-B |
Brand Name: | X-PERI |
Product Description

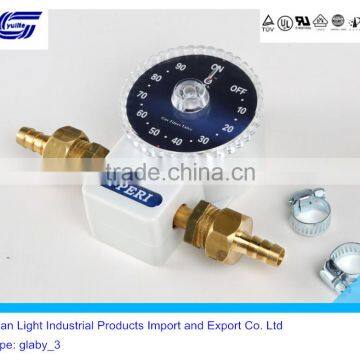

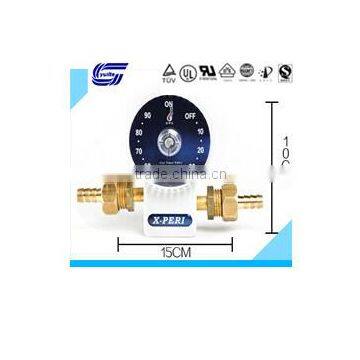

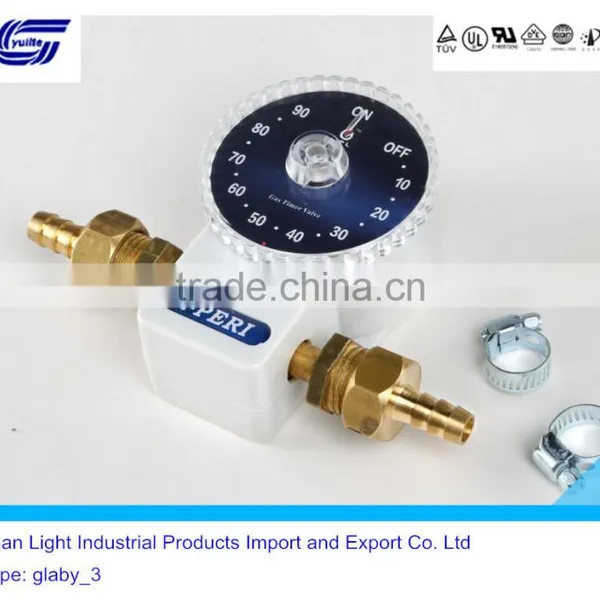

DJH-B mechanical automatic timer safety gas shut off valve
X-peri Automatic Timer Safety Gas Shut off Valve has passed the following tests to that it can ensure safe operation:CQC
in China,UL in America,KEMA in Netherlands, VED in German, TUV in German .
NO. | Items | Unit | Technical parameter |
1 | Time limited | minute | [1,90] |
2 | Applicable Mediums | // | pipelined gas,LPG,CNC |
3 | Applicable pressure | Kpa | [0.8,3] |
4 | MAWP | Kpa | 10 |
5 | Rate of working flow | M2/H | 1.2 |
6 | Connector A | // | 12.7external thread |
Connector A | // | 9.5mm Hose Connection | |
7 | Rotary Angle of the Rotating disk | degree | 270 |
8 | Working Temperature | degrees Celsius | [-10,45] |
Product description
1. Working temperature: -10℃~45℃ ;
2. Switch the knob to “ON” (Normal Open) when timing is not needed.
3. If the timing is less than 10 minutes, firstly, turn the knob to the location over 10 minutes and then turn back to the needed
timing location;
4. When the timing valve is OFF, remember to turn off the gas stove.
5. To avoid accidents, users must not dismantle this product.
Maintenance
1. While cleaning, please use soft and wet cloth to softly scrub. It is strictly prohibited to spill water or cleaning fluid into the
timing valve;
2. It is strictly prohibited to check the air leak with open fire;
3. The service life of this product is three years and it should be replaced in time upon the expiration.
1. On the back of this product’s outer casing, marked air inlet and outlet ports. The air inlet port is connected to air source and
the outlet port is connected to the gas appliance (refer to Chart 1 and Chart 2);
2. When installing, firstly shut off the main gas valve in front of the gas meter or the valve of a liquefied gas bottle;
3. Connect the air inlet and outlet ports of timing valve respectively with inlet and outlet rubber hoses or gas pipeline, then use
the hoop to tighten the rubber hoses;
4. Check and ensure that junction and rubber hose are airtight. Inspection method: turn off the gas stove and open the gas
valve; put a little soap liquid on the junction of timing valve and the rubber hose of two ends, if there is no bubbles, it is airtight,
otherwise, it is leaking.
5. Put the timing valve at a place convenient for operation(But it cannot be fixed on the top close to the burner, in case of being
burned by stove fire), Switch the timing knob to “ON”, then turn on the gas stove.observe whether it is normal combusting
or not. The timing valve can be used only if there is no abnormal combustion.
Applicable Scope
It is applied to all kinds of household gas stoves and heaters that use pipelined gas, LPG and CNG,e.g:
1.Kitchen with kitchen utensils and appliances
2.Heater with pipelined gas,LPG,CNC
3.Bathroom with gas stoves and heaters
4.Restroom with heater
5. Washroom with gas stoves and heaters
6.Barbecue grill with gas stoves and heaters

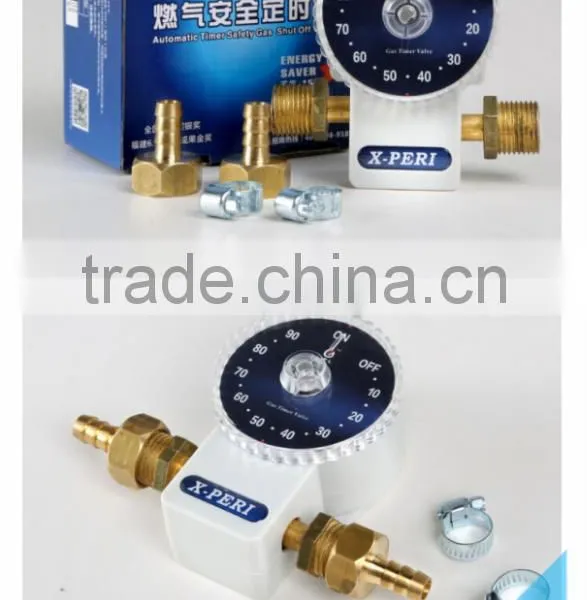

Paper packing, and the box dimension is 10cmx10cmx6.2cm /3.94x3.94x1.61"
also can be packed customized with customer's requestment.
