Home > Products > Teflon Heat Resistant Products > Nitto packing tape 973UL-S T0.13mm*W50mm*L10m

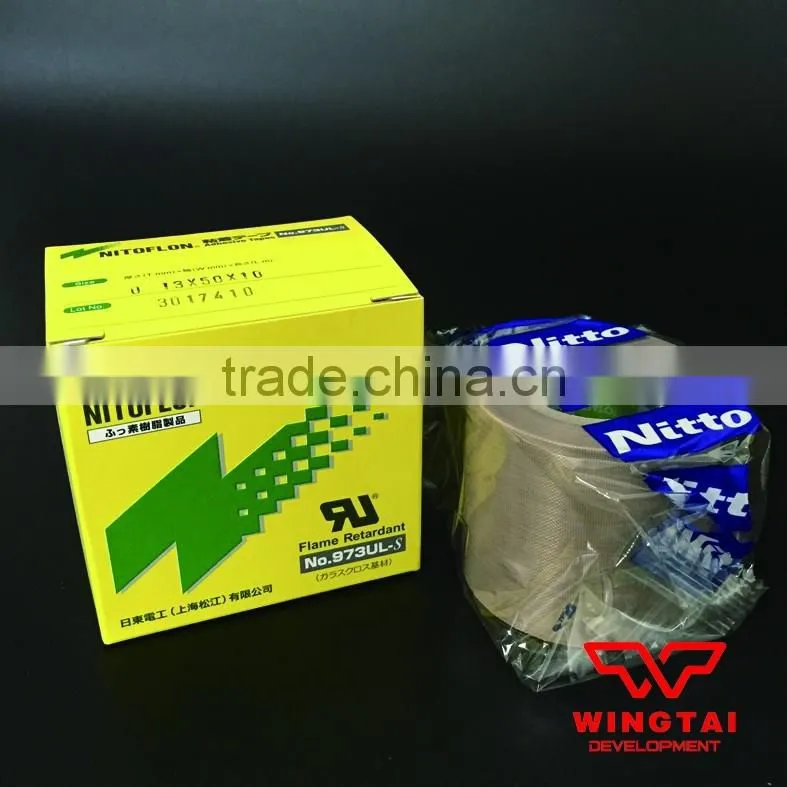

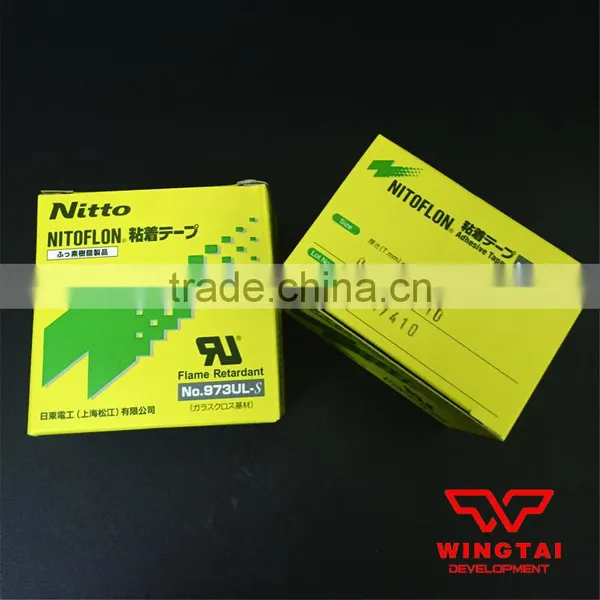

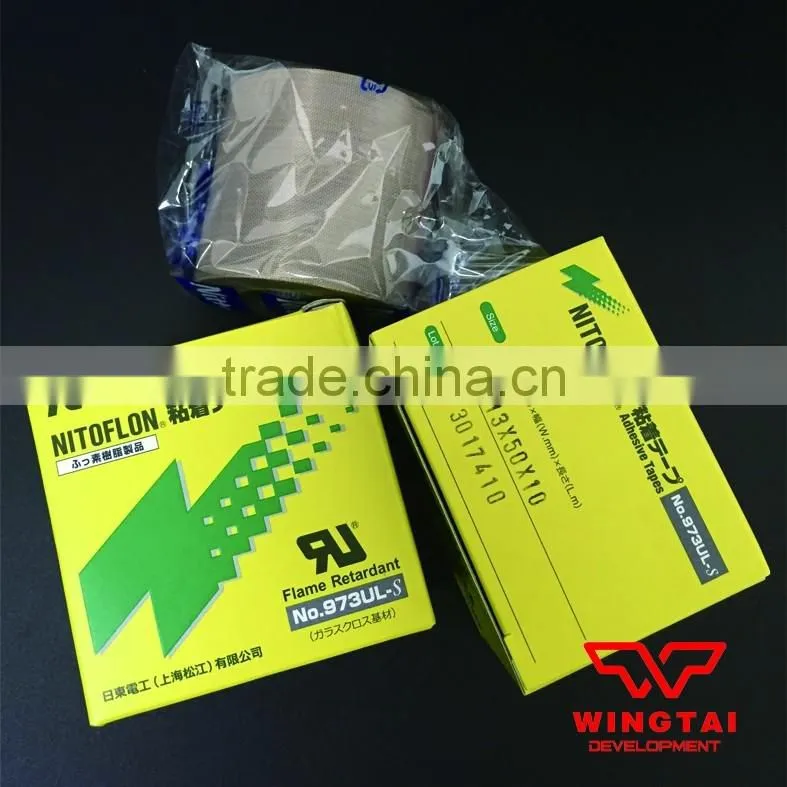

Nitto packing tape 973UL-S T0.13mm*W50mm*L10m
- 15000 Roll / Rolls per Month
- Shantou / Shenzhen
- Credit Card
- Fiber tape in 0.14mmx1020mm with freely cutting service
- Fibergalss tape
- Glossy: 2801 Photo protection film Cold lamination film for photos Roll film
- Matte: 2803 High quality protection film Cold lamination film for wedding photos
- Leather: 2804 Digital photo protection film Cold laminated Cold lamination film
- Canvas: 2808 Lamination film factory Material for lab and studio Frame material
Product Details
Material: | PTFE | Use: | Masking | Adhesive Side: | Single Sided |
Adhesive Type: | Hot Melt, Pressure Sensitive | ||||
Design Printing: | No Printing | Place of Origin: | Japan | Brand Name: | Nitto |
Model Number: | 973UL-S(0.13*50*10) |
Product Description
Japan NITTO DENKO P.T.F.E Resin Product NITOFLON Adhesive Tapes
Nitto packing tape 973UL-S (T0.13mm*W50mm*L10m)
Product Description
Specification | |||
| Color | Beige | |
Spec. | T0.13mm*W50mm*L10m | ||
Short-term heat resistance | 300℃ | ||
Continuous heat resistance | -60~260℃ | ||
Adhesive Strength | 25℃ | 6.8 N/19mm | |
100℃ | 3.2 N/19mm | ||
150℃ | 2.2 N/19mm | ||
Tensile Strength | 240 N/19mm | ||
Unwinding Force | 5.9 N/19mm |
Features:
- Environmentally friendly products.
- Has a good off models and smoothness.
- Has good heat retention and dimensional stability.
- Nonadhesive surface with electrical characteristics, heat resistance, weather resistance, chemical resistance, water resistance (waterproof), low coefficient of friction, adhesion and other four non-fluorinated ethylene resin possess good properties.
Usage:
• For the heat-resistant masking
• For heat sealing
• For the heat-resistant electrical insulation
Product Information
Overview:
Used in glass fiber brie infiltration tetra fluoride ethylene resin (PTFE) dispersion solution formed after the firing of the material substrate. The single-sided tape to the surface treatment, coated with silicone-based adhesive with excellent heat resistance and mechanical strength.
More Specification
Model | Color | Substrate | Short-term heat resistance(℃) | Continuous use temperature(℃) | ||
Thickness(mm) | Width(mm) | Length(m) | ||||
No.973UL-S
| Beige
| 0.13
| 10 | 10
| 300℃
| -60~260℃
|
13 | ||||||
15 | ||||||
19 | ||||||
25 | ||||||
38 | ||||||
50 | ||||||
75 | ||||||
100 | ||||||
300 | ||||||
600 | ||||||
No.973UL
|
Beige
| 0.18 | 19 | 10 | 300℃ | -60~260℃ |
25 | ||||||
50 |
Technical Data
Item | No.973UL-S | No.973UL | ||
Thickness (mm) | 0.13 | 0.15 | 0.18 | |
Tensile strength (N/19mm) | 240 | 590 | 530 | |
Adhesive strength (N/19mm) | 25°C | 6.8 | 9.0 | 9.7 |
100°C | 3.2 | 3.9 | 4.7 | |
150°C | 2.2 | 2.6 | 3.0 | |
Unwinding force(N/19mm) | 5.9 | 5.9 | 7.5 | |
Temperature range(℃) | -60~260 | |||
Test Method | Compatible with JIS C 2107 |
